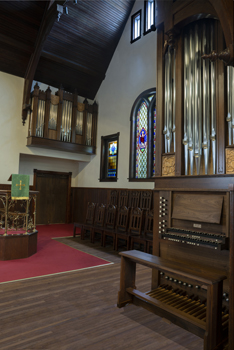

M. P. Rathke Opus 12

M. P. Rathke, Inc., Cincinnati, Ohio; Grace Episcopal Church, Carthage, Missouri

From the builder

When Father Steven Wilson, rector of Grace Church, first invited us to submit a proposal for a new pipe organ, he had my undivided attention from the start. Father Steve spoke of a historic 1869 Episcopal church with a distinguished tradition of liturgy and music, as well as a longtime focus on drama and the visual arts. Subsequent conversations led to the commissioning of our Opus 12, whose future arrival both church and organ builder looked forward to with fine enthusiasm.

First, though, we were challenged with designing a successful organ for a dry acoustic, in a space as compact and intimate as it is beautiful, and likely utilizing a somewhat unorthodox placement. Father Steve quipped that our reputation for engineering 10 lbs. to fit the proverbial 5-lb. bag would surely be tested here, and his words were to prove prescient.

Precisely where the organ would go was our first decision. The existing instrument, a decaying pipe/electronic combination whose metal pipework was nonetheless of extraordinary quality, if not voiced to its full potential, included a set of deep flower box-style windchests hung from the end wall of a shallow transept (see photo: “Removing pipework”). This singular arrangement did locate pipework high in the room, thus engaging the ceiling and helping carry sound out into the nave; it also created rather a claustrophobic atmosphere, looming darkly over choristers below, blocking light from a trio of high windows above, and literally overshadowing the transept. My first reaction—which some might consider unusual for an organbuilder—was “Father Steve, whatever we do, we’ve got to uncover those windows and get those pipes down off the wall.” Easily enough said, of course, but then where could they go, with floor space already at a premium?

The building helped make that decision for us. There was really only one location suitable for the choir in this small church: the transept, where the choir already sat. And the organ clearly needed to be close to the choir, not only for musical reasons, but also so that organist/choirmaster Peter Frost could continue to conduct from the console. Father Steve, himself a talented chorister, saw potential benefits in my suggestion that the main organ case be located per Sketch A, with the attached keydesk oriented as shown.

This is admittedly an unusual blind-corner placement for any significant portion of a pipe organ, let alone the sole two manual divisions, whose resources generally speak to better advantage directly into the main body of the church. But in this case, because the room is quite dry and because we had no opportunity to place manual pipework behind a façade fronting the swell shades—there simply wasn’t enough available depth without crowding the window—we were keen to obtain maximum blend by any legitimate means. It occurred to me that if we allowed sound to mix first in the transept, then reflect once off the front wall, both blend and projection might be served. And that’s exactly what happened. Early listening during finish voicing disclosed the uncanny illusion that all sound was actually emanating from the front walls (somehow!), producing a clarity and presence in the nave that both puzzled and pleased us.

Grace Church’s lack of acoustical resonance also informed Opus 12’s size and specification, for this is certainly a good-sized organ for a relatively small room. Although sound generally gets around well enough, music doesn’t really bloom, and appreciable reverberation is basically nonexistent. Never having previously designed and voiced for a space like this, I went back to the stately Hook & Hastings instruments I knew, played, and admired during my apprenticeship with C. B. Fisk, Inc.
H & H’s general approach, which greatly informed our work at Grace Church, was to saturate the space with plenty of rich fundamental tone, undergirded by manual doubles (here, one in each department) and supported by a generously scaled and winded Pedal. Reeds would almost invariably be on the smoother side, upperwork colorful but by no means aggressive.

Guided by Dr. Susan Marchant of nearby Pittsburg State University, the church settled on a two-manual, 24-stop specification with suspended mechanical key action, apart from the largest bass pipes, which are winded via conventional electro-pneumatic chests. Most of these large pipes reside in the so-called “Attic Pedal” division behind a speaking tin façade fronting a shallow chamber with limited headroom. Most interior Attic Pedal pipes are thus placed horizontally, as are notes #1–19 of the Great 16′ Bourdon, the latter located beneath the choir platform. The full-length 16′ Double Trumpet stands within the main case.

The pipework has truly eclectic origins. From the previous instrument we retained six choice ranks of 30% tin, superbly crafted by Stinkens, the renowned Dutch pipemaking firm. (The original voicers having really done no meaningful voicing, we were able to start essentially from scratch with fresh, unvoiced pipes.) Several lovely stops of pine, poplar, and oak were acquired from a church that was set to be demolished in a neighboring town. The remainder of Opus 12’s pipework is new.

Casework design was the result of a close and lengthy collaborative effort between Father Steve and me. Happily, both of us wished the organ to look as if it had always been there. The results reflect Father Steve’s and my firm conviction that, where possible, an organ’s casework and ornamentation should be in congenial dialogue with the room’s architecture and appointments.

Carvings were designed and executed by noted Boston-area sculptor Morgan Faulds Pike, who wrote the following in preparation for the organ’s dedication:

The carved white oak panels—above the console, above the swell shades, and in the attic pedal case—represent flora and fauna which symbolically resonate with the church interior, the city of Carthage, and, most endearingly, Father Steven Wilson’s specific requests for a carefully camouflaged “sparrow and her nest” (Psalm 84:3) and “somewhere, a little mouse.” Our design process was a stimulating collaboration from which Father Steve’s wishes and my design drawings produced something more like a working friendship than a design challenge.

The Alpha and Omega shades on the Attic Pedal directly relate to other A & Ω carvings in the room. The maple and oak leaf designs are representative of Carthage, Missouri (“The Maple Leaf City”) and the organ’s quartered oak casework, respectively. Above the console two panels, one depicting a Marian rose, the other the ancient Holly and Ivy of pre-Christian ritual, echo motifs that appear in more simplified forms elsewhere in the church. The designs evolved in keeping with Father Steve’s desire for the case to have everything to do with the church interior and the greater community; I must say here that they also reflect his own remarkable and unselfconscious aura of holiness. He wished the sparrow and her nest to be discretely perched within one of the swell façade shades, to be discovered only after some study. We based the sparrow on a North American song sparrow that was nesting at the time in a bush beneath Father Steve’s window. Her beautiful song might just allude to the choir singing beneath her perch above the swell louvres. The mouse, “a creature of great personal valor,” is a cheeky surprise, clinging to the lower frame of an otherwise-smooth front pipe shade.

This organ has been at once the most difficult and most rewarding we’ve ever undertaken, owing partly to the fact that so much of it is densely woven into the fabric of this lovely historic structure, one where nothing is truly level, plumb, or square. We thank the parishioners and staff of Grace Church for their unswerving support, friendship, and patience during installation and finish voicing. We sincerely hope our Opus 12 will serve this remarkable church for years to come.

—Michael Rathke

Builders of the organ

Saskia Croé

Rebecca Madison

Lauren McAllister

Stella O’Neill

Michael Rathke

Caleb Ringwald

Jefimija Zlatanovic



We are deeply grateful to the following individuals and organizations:

†The Reverend Steven Wilson (project leadership)

Dr. Susan Marchant (consultation)

Brad White (technical assistance)

Peter Frost (onsite voicing assistance)

Paige Rhymer (onsite voicing assistance)

A. J. Rhymer (onsite voicing assistance)

Will Endicott (onsite voicing assistance)

Jerin Kelley (onsite voicing assistance)

Chris Church (onsite voicing assistance)

Morgan Faulds Pike (carvings)

Nami Hamada (tonal finisher)

Casey Dunaway (tonal finisher)

Vladimir Vaculik (solid state installation)

Patrick J. Murphy & Associates (casework)



Diagram and photo credits

All photographs by Regina Newport except as noted:

Sketch A – Michael Rathke

Removing pipework – John Hacker, The Joplin Globe (used by permission)



From the organist/choirmaster

It was my great fortune to accept the position of organist/choirmaster at Grace Episcopal Church in 2017, just as the organ committee was reviewing proposals for a new instrument. Happily, the group needed little persuasion to select M. P. Rathke, Inc., to build their new organ. (By coincidence, I had just completed a summer internship in the Rathke workshop.) We worked with the builder to create a stoplist to fulfill a variety of needs: accompanying the choir, supporting congregational singing, and convincingly playing the repertoire, all while occupying a decidedly small space.

In addition, the 1890s nave would undergo significant cosmetic changes that, while uncovering original details of the building, might potentially be jarring for parishioners. Melinda Wilson, a gifted artist, fashioned an elaborate and clever gingerbread organ and choir layout based on the contract drawings so church-goers had an early 3-D explanation of the new look they could expect as the instrument took shape. The late Reverend Steven C. Wilson motivated the parish to fund the continuation of a well-established tradition of Anglican music. In signature Father Steve jest, threats of an “Organ Donor Dinner,” at which would be served the internal organs of various critters, resulted in many generous donations. The Reverend Joseph Pierjok expertly followed in the footsteps of his predecessor, continuing to support the construction of Opus 12 and bolstering the legacy of traditional worship at Grace.

Upon completion of Opus 12, the congregation immediately became less cautious singers, now being supported by the organ, rather than drowned in electronic sound. The choir enjoys improved acoustics: where they’d previously been tucked under imposing “flower boxes” that both stifled their sound and covered original stained glass, the transept is now open all the way to the ceiling. Voices now fill the space with ease, and the design of the case blends seamlessly into the architecture of the building.

Opus 12 is a welcome addition to the shrinking inventory of traditional instruments in southwest Missouri. It has been a great joy to help create an organ that will be an integral part of worship at Grace Church for generations to come.

—Peter Frost

GREAT (expressive, Manual I)

16′ Bourdon white pine & red oak 58 pipes

8′ Principal zinc & 50% tin 58 pipes

8′ Chimney Flute 30% tin 58 pipes

4′ Octave 50% tin 58 pipes

2-2⁄3′ Twelfth 50% tin 58 pipes

2′ Fifteenth 30% tin 58 pipes

1-3⁄5′ Seventeenth 30% tin 54 pipes

2′ Mixture III 50% tin 174 pipes

Zimbelstern

SWELL (expressive, Manual II)

8′ Dulciana (1–11 façade) zinc & 50% tin 58 pipes

8′ Celeste (TC) 50% tin 46 pipes

8′ Stopped Diapason white oak 58 pipes

4′ Principal 50% tin 58 pipes

4′ Open Flute 30% tin 58 pipes

2-2⁄3′ Quinte 30% tin 58 pipes

2′ Doublette 30% tin 58 pipes

16′ Bass Clarinet zinc & 50% tin 58 pipes

8′ Trumpet zinc & antimonial lead 58 pipes

PEDAL (unenclosed)

16′ Subbass poplar and 50% tin 30 pipes

16′ Bourdon (Great)

8′ Open Diapason (12–30 façade) pine & 70% tin 30 pipes

8′ Bass Flute (ext Subbass) 12 pipes

4′ Octave (ext Open Diapason) 12 pipes

16′ Double Trumpet (ext Swell) zinc & 30% tin 12 pipes

8′ Trumpet (Swell)



Three unison couplers

General tremulant

Direct mechanical key action apart from certain large bass pipes

Electric stop action with solid-state combination action

24 stops, 21 ranks, 1,182 pipes



Builder’s website: www.rathkepipeorgans.com



Church’s website: gracecarthage1869.org/

M. P. Rathke, Inc., Opus 8 was built for Newtown United Methodist Church, Cincinnati, Ohio. The video features the Bennett Trumpet Voluntary from the dedication recital by Thomas Miles. Opus 8 was featured on the cover of the February 2017 issue of The Diapason.

The firm’s Opus 12 is featured on the cover of the December 2022 issue of The Diapason, built for Grace Episcopal Church, Carthage, Missouri.

The organ comprises 24 stops, 21 ranks, 1,182 pipes on two manuals and pedal. Direct mechanical key action, apart from certain large bass pipes; electric stop action with solid-state combination action.

For information: www.rathkepipeorgans.com

Fratelli Ruffatti, Padova, Italy; Notre Dame Seminary, New Orleans, Louisiana

Flexibility is the key

The new instrument for Notre Dame Seminary of New Orleans is a two-manual organ. In spite of its relatively moderate size, however, it is designed to be more flexible in its use than many of its three-manual counterparts. This is made possible primarily by the careful choice of stops and console controls by sacred music director Max Tenney in collaboration with the builder.

A notable and not-so-common feature is the division of the Grand-Orgue into two sections, unenclosed and enclosed. The first contains the principal chorus, based on a 16′ Principal, while the latter includes flutes, a Gemshorn with its Celeste, and a rather powerful reed. Versatility not only comes from graduating the volume of the enclosed stops, but goes well beyond. Let’s look at how this is accomplished.

Each section of the Grand-Orgue is equipped with its own set of sub and super couplers and a Unison Off. The unusual possibility of applying interdivisional couplers and Unison Off only to a few stops and of using them in conjunction with other non-coupled stops within the same manual offers new and exciting possibilities. As an example, the Great Trompette, which is only controlled by one stop knob at 8′ pitch, can be used at 16′, 8′, and 4′ (and under expression) with a non-coupled principal chorus.

The console controls include a Grand-Orgue Enclosed to Expressif Transfer, which can separate the two Grand-Orgue sections in a single motion, canceling the stops drawn on the first manual and transferring them to the second. The two Grand-Orgue sections, now located on separate keyboards, can be used in dialogue, one against the other. In addition, the transfer makes it possible to use the enclosed Grand-Orgue stops with the stops of the second manual, which are also under expression. Imagine the possibilities!

A further step toward the separation of the two Grand-Orgue sections is their separate set of couplers (at 8′ and 4′) to the Pedal. There are more controls to stimulate creativity, such as the Manual Melody coupler, the Grand-Orgue Trompette coupler, and the Pedal Divide.

The most important contribution to tonal flexibility, however, is the result of very careful choices of dimensions and manufacturing parameters of the pipes, which comes from decades of experience. Together with refined voicing techniques, a good blending of each stop in all traditional stop combinations is guaranteed. In addition, the performer can create registrations that are often considered unconventional but provide valid musical solutions to whatever challenges arise. With proper voicing and pipe dimensioning, a smaller instrument can display a tonal flexibility comparable to that of a much larger pipe organ.

Technically, the console has much to offer. In addition to quality tracker-touch keyboards (61 keys), a 32-note standard AGO pedalboard, and an ergonomic design, it is equipped with a very reliable and well-tested control panel, which is remarkable in many ways. It displays a user-friendly touchscreen—by a simple touch the organist can jump from one icon to the next to access different functions. The icons are many, but all are intuitive to put any organist at ease from the first experience.

The combination action, which includes both generals and divisionals, offers great flexibility. As is often the case with modern systems, organists can have their own dedicated “folders.” Password input is not needed to open them; a personalized magnetic “key” placed next to a sensor will allow access. The storing of combinations is made simple by giving them the name of the piece for which they were set (i.e., Widor Toccata). Further, a number of such pieces can be selected and grouped into concert folders, which can be given a name as well (i.e., Christmas Concert 2021).

—Francesco Ruffatti

Partner & Tonal Director

The organ case

Designing a new pipe organ is always an exciting process. Many things must be taken into account, both from the technical and the visual standpoints. Technically, it is always a challenge to make sure that every part is easily accessible, that every pipe is reachable for tuning, that the various divisions speak freely into the building, and that all technical elements fall into place properly. Visually, the design is the result of a combination of several aspects: the environment in which the organ is located, the client’s wishes, and the designer’s creativity.

The chapel at Notre Dame Seminary is not a large building, yet it is a place with high, vaulted ceilings and classical architectural design. The organ and the console find their place in the loft above the main door, where the choir will sing under the direction of music director and organist Max Tenney.

The casework was stipulated to be of classical design, with the largest pipes in the façade. Our approach to the design follows this criteria, but with a contemporary touch to it, in an effort to blend the classical style with features that belong to the 21st century. The case is divided into five bays, with the central bay capped by an arch, thus recalling the big central arch dividing the loft from the chapel. The side bays closest to the center have counter arches, which bring more emphasis to the central bay, while the bays to their sides are a natural conclusion to the organ case containing the smaller façade pipes.

The organ façade features a decorative element in front of the pipes, which enriches the design as a whole. This element develops from the top of the arched roofs next to the central bay and follows its curve, spanning through the three central bays. The decoration crosses in front of the central pipe and changes its curvature until it reaches the vertical columns, where it is replaced by gilded shadow gaps, and then continues on the low part of the side bays, matching the curvature of the pipe mouths of the outermost bays.

The case is finished with a white lacquer and is enriched by 24-carat gold leaf accents, to complement the interior scheme of the planned redecoration of the chapel, soon to be implemented.

—Michela Ruffatti

Architect & Design Director

The organ in liturgy

Rooted in the Documents of the Universal Church, the Teaching of the Supreme Pontiffs, the Directives of the Dicastery for Divine Worship and the Discipline of the Sacraments in the Vatican, as well as the United States Conference of Catholic Bishops’ Secretariat on Divine Worship, together with the Norms for Spiritual Formation provided in the most recent edition (2022) of the Program for Priestly Formation, the Office of Sacred Music at Notre Dame Seminary seeks to provide the men in priestly formation with both a solid and comprehensive analysis, as well as a practical and methodological understanding of Liturgical Music, its role in service to the Sacred Liturgy, and the means by which the clear and consistent teaching of the Church on the subject might best be implemented throughout the dioceses and parishes in which these future priests will find themselves in the service of God’s Holy People.

These words have guided the Sacred Music Program at Notre Dame Seminary in the New Orleans Archdiocese since my arrival nearly a decade ago. Almost immediately the then-rector, the Very Reverend James A. Wehner, S.T.D., had begun a conversation with me about the organ in the seminary’s Chapel of the Immaculate Conception of the Blessed Virgin Mary. The Möller organ had served admirably for nearly a century. It had even survived several attempts to alter its original tonal design, including the expansion of the instrument through the means of extensive unification, in addition to a revoicing. Also, during the decades following the Second Vatican Council, the instrument had been severely neglected, receiving almost no service in those years.

It was decided early on in those conversations that the organ needed to be replaced. The mandate was clear: to design an instrument worthy of Our Lady’s seminary, the largest theologiate in the American Church, that would competently and beautifully accompany the Church’s liturgies, including both the Holy Mass and the Divine Office. As the seminary grounds are located in the urban uptown neighborhood of the city of New Orleans, the chapel is in frequent demand by the archdiocese for various ceremonies, rites, and services that can be accommodated in the small nave seating only 175 persons. These realities guided my mind in planning a new instrument. Additionally, I wanted to provide an organ that would serve to inspire future priests not only in their daily prayer, but in the eventual reality that, God willing, they will one day serve as pastors in parishes across the Gulf south, and that they themselves might go on to commission similar instruments of such high quality for these parish communities in which they will serve.

The concept for the seminary organ—two manuals and pedal with two enclosed divisions and an unenclosed complete principal chorus—came about through the months and years of conversations with Francesco Ruffatti, tonal director of the firm. This idea would seem to deliver the most flexibility for our instrument. It was also through these discussions and because of my desire to honor the French patrimony of the city, archdiocese, and seminary, that our concept for a French-inspired instrument was developed. Francesco and Michela had previously spent much time surveying and studying several famous instruments by the builder Cavaillé-Coll in preparation for what has become one of the firm’s landmark organs—in Buckfast Abbey, Devon, U.K., which contains a French Gallery division. Our instrument here in New Orleans is largely influenced by that study.

As we have now completed the installation of the instrument and are in the process of voicing and tuning, we have begun using the instrument at liturgies. To say that the organ surpasses my every expectation would be a gross understatement: it literally sings in the room. It is possible to lead the entire seminary community with only the 8′ Montre. The rich harmonics seem to lift the voices high in the nave. The Gregorian chant Propers sung by the Seminary Schola Cantorum are beautifully accompanied by the Gemshorn. The sounds are truly gorgeous in every sense of the word.

This project would not have been possible without the incredible support of the Very Reverend Father James A. Wehner, S.T.D., Sixteenth Rector and Sixth President of Notre Dame Seminary. As well, profound thanks are due to the entire team at Fratelli Ruffatti, including Piero, Francesco, and Michela Ruffatti, Fabrizio Scolaro, Evgeny Arnautov, Nancy Daley, and Tim Newby.

—Max Tenney

Associate Professor, Organist and

Director of Sacred Music

Notre Dame Seminary

The Roman Catholic Archdiocese of New Orleans

Builder’s website: ruffatti.com

Seminary website: nds.edu

Cover photo by Steven Blackmon

Detail photos by Fratelli Ruffatti



GRAND-ORGUE Unenclosed Manual I

16′ Montre 61 pipes

8′ Montre 61 pipes

4′ Prestant 61 pipes

2-2⁄3′ Twelfth 61 pipes

2′ Doublette 61 pipes

1-3⁄5′ Seventeenth 61 pipes

2′ Fourniture III–V 264 pipes

Zimbelstern 12 bells

Sub Octave

Unison Off

Super Octave

GRAND-ORGUE Enclosed

16′ Bourdon (prep)*

8′ Flûte Harmonique 61 pipes

8′ Bourdon 61 pipes

8′ Gemshorn 61 pipes

8′ Gemshorn Celeste (TC) 49 pipes

4′ Flûte Octaviante 61 pipes

Tremblant for enclosed stops

8′ Cor de Wehner (Trompette de Fête) 61 pipes

Chimes (prep)*

Sub Octave

Unison Off

Super Octave

EXPRESSIF (Enclosed), Manual II

16′ Bourdon Doux (prep)*

8′ Stopped Diapason 61 pipes

8′ Viole de Gambe 61 pipes

8′ Viole Celeste (TC) 49 pipes

4′ Prestant 61 pipes

4′ Flûte de la Vierge 61 pipes

2-2⁄3′ Nasard 61 pipes

2′ Octavin 61 pipes

1-3⁄5′ Tierce 61 pipes

2′ Plein Jeu IV 244 pipes

16′ Basson-Hautbois 61 pipes

8′ Trompette Harmonique 61 pipes

8′ Hautbois (ext 16′) 12 pipes

Tremblant

8′ Cor de Wehner (Grand-Orgue)

Chimes (prep)*

Sub Octave

Unison Off

Super Octave

PÉDALE (Unenclosed)

32′ Contre Basse (prep)*

32′ Contre Bourdon (prep)*

32′ Resultant (from Soubasse 16′)

32′ Harmonics V (from Montre 16′ and Subbass 16′)

16′ Montre (Grand-Orgue)

16′ Soubasse 32 pipes

16′ Bourdon (Grand-Orgue)

16′ Bourdon Doux (Expressif)

8′ Basse 32 pipes

8′ Bourdon (ext 16′ Soubasse) 12 pipes

8′ Stopped Diapason (Expressif)

4′ Flûte (ext 16′ Soubasse) 12 pipes

32′ Contre Bombarde (prep)*

32′ Contre Basson (prep)*

16′ Bombarde 32 pipes

16′ Basson (Expressif)

8′ Trompette (ext 16′ Bomb.) 12 pipes

4′ Hautbois (Expressif)

8′ Cor de Wehner (Grand-Orgue)

Chimes (Expressif)

* console preparation for digital stop

50 speaking stops (including preparations and wired stops)

34 pipe ranks

1,970 pipes and 12 real bells

INTERDIVISIONAL COUPLERS

Expressif to Grand-Orgue 16, 8, 4

Grand-Orgue Enclosed to Expressif Transfer

Grand-Orgue Unenclosed to Pédale 8, 4

Grand-Orgue Enclosed to Pédale 8, 4

Expressif to Pédale 8, 4

Manual Melody Coupler

Grand-Orgue Cor de Wehner Coupler

COMBINATION ACTION

Generals 1–10

Grand-Orgue 1–6, Cancel

Expressif 1–6, Cancel

Pédale 1–6, Cancel

Set

General Cancel

Next (+) (multiple locations)

Previous (–)

All Generals Become Next (piston)

Divisional Cancels on stop jambs for each division

MIDI

MIDI Grand-Orgue

MIDI Expressif

MIDI Pédale

Pedal Divide 1

Pedal Divide 2

(Pedal divide configurations and dividing point are programmable from the touchscreen)

CANCELS (not settable)

Reeds Off

Mixtures Off



Zimbelstern

Tutti (Full Organ)

Expression for Expressif

Expression for Grand-Orgue Enclosed

All Swells to Expressif

Crescendo

CONSOLE CONTROL SYSTEM

The control panel is a 5.7-inch-wide color touchscreen.

Functions and features:

• Screen settings, language selection, date and time display, thermometer display

• Metronome

• Transposer, by 12 semitones either way

• Crescendo and Expressions bargraphs

• Crescendo sequences: standard and settable

• Crescendo Off

• Diagnostics

• “Open” memory containing up to 9,999 memory levels for the General pistons

• Additional 100 personalized folders, each containing up to 9,999 memory levels for the General pistons

• Access to the folders by password or by personal proximity sensor

• Up to 5 “insert” combinations can be included or cancelled between each General piston to correct errors or omissions while setting combination sequences

• Renumbering function for modified piston sequences

• All system data can be saved on USB drive.

• Display for combination piston and level in use

• Combination action sequences can be stored with the name of the piece, and pieces can be collectively grouped and saved into labelled “Concert” folders.

RECORD AND PLAYBACK

Export/import recordings with USB drive.
