Cover Feature: M. P. Rathke Opus 12

C. B. Fisk, Inc., Gloucester, Massachusetts

First United Methodist Church, Pittsburg, Kansas

From the Organbuilder

Forever ago it seems, in the year 1991, C. B. Fisk, Inc., was commissioned to build a three-manual, 49-stop teaching and recital instrument in McCray Hall on the campus of Pittsburg State University, Pittsburg, Kansas. Our first organ in the Sunflower State, Opus 106 provided us an opportunity to work closely with PSU professor Susan Marchant, the school’s widely respected director of choral activities, organ, and harpsichord. Trained in organ performance at Oberlin and Yale, Dr. Marchant allowed at the time that, should the stars someday align again, her dream was to acquire a Fisk instrument for her church—the First United Methodist Church of Pittsburg.

Well, to the benefit of all, twenty-six years later the stars did indeed realign, and in the spring of 2017 C. B. Fisk was awarded a contract with FUMC to build a two-manual, 26-stop mechanical-action organ. Discussions had commenced the year previous with Dr. Marchant, music director and organist, Eric Rosenblad, chair of the organ committee, and the Reverend Mark Chambers, senior pastor. It was decided early on that Opus 152, in contrast to its predecessor, would be centrally located and facing forward at the front of the sanctuary, enabling it to speak without obstruction into the nave. Its unorthodox, imaginative tonal design, developed in close collaboration with the music director, would be efficient, flexible, and specific to the needs of a traditional United Methodist parish church with a reputable, first-rate music program. For our part, we were as delighted at the opportunity for further artistic partnership with Dr. Marchant as we were enthused to add to the collection of fine musical instruments that enhance life in southeastern Kansas.

The First United Methodist Church was established in 1879 as the Tabernacle Methodist Church, three years after the founding of the city of Pittsburg. The current building, a sturdy and nicely proportioned edifice of red brick, is the third in the church’s 140-year history. Dating from 1914, it stands at the intersection of 5th and Pine Streets, one block west of Pittsburg’s picturesque main street.

The church has recently undergone a major renovation, a new pipe organ having been a cardinal component of the renovation plan from day one. Acoustical consultant Joseph Myers, president of Kirkegaard Associates in Chicago, was key to the revitalization of the sanctuary design. Following a day of joint onsite listening and brainstorming with Fisk president Michael Kraft and project manager Andrew Gingery, and encompassing ideas that came out of visual designer Charles Nazarian’s initial studies in the physical design model, Mr. Myers generated a detailed, prioritized list of room modifications for consideration. All together, these changes would markedly improve the sanctuary’s acoustical ambience—for the spoken word, for congregational as well as choral singing, and for the support of organ tone. Myers’s comprehensive report contained recommendations for:

1) reshaping and extending the chancel platform in order to bring the liturgical proceedings closer to the people and to provide greater flexibility for worship and concerts;

2) filling the former organ chamber openings in the chancel sides with angled, plastered masonry walls to add support for the organ’s bass tones and at the same time reduce parallel side wall flutter;

3) removing in its entirety the (providentially) non-structural proscenium arch, thus doing away with an acoustically harmful sound trap;

4) adding a gently sloping, shallow, convex reflector tight against the barrel-vaulted ceiling at the centerline of the chancel in order to dramatically reduce the confusing buildup of sound between floor and ceiling and to furnish supportive reflections for both choir and organ.

These room modifications, in concert with the new instrument, signaled substantial changes to the front of the worship space; in spite of this, all were enthusiastically embraced and adopted by the church leadership. With the renovations complete and the new organ in place, the sanctuary has been visually and acoustically transformed into an exceptional setting for liturgical worship and musical performance.

Opus 152 is a two-manual and pedal instrument of 26 stops, 22 of which are independent voices. The stoplist was conceived to make the most of available resources, both in terms of budget and space. The Great division, located behind the façade at impost level, comprises only six stops but provides a solid foundation of 16′, 8′, and 4′ tone as a basis for leading congregational song. The one Great reed stop, the German Trumpet, is constructed after Arp Schnitger’s Unterklavier Trompet 8′ in the St. Laurentius Kirche, Dedesdorf. The large Swell division is home to a complete 8′ flue chorus, a pair of strings modeled after those of Aristide Cavaillé-Coll, a flute-scaled cornet séparée with Dom Bédos-inspired mutations, and three colorful nineteenth-century French reed voices—Trompette, Hautbois, and Clarinette—all at 8′ pitch. Importantly, the upperwork of the Swell is scaled and voiced to not only create an effective and balanced flue chorus in that division, but also to couple to the Great foundations where it generates a convincing organo pleno on Manual I. The heavily built Swell box is located above the treble pipes of the Great division and is oriented back to front, with expression shades on the front and both sides. Due to its wealth of tone colors and extensive dynamic range, the Swell accompanies the church choir with ease, and it contributes well to the organ’s ability to showcase a wide range of organ solo repertoire. The Pedal is home to two independent voices—the hammered spotted metal Principal 16′, standing in the façade from DD, and the Trombone 16′. Four additional Pedal stops are mechanically transmitted from the Great.

Construction and preliminary voicing of Opus 152 happened in our Gloucester workshop over the first several months of 2018. Installation took place in August of that year, and the finish voicing occupied us throughout the fall and into the winter. The service of dedication and consecration of both sanctuary and pipe organ took place during Lent, on March 24, 2019, to a full house. It featured the organ as an instrument beautifully positioned to fulfill its roles of supporting congregational singing, accompanying choral music, and playing solo and chamber music of diverse styles. Participating musicians on this joyous occasion included the church’s Chancel Choir, members of the Pittsburg State University Choir, PSU saxophone professor Joanne Britz, and organists Susan Marchant, Peter Frost, and Jung Hee Lee.

—David C. Pike, Executive Vice President & Tonal Director, C. B. Fisk, Inc.

From the Music Director and Organist

From my earliest visits as a graduate student to the Fisk shop in Gloucester, as well as to a number of the instruments that resulted from the artistry and craftsmanship that guide the creative process there, I was drawn to the extraordinary organs that bear the name of the firm’s founder. My subsequent conversations and visits with Charles Fisk confirmed my decision that, were I ever to be so fortunate as to have an opportunity to help guide the acquisition of a new organ, I would look first to C. B. Fisk.

That good fortune became a reality when, in the 1980s, the leadership of Pittsburg State University and the PSU Foundation embraced the concept of launching a campaign to support the acquisition of what would become Fisk Opus 106. Since its arrival in 1995, it has served as the university’s primary instrument for teaching and performance, and as such has been visited by many of the profession’s most distinguished organists for concerts and masterclasses.

The opportunity to work toward the acquisition of a second new organ for Pittsburg, this time for First United Methodist Church, brought to mind images of a rather different type of instrument, one whose primary function would be to accompany the choir and congregation in the church’s long-standing and vibrant music program. The goal for Opus 152—with its substantial and versatile Swell and Fisk’s characteristically full-bodied principals of the Great, working in concert with the critically important acoustical improvements to the sanctuary—was to achieve a result that would bring an entirely new dimension to congregational singing, one that would be both supportive and inviting. By all accounts from members of the congregation, this goal has been met with resounding success!

Visitors to Pittsburg invariably sense the wonderful symbiotic relationship that exists here between the university and the community. In that spirit, my hope is that both institutions will benefit greatly from the presence of Opus 106 and Opus 152. Organ students as well as seasoned professionals will have an opportunity to study the two instruments’ differences in tonal resources, stop action, and other essential aspects of their design, and will continue to engage in great music-making for many years to come.

—Susan J. Marchant

Director of Music, First United Methodist Church, Pittsburg

Professor and Chair, Pittsburg State University Department of Music

GREAT (Manual I)

16′ Bourdon

8′ Principal

8′ Harmonic Flute

8′ Spire Flute

4′ Octave

8′ German Trumpet

SWELL (Manual II, enclosed)

8′ Violin Diapason

8′ Viole de gambe

8′ Voix céleste

8′ Chimney Flute

4′ Principal

4′ Harmonic Flute

2-2⁄3′ Nasard

2′ Fifteenth

2′ Piccolo

1-3⁄5′ Tierce

1-1⁄3′ Mixture IV–VI

8′ Trompette

8′ Hautbois

8′ Clarinette

PEDAL

16′ Principal

16′ Bourdon (Gt)

8′ Principal (Gt)

8′ Spire Flute (Gt)

4′ Octave (Gt)

16′ Trombone

Couplers

Swell to Great

Great to Pedal

Swell to Pedal

Swell to Pedal 4′

Accessories

Wind Stabilizer

General Tremulant

Key action: direct mechanical (tracker)

Stop action: solenoids, electrically controlled

Combination action: by SSOS, Sequencer

Casework: Quartered white oak with black walnut console surround

Keydesk: two manuals and pedal; manuals 61 keys (CC–c⁴); Fisk pedalboard 32 keys (CC–g¹)

Temperament: Fisk II

Photo courtesy C. B. Fisk, Inc.

Builder’s website: www.cbfisk.com

Church website: www.fumcpittsburg.org

Sebastian M. Glück, New York, New York; The William and Alice Stack Cathedral Organ, The Cathedral of Christ the King, Superior, Wisconsin

Sebastian M. Glück

Sebastian M. Glück, New York, New York

The William and Alice Stack Cathedral Organ

The Cathedral of Christ the King, Superior, Wisconsin

Ground was broken for the Cathedral of Christ the King on June 23, 1926, and the building was dedicated on Christmas Day of 1927. Elegant simplicity marks the neo-Romanesque structure and its campanile, built upon a raised platform and standing nobly against the Wisconsin sky. Romanesque architecture, which features thick masonry walls with small windows rather than large expanses of flexible stained glass, normally would provide ample reverberation and the preservation of most frequencies. The cathedral’s interior stood unfinished until a fund drive was initiated in 1937 to complete the decorations and furnishings, installing carpet in the sanctuary and sound-absorbing materials covering the ceiling and the upper side and rear walls of the nave. Despite the great cubic volume of the building, reverberation was annihilated, with a range of .94 to 1.0 seconds. The choir sang from a low-ceilinged gallery above the narthex, its voices struggling to reach the crossing with the inadequate accompaniment of a small organ with failing digital stops.

A new acoustic

In 2003, Rev. Richard Vosko was engaged as the liturgical designer, along with architect Robert Semborski of Architectural Resources, Inc., of Duluth, Minnesota, to begin a revision of the cathedral, with Scott R. Riedel & Associates, Ltd. of Milwaukee, Wisconsin, as acoustic and organ consultants. The choir was relocated into the Epistle-side transept, and the altar, ambo, and liturgical functions onto a raised sanctuary space that extends into the crossing. The project was completed and dedicated in February of 2005.

The installation of terrazzo paving and the removal of the sound absorbing ceiling and side wall treatments were initial steps toward doubling the reverberation time. A coffered, hard plaster ceiling and hard surface clerestory walls now result in clear, intelligible speech and more than two seconds of gracious reverberation. Modest amounts of sound absorbing treatment on the rear wall prevent unwanted reflections and repetitions.

Upper-level balconies and ambulatory spaces flanking the sanctuary were redesigned as organ chambers for a future instrument, and the building was outfitted with electrical conduits and ductwork in anticipation of the installation of a new organ. The former hybrid organ was sold, and the cathedral used a piano as their primary musical instrument after the building renovation.

In 2003 the Cathedral Organ Committee had selected another organbuilder to build a new organ, but the price of the large instrument was formidable. The project was set aside until Scott Riedel recommended that I review the circumstances, since he had served as the consultant on three organs I had built across the country and believed that a different approach would lead to success. Client, consultant, and builder were in agreement that if an appropriate heritage organ could be adapted to the situation, the timeline could be compressed and the budget reduced. I made it very clear that despite the prevailing hopeful mythology, a complete restoration or reconfiguration of an existing organ might equal or exceed the cost of a new one.

Over a period of years, I located and offered three possibilities to the cathedral. The first was a late Frank Roosevelt organ that I had purchased and stored before its abandoned home was razed. Future plans had not been finalized in Superior, so I incorporated that instrument into a 62-rank double organ for another client (see The Diapason cover feature, April 2018). Two substantial, serially altered Aeolian-Skinner organs subsequently were brought under consideration. Both of those situations were so heavily freighted with bureaucracy, politics, and interference by middlemen that a choice was made to redirect the search.

On another front, unforeseen circumstances made the cathedral organ project possible. A church in the northeast had purchased, under my direction, carefully selected ranks from organs that had been dismantled and placed on the open market. That client chose to wait patiently for the time when they could build the organ I had designed for them without preparing any stops for future installation. At the point of signing a contract, Hurricane Sandy severely damaged that congregation’s roof, existing organ, and organ chamber. Their pipe organ would have to wait until they restored their building, and the pipes remained in storage. An evaluation of the needs of both potential clients led to the sale of that pipework to the Cathedral of Christ the King.

The available ranks were suited to adaptation for an organ in the cathedral, with adjustments to the specification, some rescaling of the fluework, and the construction of some new pipes. The clear mission was to serve the Catholic liturgy, congregational singing, and the established organ and choral literature. There was no interest in adopting the whims of any particular temporary organbuilding trend that might prove regrettable in the future. The specifications were built upon the features held in common by the instruments of the important eras and cultures of organ composition and building. That information was filtered through the registration guidelines handed down by tradition, performance practice treatises, and the composers’ scores. Such tenets distilled the stoplist toward a practical design that endures rather than frustrates.

The musical blueprint

What began as a two-manual design grew to three manuals in light of how much substantive literature called for a third, and how the nuances of choral accompaniment could be expanded. During the century and a half that Americans have placed Choir divisions under expression, these sections often have been of nebulous conception and could not serve the literature. I walked the conservative path of an unenclosed eight-rank Positiv division in the Gospel case, with the Great in the Epistle case. These divisions enjoy the spatial separation of a Baroque Positiv in a dorsal case while keeping the organ entirely on one level for the sake of tuning stability. The interior of the organ features abundant lighting, broad walkboards, sturdy tuning perches, and secure ladders to facilitate its future care and longevity.

Pipe organs of moderate size can exhibit some predictability in tonal design if the builder is a conscientious steward of a client’s funds; each indulgent frill that supplants a requisite voice is an extravagant waste—a disservice to music, liturgy, and education. Instruments of this size can be conceived with measured additions to the safety of the template, increasing color and utility without being irresponsible. My ethical obligation to keep the instrument free of artificially generated voices served to focus the stoplist and curb tonal temptation.

The forthright core of the Great division is its Diapason chorus, with the bottom octave of the 8′ standing in the speaking façade. The large scale 8′ Harmonic Flute, which takes its lowest nine pipes from the Open Diapason to maintain open tone throughout the compass, is joined by the 16′/8′ wooden Bourdon unit and the Viole de Gambe borrowed from the Swell. The 4′ Spire Flute is voiced and finished such that it can be used in unconventional combinations with other flue stops for a variety of tonal colors. The firm and round Trumpet is an extension of the Pedal reed unit, and although a theoretical compromise, is not detected as such by the listener in the now-sumptuous acoustic.

The Swell division is located in the triforium of the Epistle side of the sanctuary, with shutter fronts opening into the sanctuary as well as to the transept behind the Great windchest. This second set of shutters prevents the Swell from sounding distant and directs its tone toward the choir stalls in the transept. The division is planted on a slider soundboard like the rest of the organ, with the exception of the reeds and the Viole de Gambe, which stand on an electropneumatic unit windchest.

The American Swell division, for decades gutted of its 8′ Open Diapason, is enjoying a return of this valuable pitch base. It is included here as a hearty slotted version that is immeasurably useful in the liturgy as well as in the performance of organ and choral music. The Swell Diapason chorus is marked by a brighter Mixture than that of the Great, and although it contains only three ranks, it bears two unisons and one quint throughout the playing range to maintain clarity in voice leading. Incisive French strings of slotted construction take their traditional places, and the undulant makes a good pair with the Diapason as well. The parent rank stands behind the shutter front near the Great windchest, as it is borrowed onto the Great to complete the quartet of stops for the fonds d’huit.

The choir of flutes includes the elements of the Cornet Composé. With only one tierce combination in the instrument, I felt that the mutations should be flute scaled. Principal scaled mutations cannot weld into a Cornet, yet the 8′-22⁄3′-13⁄5′ flute combination can, in a good acoustic, convince one that there is a Sesquialtera present. This places the Cornet in a position to enter into dialogue with the half-length cylindrical reed in the Positiv while still contributing to the Grand-Jeu.

The original plan called for independent ranks for the 16′ Bassoon and 8′ Oboe, but they were reconceived as a unit when the organ was expanded to three manuals. An unexpected feature of the capped, full-length 16′ Bassoon is that when drawn in the Pedal by duplex action, it sits beautifully beneath the strings, as a surrogate Violone, and adds color and pitch identity to the Pedal line in softer combinations.

The Positiv borrows a bit from the Georgian chamber organ and a bit from the Continental Baroque, but is neither. Open flue stops at 8′ pitch were common practice for the secondary manual divisions of Bach’s time and culture. The chronic omission of such tone, as well as the frequent absence of the 4′ Principal during the Orgelbewegung’s American manifestation, perpetuated an imbalance between the Great and Positiv. The utility of the 8′ Dulciana cannot be overstated, especially when it leans more toward an Echo Diapason than the type of neutered, bland string placed in American organs of a century ago. The two-rank mixture is not high-pitched, as the Positiv differentiates itself by its weight and texture without having the upperwork separate from the ensemble. The 8′ Clarinet is made of very hard black zinc and is notably bold and broad in tone, voiced brightly so as to work well in both French organ repertoire and its characteristic soli in English anthem accompaniments. The Herald Trumpet, which plays from this manual, is placed in the triforium on the Gospel side of the sanctuary and is the most brilliant stop in the organ.

The Pedal division is derived from four boldly scaled unit ranks and carefully selected mezzo-forte stops either borrowed or extended from the manual divisions, with the 8′ Principal in the Gospel façade. The 16′ Dulciana, extended from the Positiv, is worth its weight in gold for its utility and elegance, and allows for the forcefulness of the 16′ Open Wood Bass to fully undergird the ensemble. The 16′ Trombone unit, despite its brassy flair, is warm and round, and rolls down the nave dramatically. It is scaled and voiced for the Pedal, rather than being a conceptual extension of the Great Trumpet, a practice which can lead to inadequate support in the bass.

The visual element

It is a challenge to be invited to design and build an organ after another builder’s recommended alterations have been made to the edifice. A freestanding organ in a resonant case, recessed slightly into one of the transepts, would have been ideal, but two factors negated that possibility. Reinforced concrete platforms projecting into each transept were already in place at the direction of the previously selected builder. Worshippers and visitors to the cathedral had been looking at those empty shelves and gaping holes in the transept walls for a decade and a half, and expected a resolution. In addition, three fine mosaics in the Byzantine style had been commissioned for each of the building’s apses, and their beauty had to remain in view.

My series of concept sketches began with a sculptural “pipes in the open” array, which quickly revealed itself to be contextually inappropriate. As a preservation architect attuned to precedent and context, I felt that the mid-20th-century treatment was an evasion of artistic responsibility, so I moved forward by cataloguing the building’s architectural elements. One principle of fine interior design is that if stylistically disparate furnishings are placed in a room, the gesture is most successful when they are at least two historical periods apart.

The cathedral case design, as built, combines pendant pairs of pipe stockades with wooden casework. The former is a nod to what Midwestern American builders were producing for Catholic churches at the time the cathedral was built, and the latter was inspired by my walk-through of the permanent stage settings of Palladio’s Teatro Olimpico of 1585, in which he used classical architectural elements in forced perspective to create the illusion of greater height and depth in the built environment. Unconventional as this treatment may be, one has the sense that the portions of the instrument that flank the liturgical focus of the building were always in place and meant to be there. Rather than being imposed distractions, they tend to sweep the eye back toward the sanctuary.

Beyond the walls

When a church or synagogue asks its membership to contribute funds toward a major project, the campaign is most successful if it enhances the lives of those beyond the circle of donors. If pipe organs are heard only during religious services and are kept under lock and key at all other times, a barrier is erected between the institution and the inquisitive listener. The organ is one of many tools that can bring the surrounding community into the congregation’s sphere of ministry.

The area’s organists and academics have taken note of this instrument in part because it offers a new perspective on the performance of the post-Mendelssohnian organ repertoire without rejecting any of the structure of the golden age of the organ. In a region that until recently has favored the interpretive neoclassicism of the last century, organ students are welcomed to a new pipe organ of a more inclusive academic style.

Large-scale choral works and the hundreds of pieces written for organ with solo instruments or orchestra will be more authentically experienced in this peaceful, spiritual, resonant space. The Duluth Superior Symphony Orchestra, Twin Ports Wind Orchestra, Lake Superior Chamber Orchestra, Duluth-Superior Symphony Chorus, Superior Diocesan Chorale, and myriad collegiate ensembles have a new resource through which to expand and vitalize the musical life of the region.

—Sebastian Glück

Personnel:

Sebastian M. Glück, Artistic and Tonal Director

Albert Jensen-Moulton, General Manager

Robert Ahlborg

Joseph DiSalle

Keith Goss

Dominic Inferrera

John Kawa

Robert Rast

William Wildenberg

David Winek



Suppliers:

Organ Supply Industries, A. R. Schopp’s Sons, Syndyne, Peterson Electro-Musical Products



GREAT – Manual II

16′ Bourdon (ext 8′) 12 pipes

8′ Open Diapason 58 pipes

8′ Bourdon 58 pipes

8′ Harmonic Flute (a) 49 pipes

8′ Viole de Gambe Swell

4′ Principal 58 pipes

4′ Spire Flute 58 pipes

2′ Fifteenth 58 pipes

Chorus Mixture IV 232 pipes

8′ Trumpet (b) 14 pipes

Tremulant

8′ Clarinet Positiv

8′ Herald Trumpet Positiv

Great Silent

SWELL – Manual III – enclosed

8′ Open Diapason 58 pipes

8′ Stopped Diapason 58 pipes

8′ Viole de Gambe 58 pipes

8′ Voix Céleste (TC) 46 pipes

4′ Principal 58 pipes

4′ Harmonic Flute 58 pipes

22⁄3′ Nazard 58 pipes

2′ Quarte de Nazard 58 pipes

13⁄5′ Tierce 58 pipes

Mixture III 174 pipes

16′ Bassoon (ext 8′) 12 pipes

8′ Trumpet 58 pipes

8′ Oboe 58 pipes

  Tremulant

16′ Swell to Swell

4′ Swell to Swell

POSITIV – Manual I

8′ Viole de Gambe Swell

8′ Dulciana 58 pipes

8′ Holzgedeckt 58 pipes

4′ Principal 58 pipes

4′ Chimney Flute 58 pipes

2′ Recorder 58 pipes

Sharp Mixture II 116 pipes

8′ Clarinet 58 pipes

Tremulant

8′ Trumpet Great

8′ Oboe Swell

16′ Herald Trumpet (fr 8′)

8′ Herald Trumpet 58 pipes

Positiv Silent

PEDAL

32′ Untersatz (c)

16′ Open Wood Bass 32 pipes

16′ Dulciana (ext Pos 8′) 12 pipes

16′ Sub Bass 32 pipes

16′ Bourdon Great

8′ Principal 32 pipes

8′ Sub Bass (ext 16′) 12 pipes

8′ Viola Swell

8′ Dulciana Positiv

8′ Bourdon Great

4′ Fifteenth (ext 8′) 12 pipes

4′ Flute Great

16′ Trombone 32 pipes

16′ Bassoon Swell

8′ Trumpet (ext 16′) 12 pipes

8′ Bassoon Swell

4′ Clarion (ext 16′) 12 pipes

4′ Clarinet Positiv

8′ Great to Pedal

8′ Swell to Pedal

4′ Swell to Pedal

8′ Positiv to Pedal

16′ Swell to Great

8′ Swell to Great

4′ Swell to Great

8′ Positiv to Great

8′ Swell to Positiv

Great/Positiv Transfer

(a) C1–G#9 from 8′ Open Diapason

(b) extension of Pedal Trombone unit

(c) C1–B12 resultant from Open Wood Bass



Three manuals, 37 ranks, 2,107 pipes

Positiv Sharp Mixture II

C1 19.22

C25 15.19

F#31 12.15

A46 08.15



Swell Mixture III

C1 15.19.22

C13 12.15.22

C37 08.12.15

C49 01.08.12



Great Chorus Mixture IV

C1 19.22.26.29

C13 15.19.22.26

G#33 12.15.19.22

F#43 08.12.15.19

C#51 05.08.12.15



Builder’s website: www.gluckpipeorgans.com

Cathedral website: https://superiorcathedral.org

Photo by John Kawa.

Paul Fritts & Company Organ Builders, Tacoma, Washington; Hillsdale College, Hillsdale, Michigan

From the builder

Paul Fritts & Company Organ Builders has recently completed the last of two new significant organs, the firm’s Opus 44 and Opus 45, for Christ Chapel at Hillsdale College in Hillsdale, Michigan. The chapel was completed in 2019 and provides seating for 1,350 within the 27,500-square-foot building. Designed by architect Duncan Stroik, the interior of the classically inspired chapel is modeled after St. Martin-in-the-Fields in London and Christ Church, Philadelphia. The 64-foot-high barrel vault ceiling, stone columns, wooden pews, and polished marble floors provide the space with excellent acoustics, especially in the elevated chancel at the front of the nave. In addition to regular services, the chapel provides space for college ceremonies and concerts. Consultant for the organ projects Dr. Paul Thornock and the builder worked extensively together with the architects throughout all phases of the project to insure the best possible musical and logistical results.

The design phase for these two projects was extensive. Never before were we tasked with building cases designed by the architect of the building where they stand. This requires a unique collaboration due to the tonal and structural requirements of an organ often unfamiliar to architects. The work ended well, problems were solved, and we are proud of the collaboration and how it has expanded our design scope.

Early on when the building was being designed it was determined that rather than making one very large organ, the needs of the program would be better served by two organs. Opus 44, completed concurrently with the new building in 2019, is conceived as a “choir” organ and speaks from the side of the chancel where it is in close proximity to small and large ensembles. Its 30 stops are divided between three divisions: the Great at impost level, the Swell above, and the Pedal divided on either side. The organ case is made of sapele mahogany to match all of the woodwork throughout the chapel. Its musical resources are designed to support a wide variety of service music and organ repertoire. The organ serves admirably as a solo and concert instrument in its own right, and it was dedicated with a concert by Nathan Laube on April 15, 2021.

To provide support for singing for a full congregation and to serve as a concert instrument, the Gallery Organ, Opus 45, has three manuals and pedal. Installation and tonal finishing were recently completed in October 2022. It, too, is housed in a sapele mahogany case with a large “broken” pediment, columns, and architectural capitals. The polished tin façade pipes are the lowest notes of the Great and Pedal Principal 16′ stops, both of which are independent. The en fenêtre keydesks of both organs are in the front center of the cases.

Both organs feature suspended mechanical key actions providing a light but easily controlled touch while sending tactile feedback to the player. Stop actions are mechanical with the inclusion of “intelligent” solenoids and 999-memory-level combination actions. General and divisional pistons, coupler and 32′ reversible toe studs, and a sequencer with multiple “forward” pistons and studs are part of both combination systems.

The stoplists were drawn up by the consultant and the builder. Both organs have substantial principal choruses on each of their divisions along with a variety of flute and string stops and are capped with a generous array of reed stops. The Gallery Organ includes both a large-scale 32′ Subbaß and an independent 32′ Posaune. Both French and German Trompets at 8′ reside in the Great, and a French-style 8′ Cromorne in the Positive as well as a Cavaillé-Coll inspired 8′ Hautbois in the Swell and 8′ Flûte Harmonique in the Great. There is also a Renaissance-style 8′ Trompet with duck-billed shallots included in the Swell. All are voiced with full-length resonators for a full yet colorful sound that blends appropriately with the overall organization of voicing style and related pipe design throughout. Compact design with reasonable access was important for space reasons and focus of the sound.

The Gallery Organ is similar in its layout to the Choir Organ, with the organ’s three manual divisions triple decked in the center with the Positive at the lowest (impost) level, the Great above, and the Swell at the top of the 38-foot-tall case. The Pedal division is divided on either side of the manual divisions. The 32′ Subbaß bass octave is placed on two windchests (C and C-sharp) at floor level at the rear of the case. Directly in front of the large Subbaß pipes, the 32′ Posaune stands on two windchests at floor level, the tallest of the tin resonators reaching to the top of the case.

The large pipes in the center façade are the lowest nine pipes (C to G-sharp) of the Great 16′ Principal. The largest four pipes of the Pedal 16′ Principal (C to D-sharp) are wooden, made of sugar pine, mounted inside the case. The Pedal façade pipes begin at E and continue to tenor f. The four smaller façade pipes in the outer fields and closest to the center field continue the Great 16′ Principal up to tenor e.

The pipes for both organs were made entirely in the Fritts workshop, the metal ones constructed of two alloys—high lead and high tin—that have been cast on sand. The process dates to ancient times and was the method used for the pipe making of Gothic and Renaissance organs and continued in some instances well into the Baroque period. The very rapid cooling of the pipe metal on the sand bed (compared to a relatively long cooling period on a cloth-covered table) produces material with a smaller crystalline structure, which has discernible benefits to the sound of the pipes. The speech of the pipes is enhanced with the pipes reaching their steady-state tone seemingly more quickly with less fuss, and with less obtrusive harshness and speech noise. Windways can be generous and pipe toes open encouraging a free, colorful, and unforced sound on relatively low wind pressures. The overall impact of the organs can then be determined by wind pressure and to a lesser degree pipe scales.

The Gallery Organ has five wedge-shaped bellows, all positioned within the case. The Great and Positive divisions share two bellows that have been carefully balanced to work together for good support of these divisions. The Pedal division makes use of one similarly sized bellows for the C and C-sharp sides and the Swell has its own bellows. The bass octave pipes of the 32′ Subbass are directly winded from the blower’s static pressure windline, which provides them with 120 mm (4¾ inches) of wind pressure. The Great and Positive divisions are winded at 74 mm, the Swell on 70 mm and the Pedal division on 76 mm.

The two organs are pitched identically at 440hz @ 70°F. Both utilize Kellner’s “Bach” temperament.

The Gallery Organ is provided with a dedicated air conditioning system that was planned at the outset and built as a part of the chapel construction. During summertime, air-conditioned air is circulated throughout the organ case and is regulated by a thermostat high in the Swell. During the heating season, air will continue to circulate throughout the case to control temperature stratification. Experience with similar systems in our organs has shown this to be critical for keeping vertically separated divisions in tune with one another.

The success of an organ project, or in this case, two projects, depends upon a great number of contributing factors. Chief among them is installing the organs in advantageous locations in a great space. A well-developed design and tonal plan along with meticulous craftsmanship and expert voicing and tonal finishing lead to outstanding results. The melding of the countless and seemingly disparate elements into a cohesive whole that is greater than the sum of its parts is the special alchemy that is superb organ building.

Special thanks go to the administration of Hillsdale College for their foresight and vision in commissioning these instruments and to project advisor, Dr. Paul Thornock. Thanks and appreciation also go to the staff of Paul Fritts & Company: Greg Bahnsen, Zane Boothby, Rain Daley, Paul Fritts, Raphi Giangiulio, Erik McLeod, Andreas Schonger, Bruce Shull, Ben Wooley, and to our bookkeepers and business managers, Robyn Ellis and Marlon Ventura. Carving work was provided by Dimitrios Klitsas.

The completion of the Gallery Organ will be celebrated with an inaugural concert by Nathan Laube on April 13, 2023.

—Paul Fritts

From the consultant

The Hillsdale organ project began with a phone call from the architect who expressed the desire for a new organ to be as special and specialized as the building itself. The desire for mechanical action was in place before the consultant was hired.

An organ in the new Christ Chapel would be required to do many things, including playing for academic ceremonies, accompanying the college’s choirs and orchestras, playing repertoire, and serving as a teaching instrument. Hillsdale College President, Dr. Larry P. Arnn, believes that, “To elevate the hearts and minds of the faithful, Christ Chapel must be a home for musical beauty of the highest order.” Further, his desire to create a regularly sung evensong in the chapel was given considerable weight. The college’s large symphony orchestra also had to fit in the chancel.

The available space in the chancel precluded building a single large instrument in the front of the building that would completely fulfill the musical mission. Further, there was no appetite for placing an organ on the main axis at the front of the building. The only solution was two organs of complementary but distinct characters.

This visionary project was truly an “if you build it, they will come” affair. The college wished to build a sacred music program, and the administration understood that the infrastructure had to be in place to do it. Therefore, an organ professor was not yet in place during the design phase. The committee, which consisted of the architect, consultant, and various administrators, traveled throughout the Midwest to see and hear dozens of instruments by six of North America’s distinguished builders. It is fascinating how committees often have an “Aha!” moment in visiting a particular organ; this moment happened when they visited the Fritts organ at the DeBartolo Performing Arts Center at the University of Notre Dame.

The result is a workhorse two-manual organ in the chancel with an efficient but developed Swell division that enables the organist to render choral accompaniments convincingly and to play the many liturgical events in the chapel, including evensong. The instrument also has sufficient power to pair with the orchestra. The Gallery Organ is the heroic instrument the college desired for large convocations and concerts.

Dr. Arnn’s ideals are borne out in these examples of the organ art: “There never has been a great university unconcerned with the question of the Divine. More than one-third of our students are involved in music—an invaluable gift that helps us to contemplate beauty, harmony, and meaning. To that same end, our splendid organs will help point man’s thoughts toward God.”

—Paul Thornock

From the architect

Christ Chapel at Hillsdale College, Michigan, is the first freestanding chapel in the college’s 175-year history. Located on the main axis of campus and forming a new quadrangle, the classical brick and limestone exterior features a domed circular entrance portico with Doric columns. Three concave entry doors lead into an elegant barrel-vaulted nave with limestone columns and mahogany side balconies. Large arched windows fill the space with natural light.

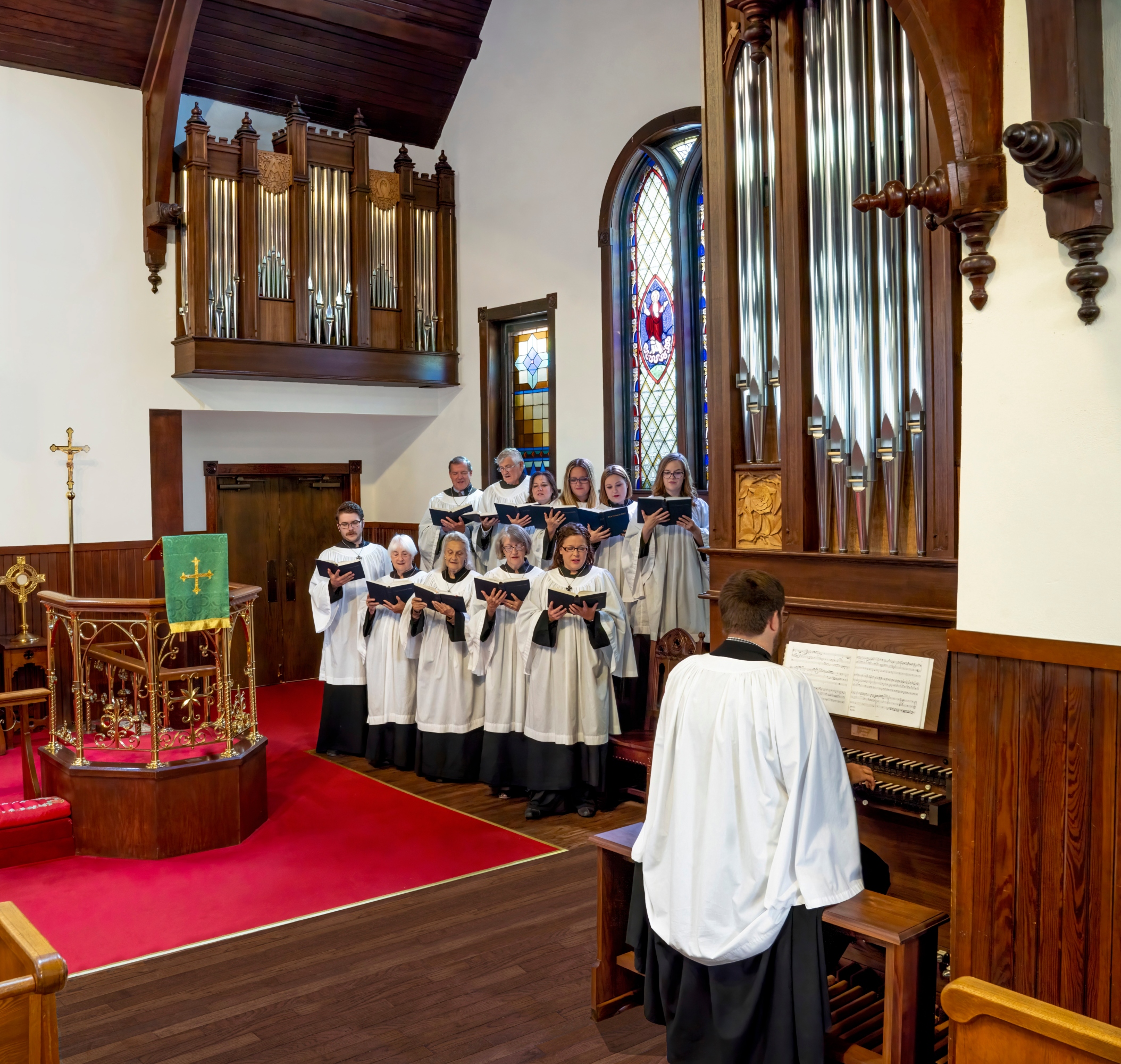

The Choir Organ is located along the side wall of the chancel and framed by a limestone arch and Doric columns engaged to the wall. The case is 24 feet tall by 13 feet wide. Carved mahogany Corinthian columns divide the façade of the organ case into a taller central section and two side wings. This architectural motif (called a “Serliana”) is found throughout the chapel, such as on the second level of the main exterior façade, and the window above the altar in the chancel. A gold leaf inscription in the frieze of the entablature of the organ case reads: Laudate eum in Chordis et Organo (“Praise him with strings and pipes,” Psalm 150). Carved mahogany laurel wreaths punctuate the pedestal of the organ. Limestone relief panels in the chancel show a harp, trumpets, cymbals, and floral swags, visually depicting the praise of God called for in the psalm.

The Gallery Organ case harmonizes with the Choir Organ but is much larger, 30 feet tall by 30 feet wide. Its overall shape is also a Serliana motif. It has four 15-foot-tall fluted composite columns. An elaborate entablature and broken pediment with a receding apex are above. It also has an inscription across the pulvinated frieze: Cantate Domino Canticum, Novum Quoniam Mirabilia Fecit (“Sing to the Lord a new song, for he has done great wonders,” Psalm 98).

While there are some examples of college chapels with two organs in the United States, there are few examples of the organs being conceived together. The architect has designed five other cases in the United States for both new and historic organs, and was inspired by the Saint-Sulpice grand orgue case by the architect Jean-François Chalgrin. The two new organs will be the centerpieces of Hillsdale’s expanding music program.

—Duncan G. Stroik



Builder’s website: www.frittsorgan.com

Architect’s website: www.stroik.com

College website: www.hillsdale.edu



Choir Organ, Opus 44

GREAT (Manual I)

16′ Bourdon

8′ Principal

8′ Salicional

8′ Rohrflöte

4′ Octave

4′ Spitzflöte

2-2⁄3′ Quinte

2′ Octave

Mixture IV

8′ Trompet

4′ Trompet

SWELL (Manual II)

8′ Principal

8′ Gamba

8′ Voix celeste

8′ Gedackt

4′ Octave

4′ Rohrflöte

2-2⁄3′ Nasard

2′ Gemshorn

1-3⁄5′ Tierce

Mixture III–IV

16′ Fagott

8′ Trompet

8′ Basson/Hautbois

PEDAL

16′ Subbass

8′ Principal

8′ Bourdon*

4′ Octave*

16′ Posaune

8′ Trompet

*Some pipes transmitted from other stops

Couplers

Swell to Great, Great to Pedal, Swell to Pedal



Polished tin front pipes

Suspended, direct mechanical key action

Mechanical stop action with electric pre-set system

Tremulant

Compass: Manual 58 notes; Pedal: 30 notes

Gallery Organ, Opus 45

GREAT (Manual I)

16′ Principal

8′ Octave

8′ Salicional

8′ Rohrflöte

8′ Flûte Harmonique

4′ Octave

4′ Spitzflöte

3′ Quinte

2′ Octave

Mixture VI–VIII

Cornet V

16′ Trompet

8′ Trompet

8′ Trompette

SWELL (Manual III)

8′ Principal

8′ Gedackt

8′ Baarpijp

8′ Violdigamba

8′ Voix celeste

4′ Octave

4′ Koppelflöte

2-2⁄3′ Nasat

2′ Octave

2′ Blockflöte

1-3⁄5′ Terz

Mixture V–VI

16′ Trompet

8′ Trompet

8′ Hautbois

8′ Vox Humana

POSITIVE (Manual II)

8′ Principal

8′ Gedackt

8′ Quintadena

4′ Octave

4′ Rohrflöte

2-2⁄3′ Nasat

2′ Octave

2′ Waldflöte

1-1⁄3′ Larigot

Sesquialtera II

Mixture VI–VII

16′ Dulcian

8′ Trompet

8′ Cromorne

PEDAL

32′ Subbaß*

16′ Principal

16′ Subbaß

8′ Octave

8′ Bourdon*

4′ Octave

4′ Nachthorn

Mixture VI–VII

32′ Posaune

16′ Posaune

8′ Trompet

4′ Trompet

2′ Cornet

*Some pipes transmitted from other stops

Couplers

Swell to Great

Positive to Great

Swell to Positive

Great to Pedal

Swell to Pedal

Positive to Pedal



Polished tin front pipes

Suspended, direct mechanical key action

Mechanical stop action with electric pre-set system

Swell Tremulant

Great & Positive Tremulant

Wind Stabilizer

Compass: Manual 58 notes; Pedal: 30 notes





Opus 44 Choir Organ:

30 stops; 38 ranks; 1,854 pipes

Opus 45 Gallery Organ:

57 stops; 85 ranks; 4,115 pipes

Buzard Pipe Organ Builders, Champaign, Illinois; Pilgrim Lutheran Church, Carmel, Indiana, Opus 45, 2017; Central United Methodist Church, Fayetteville, Arkansas, Opus 46, 2018–2019

Opus 45

“What have you done here!?,” asked Todd Wilson as he leapt off the organ bench to greet me the day before Opus 45’s dedication. Hoping this was a friendly question, I asked to what exactly he was referring. “This organ just about plays itself!” Yes, it was a very friendly question and a complimentary one—even better.

What Mr. Wilson was referring to speaks to the heart of our organs’ playing mechanisms. Opus 45 was the first of our new organs in which our proprietary “Pallet Unit Chests” were used alongside our electrically operated slider and pallet windchests. More about this later.

Pilgrim Lutheran Church’s new long-hoped-for campus became a reality upon sale of their previous facility, the land being needed for a new entrance ramp to I-465. Early during their planning process, the organ committee selected Buzard Pipe Organ Builders for the instrument, and their architect, Jack Munson of Indianapolis, Indiana, asked us for dimensional and acoustical specifications. Imagine my delight and surprise when nearly ten years later Pilgrim Church’s cantor, Sarah Gran-Williams, called to tell me they were “ready for the organ!” And, imagine my further delight to discover Jack Munson had followed all of our recommendations, producing an intimate but lofty room, featuring four seconds of even reverberation, a nearly silent HVAC system and a perfect space for the organ case, choir, piano, and organ console!

The instrument at Pilgrim Lutheran Church in Carmel, Indiana is the 45th new pipe organ built by Buzard Pipe Organ Builders of Champaign, Illinois. It comprises 31 independent speaking stops and 37 ranks of pipes, distributed across two manual keyboards and the pedal keyboard. The instrument is housed in a free-standing case made of poplar, red oak, and walnut measuring 24 feet wide, 12 feet deep, and 35 feet tall. It was designed in concert with the building’s Prairie style architecture; every shape, line, and element of the room’s design is present in the organ case.

The Great and Pedal divisions are located in the top level of the case. The Swell division is placed in the center above the impost. The lower level contains the winding and mechanical systems and the Pedal 16′ Trombone. The blower and static reservoir are installed in a room located away from the sanctuary. The upper façade comprises polished tin pipes from the Great 8′ Open Diapason; the copper Festival Trumpets bisect the case in its center; the lower façade and two towers feature pipes from the Pedal 16′ Open Diapason beginning at low E (low C through D# are made of wood and lie horizontally behind the case) and the 8′ Pedal Principal.

We housed the color stops of the Great division in an expression box to provide additional expressive quality and accompanimental flexibility to this two-manual organ. Throughout our history we have tried to be “Traditional Visionaries” in situations in which space or financial resources were limited, resulting in subdivided Swell and Great divisions. This technique, originally utilized to overcome limitations, is becoming more a hallmark of our tonal style, in which equal emphasis is placed upon musical rendering of solo literature, accompanying, and congregational singing.

Buzard organs are custom designed, scaled, and voiced for each individual congregation’s musical tradition and acoustical environment. This means they differ one from another in execution, but an unmistakable musical thread runs through every Buzard pipe organ. The stop names are consistent from organ to organ, but the scaling and voicing of each is entirely determined by the specific circumstances that impact the creation.  In this way, Buzard organs are works of functional art, designed and crafted to each and every client’s identity, while at the same time demonstrating a consistent personality of tone quality and artistic style.

This instrument honors its Lutheran patrimony by a slightly brighter outlook in the Principal choruses, inclusion of a German Romantic Clarinet and Oboe, and the slightly lighter 16′ Pedal registers. But it is a Buzard organ through and through in the enveloping warmth and majesty of Full Organ, its delicacy and sensitivity of tone in softer registrations, and its thrilling Swell reed battery. It has been called “a cathedral organ in a parish church.”

Back to Mr. Wilson’s observation of the playing actions. Buzard organs use electrically operated slider and pallet windchests to eliminate leather, providing an action that encourages sophisticated tonal results and stable tuning. Beginning with Opus 45, our organs’ unit stops (stops which play in multiple locations or at multiple pitches) and Pedal stops are played on actions identical to the slider chests—but without the slider stop actions. Our “Pallet Unit Chests” provide a key-channel expansion chamber for the wind for every pipe, just as the main slider chests, and they utilize identical magnets as the slider chests to open the unit chests’ pallets, giving the unit stops the exact same speech and repetition characteristics as the main slider chests. We are pioneers in the development of sensitive and responsive electric key actions. One can truly feel the difference; the musical result is palpable.

Our pipes are made of thick, high tin-content pipe metal (as well as wood and copper) rather than zinc. We support them in felt-lined traces and European racking systems that prevent the pipes from collapsing and further firms the tone produced. Additional support for the large façade pipes is provided by lining the interior of the feet with copper.  Although far more expensive than the metal zinc, we believe traditional tin-rich pipe-metal produces better tone and is more in keeping with the permanent nature of a pipe organ investment.

We regulate our wind supply using single-rise reservoirs, schwimmer regulators, and concussion bellows to deliver a copious and steady wind supply, with a fine degree of flexibility. Our Tremulant actions send an adjustable timed-pulse to electric solenoids under the schwimmers, which both push and pull on the schwimmer plate to provide a perfect sine wave much like the human voice singing with “vibrato.” These actions are absolutely silent in their operation and extremely effective in both flue and reed stops.

Expression shutters are made of 2-inch-thick poplar, laminated to prevent warpage during seasonal changes, with heavily felted sound traps. Our expression boxes’ walls and ceilings are made of 1-inch MDF (the equivalent of 2 inches of solid hardwood) with 1½-inch-thick poplar stiles and rails, to produce an extremely effective swell expression. The shutters are moved by adjustable electric servo-motors.

Buzard organ consoles are intuitive in their layout and solidly built to last for generations. Their proprietary ergonomics of manual-to-pedal alignment allow for many playing hours without fatigue. The logical layout of drawknobs and couplers, toe-studs and expression pedals, encourages both technical accuracy and musical playing. Keyboards are plated in thick bone and ebony; the cabinets are made of 1½-inch-thick hardwoods.

We build all of our organs in sound reflective and protective cases, even when the organs are installed in chambers, as you will see we did in the second organ featured in this article for our Opus 46 organ at Central United Methodist Church in Fayetteville, Arkansas. We do this to provide excellent projection of sound into the room especially when chambers are located off the axis of the room (as in Opus 46) and to protect the organ from severe temperature fluctuations and potential building failure such as leaking roofs.

Cantor Sarah Gran-Williams said it best: “Buzard Organs sing, and they help us sing!” And, as Todd Wilson said: “This organ just about plays itself!”

Opus 46

In our Opus 46 organ at Central United Methodist Church in Fayetteville, Arkansas, we were given the wonderful opportunity to explore the nature of what a third manual keyboard could be, in light of our practice of enclosing a substantial portion of the Great. More than half of the Great is enclosed in an independent expression box with its own slider windchest. This allows the Enclosed Great to couple to any location we want and at any pitch. The Enclosed Great includes a flute chorus, a string, and four colorful reeds, so it can function like the unison basis of a Choir division. Additionally, by modifying and adding to the inhabitants of the Swell division’s Principal chorus, the Swell can serve as a Positiv division in the context of the classic secondary foil to the Great Diapason Chorus—as well as the enclosed powerhouse of the organ.

Therefore, with an enclosed portion of the Great, and suitable treatment of the Swell, we were free to consider a different way to approach the third manual division. This Solo division is loaded with tone colors at both higher and lower volume levels than the Great or Swell, so it can be a material contributor on the pianissimo and fortissimo ends of a seamless crescendo/diminuendo. When approached with this idea, organist Scott Montgomery embraced this vision—our next logical step in the evolution of the “Buzard Sound” and contemporary American organbuilding. Because the Enclosed Great and the Swell can move everywhere independently, Scott began to dream and consider the manifold uses to which such a tonal scheme could be used. Accompanying receives the first consideration of importance, because the rich choral program under Dr. Frode Gundersen’s direction regularly performs literature from literally every tradition. The organ can accompany the entire body of choral literature, and it can support hymnody and musically render just about any piece ever written for the organ. This is our goal. You can accompany Stanford and then play Vierne successfully; you can play Sweelinck for the opening voluntary and Sumsion for the closing voluntary, each with the effects the composer intended. And, because the instrument speaks clearly to the listeners in the nave—even though installed in off-axis chambers—the entire organ has an uncanny single voice, no matter how soft or loud it is registered.

In addition to exercising our evolving tonal style, Tonal Director Brian Davis and Production Director and Chief Engineer Charles Eames overcame what had seemed an impossible off-axis installation situation. Special scaling and voicing techniques, the addition of reflective panels above the pipes in the chambers, siting the divisions strategically for their best projection, constructing the organ in solid cases within the building’s chambers, utilizing slightly higher wind pressures and other techniques—and the tremendous improvement in the church’s acoustics provided by a comprehensive sanctuary renovation project—gave the organ the best chance of success.

When Scott Montgomery heard the organ’s first sounds as the organ came to life, all his fears concerning the off-axis installation were dispelled. He knew this would be a very special and important organ in the American lexicon. We rise to challenges and consider them opportunities to learn and improve. We’d love for you to visit this organ! Just call ahead!

—John-Paul Buzard, Founder, President, and Artistic Director, Buzard Pipe Organ Builders

Builder’s website: buzardorgans.com/

Pilgrim Lutheran Church: pilgrimindy.org/

Central United Methodist Church: centraltolife.com/

Photo credit: John-Paul Buzard



Opus 45, Pilgrim Lutheran Church, Carmel, Indiana

31 independent speaking stops, 37 ranks

GREAT – 3½″ wind

16′ Lieblich Gedeckt (wood)

8′ Open Diapason (façade)

8′ Flûte à Bibéron

8′ Gedeckt Flute (ext 16′ Gedeckt)

8′ Viola da Gamba

4′ Principal

4′ Spire Flute

2-2⁄3′ Twelfth

2′ Fifteenth

1-1⁄3′ Fourniture IV

16′ English Horn

8′ Minor Trumpet (ext Sw 16′ Bassoon)

8′ Clarinet

Tremulant

Cymbalstern (14 bells)

8′ Festival Trumpets (copper, chamade)

SWELL (expressive) – 3¾″ wind

8′ Open Diapason

8′ Stopped Diapason (wood)

8′ Salicional

8′ Voix Celeste (TC)

4′ Principal

4′ Harmonic Flute (round mouths)

2-2⁄3′ Nazard

2′ Octavin (harmonic)

1-3⁄5′ Tierce

2-2⁄3′ Grave Mixture II

1′ Plein Jeu III

16′ Bassoon

8′ Trompette

8′ Oboe

4′ Clarion (ext 16′ Bassoon)

Tremulant

8′ Festival Trumpets (Gt)

PEDAL - various pressures

16′ Open Diapason (wood and façade)

16′ Bourdon (wood)

16′ Lieblich Gedeckt (Gt)

8′ Principal (façade)

8′ Bass Flute (ext 16′ Bourdon)

8′ Gedeckt Flute (Gt)

4′ Choral Bass (ext 8′ Principal)

4′ Open Flute (ext 16′ Bourdon)

16′ Trombone (wood)

16′ Bassoon (Sw)

8′ Trumpet

4′ Clarion (ext Sw 16′)

8′ Festival Trumpets (Gt)



Opus 46, Central United Methodist Church, Fayetteville, Arkansas

43 independent speaking stops, 49 ranks

GREAT – 5″ wind

16′ Lieblich Gedeckt

8′ Open Diapason (façade)

8′ Flûte à Bibéron

8′ Gedeckt Flute (ext 16′)

8′ Viola da Gamba

4′ Principal

4′ Spire Flute

2-2⁄3′ Twelfth

2′ Fifteenth

1-1⁄3′ Mixture IV

16′ English Horn

8′ Trumpet

8′ Clarinet

8′ Vox Humana

Tremulant

Tremulant

Cymbalstern (Walker)

Chimes (Walker)

8′ Tromba (Ped 16′ Trombone)

4′ Tromba Clarion (ext 8′ Tromba)

8′ Major Tuba (Solo)

SWELL (expressive) – 6″ wind

8′ English Open Diapason

8′ Stopped Diapason

8′ Salicional

8′ Voix Celeste (CC)

4′ Principal

4′ Harmonic Flute

2-2⁄3′ Nazard

2′ Doublette

2′ Octavin (harmonic)

1-3⁄5′ Tierce

2-2⁄3′ Grave Mixture II

  1′ Plein Jeu III

16′ Bassoon

8′ Trompette

8′ Oboe

4′ Clarion

Tremulant

8′ Tromba

8′ Major Tuba (Solo)

SOLO (expressive) – 7″ wind

8′ Grand Open Diapason (double mouths)

8′ Harmonic Flute

8′ Viola da Gamba (E. M. Skinner style)

8′ Gamba Celeste (CC) (E. M. Skinner style)

8′ Flûte Cœlestis (double mouth, wood)

4′ Principal Forte

4′ Flûte

Tremulant

8′ Major Tuba (15″ wind pressure)

8′ Harp (Walker)

4′ Celesta (Walker)

8′ Chimes (Walker)

PEDAL – 5″ wind

32′ Double Open Diapason (Walker)

32′ Subbass (Walker)

32′ Lieblich Gedeckt (Walker)

16′ Open Diapason (Walker)

16′ Bourdon

16′ Lieblich Gedeckt (Gt)

8′ Principal (façade)

8′ Bourdon (ext 16′)

8′ Gedeckt Flute (Gt)

8′ Spire Flute

4′ Choral Bass (ext 8′ Principal)

4′ Open Flute (ext 8′ Bourdon)

32′ Contra Trombone (Walker)

16′ Trombone (7″ wind)

16′ Bassoon (Sw)

8′ Tromba (ext 16′ Trombone)

8′ Trumpet

4′ Clarion (ext 16′ Trombone)

8′ Major Tuba (Solo)

8′ Chimes (Walker)

Photo: Opus 46, Central United Methodist Church, Fayetteville, Arkansas
