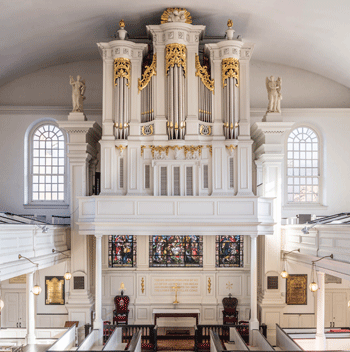

A. Thompson-Allen Company restores Skinner Opus 862

A. Thompson-Allen Company, New Haven, Connecticut; Saint Peter’s Episcopal Church, Philadelphia, Pennsylvania

Philadelphia’s Society Hill

Society Hill is Center City Philadelphia’s oldest residential neighborhood, a one-quarter square-mile area that was first settled in the 1680s. It took its name from the Free Society of Traders, an association of merchants and landowners chosen by William Penn to shape the future of that growing city. During the nineteenth century, as Philadelphia’s population expanded westward away from the Delaware River, the area became rundown and disreputable, and by the end of the Second World War was one of that city’s worst slums. A successful urban renewal program begun in the 1950s largely returned Society Hill to its former character. Today it is known for its expanse of eighteenth- and early nineteenth-century row houses, traversed by narrow cobblestone streets lined with brick sidewalks and punctuated by street lamps after a design by Benjamin Franklin.

Saint Peter’s Church

Saint Peter’s Episcopal Church, at the corner of Third and Pine Streets, was originally intended as a “chapel of ease” for nearby Christ Church and was built to accommodate the burgeoning congregation of that parish. On land donated by two of William Penn’s sons, architect-builder Robert Smith (1722–1777) designed a church based upon Christopher Wren’s “auditory” style. With this plan, sightlines and speech clarity are of primary importance, especially for a worship service focused upon Scripture and preaching. The first services in the church were held on September 4, 1761.

It is an edifice of breathtaking elegance in its simplicity. To stand within its sun-drenched walls, absorbing the ambience of centuries, is to experience a whiff of eighteenth-century Philadelphia. Many civic luminaries have been members of Saint Peter’s. Mayor Samuel Powel, who lived just down Third Street, often shared his family’s pew with George and Martha Washington.

Saint Peter’s is one of two churches of its type surviving in America, the other located in Cooper River, South Carolina, built in 1763. In these churches, the pulpit and lectern are at the opposite end of the main aisle from the altar, which is placed against the east wall, beneath a large Palladian window. Most of the tall box pews have seating on three sides. Following the readings and sermon, the congregation turns and faces the altar for the rest of the service.

In 1832 Saint Peter’s and Christ Church parted ways and became separate parishes. Ten years later, the vestry commissioned William Strickland to build a new tower to accommodate a chime of eight bells given by Benjamin Chew Wilcocks. The soaring 210-foot tower and steeple are conspicuously out of scale with Robert Smith’s church, perhaps to allow the bells to be heard at a greater distance, or possibly to reflect the congregation’s desire to establish a strong visual presence in its neighborhood.

Earlier instruments

The first permanent organ for Saint Peter’s was constructed by Philip Feyring (1730–1767), who died the year it was completed. His two-manual instrument consumed almost half of the north gallery and caused regular complaints from those seated nearby that it was too loud. In 1774 the vestry voted to remove the organ and put it into storage until it could be sold. Fortunately, nothing happened for fifteen years, and then in 1789 Feyring’s organ was moved to a newly constructed organ loft above the altar, where it continues to cover most of the Palladian window behind it.

This instrument served Saint Peter’s for more than fifty years and in 1815 was either rebuilt or replaced (vestry records are sometimes incomplete). Little is known about this second instrument apart from its short career in the church. In 1829 London-trained organ-builder Henry Corrie furnished a new instrument using some of the pipes from the 1815 organ. Corrie’s work served for twenty-seven years, but in 1855 local builder John C. B. Standbridge reported that it was beyond repair. The following year he signed a contract for a new instrument, dedicated in 1857.

Hilborne Roosevelt rebuilt the Standbridge organ in 1886 and added a third manual to the console. Within two years, however, the vestry began to consider replacing the “double quartet” that stood with the organ in the loft, with a men-and-boys choir on the main floor of the church. Charles S. Haskell, a former employee of the Roosevelt firm, electrified the organ in 1892 and provided a four-manual console placed among the new choir stalls on the main floor. Additions in 1911 included a small Echo Organ, located within the walls of the original tower immediately behind the pulpit door, and a Choir Organ, placed unfortunately beneath an iron grate under the choir stalls in a basement chamber.

The Choir Organ suffered from constant dampness and regular water seepage, especially following a heavy rainfall. Eight years after the Choir Organ was installed, Haskell had to remove portions of that division for repairs. A contract dispute between Haskell and the vestry ensued in 1921, with the builder refusing to return the parts taken from the church. About 1928 the Choir Organ was completely removed, and its chamber abandoned.

The Skinner organ

Weary of their troublesome instrument, parts of which were very old, the vestry contracted with the Skinner Organ Company to build an entirely new instrument, their Opus 862, finished in November 1931. It is a three-manual, 49-stop organ placed entirely within the organ case, which was enlarged (probably in the 1892 rebuilding) by bringing the façade forward to the edge of the organ loft. Nothing except Feyring’s case remains of the earlier instruments, and there is credible speculation that even it was made by David Tannenberg of nearby Lititz, Pennsylvania.

As the Skinner organ approached fifty years old, its pneumatic leatherwork began to fail. Saint Peter’s vestry was committed to keeping the organ in good order, and much of the instrument was releathered as necessary to keep the organ playing reliably. At ninety-one years, the Skinner organ holds the record for the longest tenure of all of Saint Peter’s instruments. The current work is the first comprehensive restoration of this organ.

—Joseph F. Dzeda

The restoration of Opus 862

The mechanism and pipework were found to be mostly complete. The original “vertical selector” electro-pneumatic console was long gone and had been replaced, first by an Austin tab console in the 1970s, and then by a solid-state console by David Harris in 1985. Richard Houghten updated and rebuilt this console in 2017, and it remains as such. All of the components of the 1931 chassis remain and have been fully restored.

Opus 862 underwent tonal changes characteristic of their time. The 4′ Flute on the Great was replaced by a high-pitched mixture, and the Great 8′ Tromba, enclosed in the Choir expression box, was revoiced as a bright Trumpet. The Choir Nazard was replaced by a 4′ Principal. The Class A Deagan Cathedral Chimes were removed, along with their electric action, from the Swell box, and the Harp/Celesta was removed from the Choir box in preparation for tonal additions that were never realized.

The pipework was mostly complete and has been restored to the original specifications except for one missing stop, the Swell Aeoline. This stop was a 75-scale string, also sometimes called Echo Gamba or Dulcet. These are very rare. We did replace it with a 75-scale Dulcet from an earlier Skinner. Also missing were the Harp and Chimes. These have been replaced with identical items from Opus 659.

The blower has been fully restored by Joseph Sloane, converting the original motor from two-phase to three-phase. The reeds have been restored by Chris Broome of Broome & Co., LLC, to the original specifications. The original reed tongues were gone and had been replaced with thinner tongues and reduced loading. Chris Broome has replaced these using the thickness and loading schedules as listed in the Skinner records. The goal of the restoration has been to restore the organ to “as built” condition throughout.

From the Skinner documents we have acquired, it is clear that Opus 862 was overseen and designed by Ernest Skinner personally. For point of reference, we are going to compare Opus 862 with Opus 836, Saint Peter’s Episcopal Church in Morristown, New Jersey. We are including the original voicer’s charts for both organs. Opus 836, again from factory documents, was clearly overseen by G. Donald Harrison. The two organs are similar in many ways. The strings and flutes are identical for the most part, but the chorus reeds and principal choruses are quite different. As indicated in the reed voicer’s charts, the Swell chorus reeds are “Skinner” in 862, and the Swell chorus reeds are “English” in 836. The “Skinner” reeds are harmonic at 2′ F-sharp and the “English” reeds are harmonic at 1′ F#, and the harmonic pipes are spotted metal. The “Skinner” reeds have different shallots and loading producing a rounder, fuller, and refined tone. The “English” reeds are brighter with more “clang” and are reproductions of Willis reeds. The specifications of the “English” reeds were part of the exchange established between Skinner and Henry Willis III during their quid pro quo arrangement of exchanging Skinner’s mechanical innovations with Willis’s pipe construction and reed voicing details. Both of these reed choruses are beautiful in their own way, but the differences are very obvious.

The same can be said for the principal choruses. If you compare the two flue voicer’s charts, you will notice that there are no 1/4 mouths in 862. The upper work is more restrained in 862, and conversely more pronounced in 836. The biggest and most noticeable difference is that if you run up the scale on any of the Diapason stops, 862 gently fades, while 836 is pushed to the limit. I believe that this is due to the Willis influence as carried out by Harrison. It is interesting to note that Harrison abandoned both of these tonal set ups after 1932. These are both beautiful Skinner organs from the same period but realized differently by Skinner and Harrison.

—Nicholas Thompson-Allen

Frederick Lee Richards’s 1992 paper, Old St. Peter’s Protestant Episcopal Church, Philadelphia: An Architectural History and Inventory (1758-1991), provided much of the historical information cited above.

Builder’s website: www.thompson-allen.com

Church’s website: www.stpetersphila.org

Photo credit: David Ottenstein Photography (©2022 David Ottenstein)



GREAT (5″ wind pressure)

16′ Bourdon (Pedal) 17 pipes

8′ First Diapason 61 pipes

8′ Second Diapason 61 pipes

8′ Principal Flute 61 pipes

8′ Erzähler 61 pipes

4′ Principal 61 pipes

4′ Flute 61 pipes

II Grave Mixture (2-2⁄3′ – 2′) 122 pipes

Enclosed in Choir box 10″ w.p.

8′ Tromba 61 pipes

8′ French Horn 61 pipes

Chimes (in Swell box) 20 tubes

SWELL (Enclosed) (71⁄2″ wind pressure)

16′ Echo Lieblich 73 pipes

8′ Diapason 73 pipes

8′ Rohrflöte 73 pipes

8′ Salicional 73 pipes

8′ Voix Celeste (CC) 73 pipes

8′ Aeoline 73 pipes

4′ Octave 73 pipes

4′ Flute Triangulaire 73 pipes

2′ Flautino 61 pipes

III Mixture (C-14) 183 pipes

16′ Waldhorn 73 pipes

8′ Cornopean 73 pipes

8′ Oboe 73 pipes

8′ Vox Humana 73 pipes

Tremolo

CHOIR (Enclosed) (6″ wind pressure)

16′ Contra Gamba 61 pipes

8′ Diapason 61 pipes

8′ Concert Flute 61 pipes

8′ Gamba 61 pipes

8′ Dulciana 61 pipes

8′ Unda Maris (TC) 49 pipes

4′ Flute 61 pipes

2-2⁄3′ Nazard 61 pipes

8′ Clarinet 61 pipes

8′ English Horn 61 pipes

Harp (TC) 49 bars

Celesta (CC) 12 bars

Tremolo

PEDAL (6″ wind pressure)

32′ Resultant

16′ Diapason (bearded) 32 pipes

16′ Bourdon 32 pipes

16′ Echo Lieblich (Swell)

16′ Contra Gamba (Choir)

8′ Octave (ext Diapason) 12 pipes

8′ Gedeckt (ext Bourdon) 12 pipes

8′ Still Gedeckt (Swell)

8′ Cello (Choir)

32′ Fagotto 12 pipes (10″ w.p., ext Sw Waldhorn)

16′ Trombone 12 pipes (10″ w.p., ext Gt Tromba)

16′ Waldhorn (Swell)

Chimes

49 stops, 38 ranks, 2,457 pipes

A. Thompson-Allen Company, New Haven, Connecticut; Derry Presbyterian Church, Hershey, Pennsylvania

Editor's note: Click on the link above to view the front cover of the April 1951 issue of The Diapason and announcement of Opus 1132 for the Church of the Redeemer, New Haven, Connecticut.

The organ’s first career

In 1951 New Haven’s Church of the Redeemer, founded in 1838, moved into a neo-colonial structure designed by prominent local architect Douglas Orr. The new church was located in the city’s East Rock neighborhood and quickly took its place among Orr’s other distinguished buildings that remain popular to the present day.

The church’s organist-choirmaster, Hope Leroy Baumgartner (1891–1969), was assigned the task of designing a suitable organ for the new sanctuary. A student of Horatio Parker and Harry Benjamin Jepson, Baumgartner was awarded a Bachelor of Music degree from the Yale School of Music in 1916. In 1919 he was appointed to the faculty as an associate professor where he taught composition and music theory with distinction until his retirement in 1960.

As a teacher, Baumgartner was famous for his attention to detail, so it is no surprise that he took an intense interest in the designing of Church of the Redeemer’s new organ, to be built by the Aeolian-Skinner Organ Company as their Opus 1132. The April 1951 issue of The Diapason carries a front-page article describing the completion of the new organ, noting:

The organ was designed by H. Leroy Baumgartner, organist and choirmaster of the church, associate professor of the theory of music at Yale University and noted composer. Professor Baumgartner spent several years developing the scheme for this instrument and provided detailed instructions for its construction, which included drawings specifying the placement of the controls at the console. A feature of the organ will be an unusually large number of mechanical controls, some of which were designed by Professor Baumgartner.

Baumgartner was especially known for accompanying oratorios as part of his music program, and he wanted an instrument that would facilitate complex registrational changes. Not only did he specify several highly unusual console controls, but he also had some idiosyncratic ideas about the design of the stoplist.

The founder of our company, Aubrey Thompson-Allen, was assistant to G. Donald Harrison while Opus 1132 was being negotiated. Harrison had become exasperated with Baumgartner’s incessant micromanaging of the details of the organ’s stoplist and console controls, ultimately placing a large stack of correspondence in Aubrey’s hands and asking him to go to New Haven to see if the contract somehow might be finalized and signed. Ultimately it was, and an order was given for an instrument of fifty-one speaking stops controlled by a three-manual console, with a floating Positive division that could be played from the Great or Choir manuals.

In an effort to wring the greatest number of stops from the complement of pipes, a number of compromises had to be made. To cite only one example, the 8′ Rohr Bordun in the Swell served also as the unison flute for the Great, Choir, and Pedal divisions, which had none of their own. To save expense, the design of the organ omitted the use of chest relays, with the result that this flute would not “travel” with any of the couplers and had to be drawn separately on any manual to which the Swell might be coupled.

For more than sixty-five years, Opus 1132 provided reliable and beautiful music under the hands of several musicians. Each of them learned to accommodate the organ’s peculiarities, including an amazingly complicated setterboard that controlled the combination pistons. The members of the Church of the Redeemer cherished their Aeolian-Skinner organ and maintained excellent stewardship of it, including a basic releathering of the chassis and the installation of a multi-level combination action in 2007, even as the congregation was beginning to contemplate its own future.

By 2018 the membership had dwindled to about 170 dedicated people, and they found it increasingly difficult to keep their large physical plant maintained to the standards they had set for themselves. After exploring possible mergers with other Congregational churches in the area, the members voted to close the church and sell the property, ending Redeemer’s 180-year history of service to New Haven. Consistent with the congregation’s strong commitment to its core values, more than $2.2 million was donated to other churches and entities having similar values and missions, including almost $800,000 set aside as the Church of the Redeemer Community Legacy Fund at the Community Foundation for Greater New Haven.

Unable to find a buyer willing to continue the building’s use as a church, after two years the congregation sold the property to a developer for conversion to apartments, with the stipulation that the external appearance of the church and its parish house would be preserved as a neighborhood landmark. The organ was offered for sale, and while several church delegations were enthusiastic about the instrument, none of them could undertake the project. As the deadline for interior demolition approached, the organ’s fate looked increasingly uncertain. Those who knew and loved Opus 1132 became anxious for the organ’s future.

In late September 2019, a committee from Derry Presbyterian Church in Hershey, Pennsylvania, which had been searching for an Aeolian-Skinner organ, heard about Opus 1132’s availability, and on October 4 visited Church of the Redeemer. Yale Institute of Sacred Music student Jerrick Cavagnaro engagingly demonstrated the instrument for the committee, and it was love at first sight. They were impressed by the organ’s musical qualities and excellent state of preservation, and in short order, contracts were drawn up and signed. On November 3 a farewell concert was played by several prominent local musicians, with members of the Derry Presbyterian Church present to formally receive the instrument. Removal of the organ began immediately afterwards, just as construction equipment started to appear on the property.

—Joseph F. Dzeda

Restoration and relocation of Opus 1132

The restoration of this fine Aeolian-Skinner was perfectly straightforward for us as we have restored a number of Skinner and Aeolian-Skinner organs over the last fifty years. After we removed the organ from Church of the Redeemer we proceeded to complete the restoration. We had releathered the organ ten years earlier, but this did not include restoration of the pipework and new gaskets for all the chests and windlines.

The flue pipes were cleaned, repaired, and fitted with new stainless slide tuners. The wood flutes were cleaned and shellacked, with the stoppers releathered. Then each stop was placed on my voicing machine to be regulated for power and speech. The wind pressures were reset to the factory records. All the pitman and unit chests had been fully rebuilt and were in perfect condition. Anything that was not done during the previous work was now completed, including new gaskets for all the pitman and unit chests and assorted windline flanges.

The original console and all relays and wiring were replaced. The old console was painted and was unsuitable to go with the other woodwork in the church. A new oak console with Peterson solid-state was built by Organ Supply Industries and was matched to the existing furniture in the new location. We made every attempt to replicate the appearance of an Aeolian-Skinner console, especially with knob, coupler, and piston layout.

We wanted to restore the organ tonally to the way that G. Donald Harrison had originally designed it. In the final specification the organ did not contain unison flutes on the Great, Choir, and Pedal. The unit Swell 16′ Rohr Bordun had to do the job on all manuals and pedal. GDH was dead set against this, and he eventually put the project in Aubrey Thompson-Allen’s (assistant to GDH) hands.

We have endeavored to complete the specification with the addition of:

• A new Skinner-style Choir 8′ Concert Flute.

• A repurposed 1930 Skinner Great 8′ Flute Harmonique.

• A repurposed Pedal 16′–8′ Bourdon, retained from the Hershey church’s former Reuter organ.

In its previous home the Pedal Bombarde was buried in a tone pocket in the Choir organ and was ineffective. We have relocated it, unenclosed, with the Pedal division just behind and slightly above the Great division. It is a fine “English Trombone” and is very successful in its new location. This and all of the other reeds in the organ have been beautifully restored by Broome and Company.

Relocating the organ designed for a completely different organ chamber presented many challenges, especially as Opus 1132 is much larger than the former organ. The entire organ was reconfigured and assembled in our erecting room. The organ had originally been installed either side of the chancel with the Choir, Positive, and Pedal on one side and the Swell and Great on the other. There were always pitch issues with the Great and Positive being in different locations, and it could be perilous to combine them!

The new chamber has the Swell and Choir in identical swell boxes on either side of the chamber, with vertical shutters on the front and diagonally on the sides, with the shades angled to project the sound out into the church. The Great and Positive, which are on chromatic chests, are installed next to each other with the treble end facing the chamber opening and passage boards between the chests for tuning access. This has eliminated the pitch differences that had existed. The entire organ is on one level except for the Great and Pedal zinc basses that had been in the façades of the Redeemer organ. These were cut to speaking length and placed on new chests above the Great and Positive. Aeolian-Skinner often did this when space was at a premium.

The Pedal organ has been placed at the back of the main chamber starting with the 16′ Contra Bass and continuing forward with the 16′ Bourdon and then the 16′ Bombarde. The mouths are at different heights to ensure adequate speaking room, and every effort has been made to have all of the windchests accessible for maintenance.

The entire wind trunk system is made up of either new galvanized metal or the original windlines unsoldered and reconfigured as needed. All of the Aeolian-Skinner flanges were retained.

The original Spencer blower was retained and restored by Joseph Sloane. The hubs and turbine fans had been badly damaged when the fans were removed to service the motor in the past. New fans and hubs had to be manufactured and installed, and the old single-phase induction motor was replaced with a new three-phase motor. We have found the single-phase motors to be unreliable after 70–100 years and warrant replacement for safety and reliability. Also, the blower never had a static reservoir, instead having a small Spencer pressure regulator. Not only did this have inadequate capacity, but it also allowed wind noise into the chamber through the windlines, caused by fan turbulence. We have installed a vintage Skinner reservoir over the blower to overcome these issues. Now up in the chamber the organ is silent with the wind on.

This very rewarding project was completed by the following members of the ATA Company:

• Kurt Bocco—reservoirs, wind trunks and installation.

• Joseph Dzeda—wiring and keeping the company in order during our many weeks away.

• Joe Linger—all windchests and installation.

• Sam Linger—all windchests and installation.

• Nick Thompson-Allen—pipe restoration and voicing and installation and tuning.

• Nate Ventrella—wiring and installation.

• Zack Ventrella—layout, console and wiring, installation, and tuning.

Also, we thank:

• Chris Broome—all reed pipe restoration.

• Joseph Sloane—blower restoration and installation.

• Bryan Timm and Organ Supply Industries—new console, new Peterson solid-state, new chests for the Great and Pedal basses and the two added stops, and the new pipes for the Concert Flute.

And finally:

• Grant Wareham—organist and liaison with the church, whose help and patience have been greatly appreciated.

—Nicholas Thompson-Allen

The musician’s perspective

Opus 1132 is a wonderful instrument. It is ideal for all types of choral accompanying, fills the room well for congregational singing, and can tackle almost any type of organ repertoire.

All five divisions are exceedingly useful and come together for an excellent chorus. The Swell gives everything I would expect from an Aeolian-Skinner Swell division, and the 16′ Clarinet doubles beautifully as a color reed. I’ve also found that removing the mixture and super-coupling the division into the chorus works very well for a “chorus-crowning” brilliance.

The addition of the Harmonic Flute gives added strength to an already-strong Great division. Similar in scale to the Principal Flute on the Newberry Memorial Organ at Woolsey Hall, it serves as a subtle third diapason from midrange down and scintillates impeccably in the soprano range. The rich, warm Montre and firm Diapason complement each other perfectly. The 2′ and Quint can serve as an alternate mixture before adding the Fourniture to crown the chorus.

A pair of Erzhälers on the Choir give the signature light Skinner string shimmer and are exceedingly useful for quiet moments either in repertoire or in services. The Koppelflöte and new Concert Flute make a beautiful pair and blend nicely with the Viola. The English Horn is predictably delectable. With a non-mounted cornet and a sparkling Cymbal, the Positive rounds out the organ nicely.

The Bombarde is at its best in the Pedal—it’s an excellent, present reed at both 8′ and 16′ pitch. The addition of the 16′ Bourdon, from the Reuter instrument (Opus 1499) previously installed in the space, rounds out the bass end of the Pedal division beautifully. Adding the 102⁄3′ Quint stop produces a strong 32′ resultant and anchors the organ perfectly.

It was truly a pleasure to work with Nick Thompson-Allen, Joe Dzeda, Zack and Nate Ventrella, Joe and Sam Linger, Kurt Bocco, and everyone at Thompson-Allen, who all worked very hard throughout this project. Through all the challenges this project threw them (including the physical puzzle of putting the pipework in the existing chamber, complex wiring, and pandemic-related delays), they displayed the utmost of professionalism. My thanks as well to Bryan Timm of OSI for the console, which is so close to Aeolian-Skinner specifications, I often forget it is, in fact, brand-new. I feel very lucky to preside over this fine organ.

—Grant Wareham

Total speaking stops: 59

Total ranks: 45

Total pipes: 2,794

Builder’s website: www.thompson-allen.com

Church’s website: www.derrypres.org

Cover photo by Robert J. Polett, Photographer



View a PDF of Opus 1132’s first front cover in The Diapason, April 1951, at the website. Click on the cover feature for the March 2022 issue.

GREAT (3¾″ pressure)

16′ Rohr Bordun (Swell)

8′ Diapason 61 pipes

8′ Montre 61 pipes

8′ Flute Harmonique (1) 61 pipes

8′ Rohr Bordun (Swell)

4′ Octave 61 pipes

2-2⁄3′ Quinte 61 pipes

2′ Super Octave 61 pipes

IV Fourniture 244 pipes

8′ Bombarde (Pedal) 17 pipes

Chimes (in Choir) (2) 20 notes

SWELL (4″ pressure)

16′ Rohr Bordun 68 pipes

8′ Spitz Principal 68 pipes

8′ Rohr Bordun (ext 16′) 12 pipes

8′ Viole de Gambe 68 pipes

8′ Viole Celeste (CC) 68 pipes

4′ Prestant 68 pipes

4′ Holzflöte (3) 68 pipes

2′ Spitzflöte 61 pipes

III Plein Jeu 183 pipes

16′ Bass Clarinet 68 pipes

8′ Trompette 68 pipes

8′ Oboe 68 pipes

8′ Vox Humana (4) 68 pipes

4′ Clarion 68 pipes

Tremulant

POSITIVE (3″ pressure)

8′ Singend Gedeckt 61 pipes

4′ Nachthorn 61 pipes

2-2⁄3′ Nasat 61 pipes

2′ Blockflöte 61 pipes

1-3⁄5′ Terz 61 pipes

1-1⁄3′ Larigot 61 pipes

III Cymbel 183 pipes

CHOIR (4″ pressure)

16′ Erzähler 61 pipes

8′ Viola 68 pipes

8′ Concert Flute (5) 68 pipes

8′ Erzähler (ext 16′) 12 pipes

8′ Kleine Erzähler (TC) 49 pipes

4′ Koppelflöte 68 pipes

4′ Erzähler (ext 16′) 12 pipes

8′ English Horn 68 pipes

Tremulant

8′ Bombarde (Pedal)

PEDAL (5″ pressure)

32′ Resultant (16′ Bourdon, 10-2⁄3′ Rohr Bordun)

16′ Contra Bass 32 pipes

16′ Bourdon (6) 32 pipes

16′ Rohr Bordun (Swell)

16′ Erzähler (Choir)

10-2⁄3′ Quint (from Bourdon)

8′ Principal 32 pipes

8′ Gedeckt (ext Bourdon) 12 pipes

8′ Rohr Bordun (Swell)

8′ Erzähler (Choir)

5-1⁄3′ Quint 32 pipes

4′ Super Octave (ext Princ) 12 pipes

4′ Rohr Bordun (Swell)

16′ Bombarde 32 pipes

16′ Bass Clarinet (Swell)

8′ Bombarde 12 pipes

4′ Bombarde 12 pipes

Chimes (Great)

Notes

(1) 1–12 Organ Supply Industries, 13–61 Skinner Organ Co. 1930, chest by Organ Supply Industries

(2) Old Chimes and action reused by Aeolian-Skinner in 1951

(3) Old Hall Organ Company pipes reused by Aeolian-Skinner in 1951

(4) Skinner & Son pipework, installed in chest preparation, 2007

(5) Pipes and chest by Organ Supply Industries, to Skinner scales

(6) Pedal Bourdon from previous organ by Reuter



2007 - Releathering, multi-level combination action, and addition of Skinner & Son Vox Humana

2020 - Relocation, completion of chassis and pipework restoration, additional stops as noted. Console by Organ Supply Industries, reed pipes restored by Broome and Company, LLC, Spencer Turbine blower restored by Joseph Sloane

A. Thompson-Allen Company, LLC, New Haven, Connecticut;

Blessed Sacrament Catholic Church, Worcester, Massachusetts

From the builder

Having tuned and maintained the organ for about ten years, we had a good idea of what was needed to get the organ back into first class condition. There were a number of dead notes, and the organ would not stay in tune. The organ had survived remarkably well, having very little work done to it since 1928 when it was installed as Skinner Organ Company Opus 736.

Normal wear and tear combined with some water damage from the tower made it clear the time had come to give the organ a full restoration to its original condition. Before this could happen, the organ’s environment had to be addressed. There were three covered windows within the chamber that were collapsing, leaking, and drafty. These could only be repaired by first removing the entire instrument. We did so in 2017, and while all of the components of the organ were in our shop in New Haven, Connecticut, we fully restored the organ without any changes to the pipes or the chassis. All of the perishable materials in the organ mechanism have been fully replaced. Skinner organs are world famous for being the very finest that money could buy, and Opus 736 is no exception. Now restored, its beauty of tone can again be fully appreciated. It truly is a masterpiece!

The windows have been fully restored, and the Saint Cecilia window in the tower has been fitted with LED lights so that it can be seen from the outside of the church. This window had been sealed up since the organ was installed in 1928. The two side windows, which were plain glass, have been removed and filled in with matching stone. The roof and tower have all been properly repaired to keep the interior of the church and the organ dry and free from plaster debris.

The interior of the organ chamber has been repaired and fully painted. New work lights have been installed as well. The oak case and pipes, which had been painted the same color as the wall, have been fully restored to their original appearances. The original blower has been restored by Joseph Sloane with a new three-phase motor.

This beautiful instrument is now ready for another ninety to one-hundred years of service, at which time, this can all be done again. The organ is so well designed and constructed out of the very finest materials that it can be renewed over and over.

The rededication recital of the organ was performed by Thomas Murray on October 6. Professor Murray is a very well-known organist and expert on Skinner organs, having held the position of university organist at Yale University for the last thirty-eight years. Yale is home to the incredible 12,600-pipe Skinner organ from 1928 in Woolsey Hall, Opus 722.

The restoration could not have happened without the full support of the Diocese of Worcester, Elizabeth Noone (director of music), Father Richard Trainor, The Bradley Foundation, Broome and Company, LLC, Royal Finishing Company, and the members of Blessed Sacrament Church.

Please visit our website for a detailed specification of the organ.

We at the A. Thompson-Allen Company are very grateful for the opportunity to renew this superb instrument.

—Nicholas Thompson-Allen, Co-Director

A. Thompson-Allen Company, LLC

Curators of Organs at Yale University

Pipe Organ Maintenance and Restoration

From the organist

On first visiting the Opus 736 Skinner, Nicholas Thompson-Allen remarked that it was in pristine condition for restoration. The organ had been maintained throughout its history, but nothing had ever been altered.

A complete, historic restoration seemed like a dream. It is now a dream realized.

The quality of the original construction was such that, though clearly in need of restoration, the instrument was playable and in continuous use right up until its removal to New Haven.

The first time I played the fully restored instrument I was astounded! I expected the sound to be cleaner and brighter. I did not expect to feel that I was hearing the instrument for the first time!

The genius of E. M. Skinner’s tonal design is now fully apparent, everything is balanced and suitable to the space, from the magnificent 16′ Waldhorn in the Swell to the delicacy of the string combination in the Choir. The full tonal spectrum can now be heard. All of the voicing was done using the specifications original to this specific instrument, so we truly have a sense of what it sounded like in 1928. I find the results comparable to the restoration of an old master’s painting: it was already wonderful, but restoration brings to light a whole new world of beauty.

Professor Thomas Murray’s October 6 re-dedication recital was truly a joyous, celebratory event.

The instrument is a delight to play and we look forward to its music in service to the parish and concert use for years to come.

We at Blessed Sacrament are so grateful to everyone at the A. Thompson-Allen Co., the Joseph Bradley Foundation, and all those who worked on this project.

—-Elizabeth Noone, Organist and Director of Music

Blessed Sacrament Church

From the pastor

Liturgy is the work of the people. The work of all the people that brought about the total restoration of our E. M. Skinner organ reminded me of the craft guilds of the Middle Ages in Europe. At the level of Master Craftman was the hallmark of these workers who restored the wonderful warm sounds of this instrument. Our Faith Community now makes an even more “Joyful sound unto the Lord.”

—Rev. Richard F. Trainor, Pastor

Blessed Sacrament Catholic Church, Worcester, Massachusetts

Builder’s website:

www.Thompson-Allen.com

Church website: blessedsacrament.us

GREAT ORGAN (Manual II)

16′ Bourdon  (Pedal, 56 pipes; 5 pipes)

8′ First Diapason  (43 scale, 1/4 mouth, linen lead, 2′ C = 6)

8′ Second Diapason  (45 scale, 1/5 mouth, linen lead, 2′ C = 7)

8′ Flute Harmonique  (“new” scale, Cavaillé-Coll type, spotted metal, 2′ C = 9)

4′ Octave  (58 scale, 1/5 mouth, linen lead, 2′ C scant 7)

II Grave Mixture  (C-11, 1/5 mouth spotted metal, 22⁄3′ 53 scale, scant 9; 2′ C 50 scale, scant 9)

CHOIR ORGAN (Manual I, enclosed, vertical shutters)

8′ Concert Flute  (“new” scale, C1–B12 stopped wood; C13–B36 open wood; C37–C61 harmonic metal; C#62–C73 not harmonic, all plain metal)

8′ Dulciana  (56 scale,1/5 mouth, zinc and spotted metal, 2′ C = 13)

8′ Unda Maris  (TC; same as Dulciana)

4′ Flute  (#2 harmonic flute, plain metal, harmonic at middle C, 2′ C = 10)

8’ Clarinet  (common)

Tremolo

SWELL ORGAN (Manual III, enclosed, horizontal shutters)

8′ Diapason  (46 scale, 1/4 mouth, spotted metal, 2′ C = strong 8)

8′ Rohrflöte  (common, Willis III type, wood and stopped plain metal with bored stoppers)

8′ Salicional  (60 scale, 1/5 mouth, spotted metal, 2′ C = 14, soft on account of no Flute Celeste)

8′ Voix Celeste  (CC, same as Salicional)

4′ Octave  (60 scale, 1/5 mouth, linen lead, 2′ C = 8)

4′ Flute Triangulaire  (common, 2′ C = 11)

III Mixture  (C-14, 1/5 mouth, spotted metal, 15-19-22)

C–A 15 – 19 – 22   = 22 notes 8 – 15 – 22 50 scale

A#–F 12 – 15 – 19   = 20 notes 12 – 19 52 scale

F#–C   8 – 12 – 15   = 19 notes

61 notes

16′ Waldhorn  (common, English)

8′ Trumpet  (common, English)

8′ Oboe  (common, bells with no caps)

Tremolo

PEDAL ORGAN

16′ Diapason  (common)

16′ Contre Basse  (common)

16′ Bourdon  (common)

8′ Octave  (ext 16′ Diapason)

8′ Gedeckt  (ext 16′ Bourdon)

4′ Flute  (ext 16′ Bourdon)

PEDAL COUPLERS

Great to Pedal

Swell to Pedal

Choir to Pedal

Swell to Pedal 4

UNISON COUPLERS

Swell to Great

Choir to Great

Swell to Choir

OCTAVE COUPLERS

Swell to Great 16

Swell to Great 4

Swell to Choir 16

Swell to Choir 4

Choir to Great 16

Choir to Great 4

Choir 16

Choir 4

Swell 16

Swell 4

DIVISIONAL PISTONS

Swell 6

Great 4

Choir 4

Pedal 4

MISCELLANEOUS CONTROLS

General Cancel

Sforzando reversible

Great to Pedal reversible

Pedal to Manual on Great

Pedal to Manual on Swell

Pedal to Manual on Choir

Set



23 stops, 26 ranks, 1,696 pipes
