Cover Feature: Kegg Pipe Organ Builders/Christendom College

Kegg Pipe Organ Builders, Hartville,

Ohio, 30th anniversary

Kegg Pipe Organ Builders began building new pipe organs in 1990, and 2020 marks thirty years with project opera 64, 65, and 66 presently under construction. Opus 64 is a new 47-rank four-manual instrument for Christ the King Chapel at Christendom College in Front Royal, Virginia. Opus 65 is a new console and restoration of the California Organ Company/Reuter organ in the St. Francis Auditorium at the Museum of New Mexico in Santa Fe. Opus 66 is a new organ for Little Flower Church in St. Louis, Missouri.

I discovered the pipe organ at age eleven and by age thirteen, I had a playing pipe organ of nine ranks in my basement. I had very tolerant parents. After graduating high school, I began working at the Schantz Organ Company in the console department. After a year there, I went back to school to study architecture and mechanical engineering, after which I returned to the Schantz company to train as a reed voicer. I spent five years with Schantz as a production reed voicer and tonal finisher. I then joined Casavant Frères, Limitée where I was a sales representative. I also installed and voiced a number of Casavant organs during my five years with them. I then went to A. R. Schopp’s Sons, a fourth-generation pipe making company and a leader in the United States pipe organ supply industry, where I was general manager. After an enjoyable time there and with three different churches asking me to do work for them, which I took as a sign, I left my friends at Schopp to found Kegg Pipe Organ Builders.

Wanting to start small and build the business carefully, I began in a 1,500-square-foot shop and built my first three instruments by myself, gradually adding employees as business demand grew. In 1994, the company moved into a 5,000-square-foot building with three employees where we built many instruments including the landmark 78-rank instrument for the Basilica of St. John the Baptist in Canton, Ohio. After ten years in that location, the company with five employees received a commission to build another landmark 70-rank instrument for the new concert hall at Texas A&M International University in Laredo, Texas. This instrument demanded a larger space, and in 2004 the company moved into its present shop enjoying 16,000 square feet of space. The company employs eight at this writing, three of whom are under the age of 35.

Early on in my career, I felt that instruments designed and built in a more Romantic style than was popular in the 1970s and ’80s would better suit traditional American church music. It also appealed to me more with my interest in warmer sounds. This was first demonstrated in my third organ built for the First Baptist Church in Canton, Ohio, which was the Kegg family church. This organ, completed in 1990, comprises two manuals and 25 ranks, with the Great under expression, save for the 8′ Principal. In 1990, an enclosed Great was most unusual and considered heretical by many. The organ caused quite a stir in 1990 with its large scales, warm sound, and Swell Vox Humana. A new Vox Humana was, again, highly unusual at that time.

Another point of departure for me was my interest in all-electric chest action. This style of action had long been vilified due to its usual poor construction. All-electric action offers many advantages including ultra simplicity, ease of repair from water damage, and the ability to offer judicious borrowing of stops at different pitches and/or manuals. Its primary disadvantage is the poor pipe speech that is associated with it. I worked at developing chest construction with the goal of making this action indistinguishable from a pneumatic pouch windchest. My successful result has met that goal. While not inexpensive to build, it is reasonable at scale and offers our clients all the advantages with none of the disadvantages. Our instruments only employ pneumatic chests for large basses and high-pressure stops. This reduces or eliminates the leather wear found in pneumatic instruments.

We employ schwimmer air regulator control. These air regulators that are built into the chests regulate pressure more efficiently than standard reservoirs and are easier and less expensive to maintain. While you will find standard reservoirs in our instruments for large pipes and occasional other use, you will find very few in our instruments compared to other engineering traditions. All this is done with the goal of making the Kegg instrument one that is musically responsive, colorful, interesting for the musician and listener, cost effective to purchase, and inexpensive to maintain.

I spent a great deal of time working with the American Organ Institute in Norman, Oklahoma, when it was operating, encouraging young people who were interested in the pipe organ craft, understanding that new generations must be brought into our craft. Two AOI graduates presently work for the Kegg company. We look for those interested in a career in the pipe organ craft and have had several summer interns over the years.

With thirty-plus years in business, our work can be found in homes, concert halls, churches, and synagogues. With a new generation in house, we look forward to the next thirty years of serving our clients.

—Charles Kegg

The Kegg team

Philip Brown

Michael Carden

Cameron Couch

Joyce Harper

Philip Laakso

Bruce Schutrum

Paul Watkins

Website: http://www.keggorgan.com/

Photo: Basilica of Saint John the Baptist, Canton, Ohio (photo courtesy: Kegg Pipe Organ Builders)

Opus 3, First Baptist Church, Canton, Ohio

GREAT

16′ Bourdon TC (Chimney Flute)

8′ Principal 61 pipes

8′ Chimney Flute 61 pipes

8′ Gemshorn 61 pipes

4′ Octave 61 pipes

4′ Flute (ext) 12 pipes

2′ Fifteenth (ext) 12 pipes

1-1⁄3′ Mixture IV 244 pipes

Sesquialtera II TC 98 pipes

8′ Trumpet (Swell)

Tremulant

Chimes (Deagan 25 notes)

SWELL

16′ Bourdon 61 pipes

8′ Bourdon (ext) 12 pipes

8′ Viole 61 pipes

8′ Viole Celeste TC 49 pipes

4′ Principal 61 pipes

4′ Koppelflute 61 pipes

2-2⁄3′ Nazard 61 pipes

2′ Flute (ext) 12 pipes

1-1⁄3′ Larigot (Nazard)

1′ Mixture IV 244 pipes

16′ Contra Trumpet 61 pipes

8′ Trumpet (ext) 12 pipes

8′ Oboe 61 pipes

8′ Vox Humana 61 pipes

Tremulant

PEDAL

16′ Principal 32 pipes

16′ Subbass 32 pipes

16′ Bourdon (Swell)

8′ Principal (ext) 12 pipes

8′ Subbass (ext) 12 pipes

4′ Octave (ext) 12 pipes

32′ Harmonics (derived)

16′ Trumpet (Swell)

4′ Oboe (Swell)

Full complement of couplers

Opus 28, Basilica of St. John the Baptist, Canton, Ohio

GREAT

16′ Violone 61 pipes

8′ Principal 61 pipes

8′ Hohlflute 49 pipes (bass from Pd 16′ Bourdon)

8′ Bourdon (Pd 16′ Bourdon) 17 pipes

8′ Violoncello (ext) 12 pipes

8′ Gemshorn 61 pipes

5-1⁄3′ Rohrquinte 61 pipes

4′ Octave 61 pipes

4′ Koppelflute 61 pipes

2-2⁄3′ Twelfth 61 pipes

2′ Fifteenth 61 pipes

IV Fourniture 244 pipes

16′ Contra Trumpet 61 pipes

8′ Trumpet (ext) 12 pipes

8′ French Horn (Solo)

4′ Clarion 61 pipes

Tremulant

Chimes (Deagan 25 notes)

Zimbelstern

SWELL

16′ Lieblich Gedeckt 61 pipes

8′ Open Diapason 61 pipes

8′ Gedeckt 61 pipes

8′ Clarabella 61 pipes

8′ Salicional 61 pipes

8′ Voix Celeste 61 pipes

8′ Aeoline 61 pipes

8′ Unda Maris TC 49 pipes

4′ Octave 61 pipes

4′ Flute 61 pipes

2-2⁄3′ Nazard 61 pipes

2′ Flautino 61 pipes

1-3⁄5′ Tierce 61 pipes

IV Plein Jeu 244 pipes

IV Scharf (PJ 8va)

16′ Double Trumpet 61 pipes

16′ Oboe TC (Oboe)

8′ Trumpet (ext) 12 pipes

8′ Oboe 61 pipes

8′ Vox Humana 61 pipes

4′ Clarion 61 pipes

Tremulant

CHOIR

8′ Open Diapason 61 pipes

8′ Stopped Flute 61 pipes

8′ Spitzflute 61 pipes

8′ Flute Celeste TC 49 pipes

8′ Dolce 61 pipes

8′ Dolce Celeste TC 49 pipes

4′ Octave 61 pipes

4′ Flute 61 pipes

2′ Piccolo 61 pipes

1-1⁄3′ Larigot 61 pipes

1′ Sifflute 61 pipes

8′ Cornopean 61 pipes

8′ Clarinet 61 pipes

Tremulant

8′ Tuba Mirabilis (Solo)

SOLO

8′ Doppelflute 61 pipes

8′ Gross Gamba 61 pipes

8′ Gross Gamba Celeste 61 pipes

4′ Hohlpfeife 61 pipes

8′ Orchestral Oboe 61 pipes

8′ English Horn 61 pipes

Tremulant

16′ Contra Trumpet TC (Great)

8′ Neumann Trumpet 61 pipes

8′ Tuba Mirabilis 61 pipes (high pressure)

8′ French Horn

8′ Blair Trumpet II (draws Tuba and Antiphonal Trumpet Magna)

8′ Trumpet (Great)

8′ Cornopean (Choir)

8′ Oboe (Swell)

8′ Clarinet (Choir)

4′ Clarion (Great)

Chimes (Great)

String FF Ensemble (collective)

String PP Ensemble (collective)

Unison Ensemble (collective)

Reed Ensemble (collective)

ANTIPHONAL (Floating)

8′ Gedeckt 61 pipes

8′ Salicional 61 pipes

8′ Voix Celeste TC 49 pipes

8′ Flute Celeste II 110 pipes

8′ Unda Maris II 98 pipes (bass from Flute Celeste)

4′ Fugara 61 pipes

4′ Flute (ext) 12 pipes

4′ Unda Maris II (ext) 24 pipes

8′ Vox Humana 61 pipes

8′ Trumpet Magna 61 pipes

Tremulant

PEDAL

32′ Resultant (derived)

32′ Bourdon (1–12 electronic)

32′ Lieblich Gedeckt (1–12 electronic)

16′ Open Diapason (wood) 32 pipes

16′ Bourdon 32 pipes

16′ Violone (Great)

16′ Lieblich Gedeckt (Swell)

16′ Dulciana 32 pipes

8′ Octave (ext) 12 pipes

8′ Diapason (Swell)

8′ Diapason (Choir)

8′ Violoncello (Great)

8′ Bourdon (ext) 12 pipes

8′ Dulciana (ext) 12 pipes

4′ Super Octave (ext) 12 pipes

4′ Still Flute (ext) 12 pipes

32′ Contra Trombone 32 pipes

32′ Harmonics (derived)

16′ Trombone (ext) 12 pipes

16′ Trumpet (Swell)

8′ Tromba (ext) 12 pipes

4′ Clarion (ext) 12 pipes

4′ Clarinet (Choir)

4′ Oboe (Swell)

Full complement of couplers

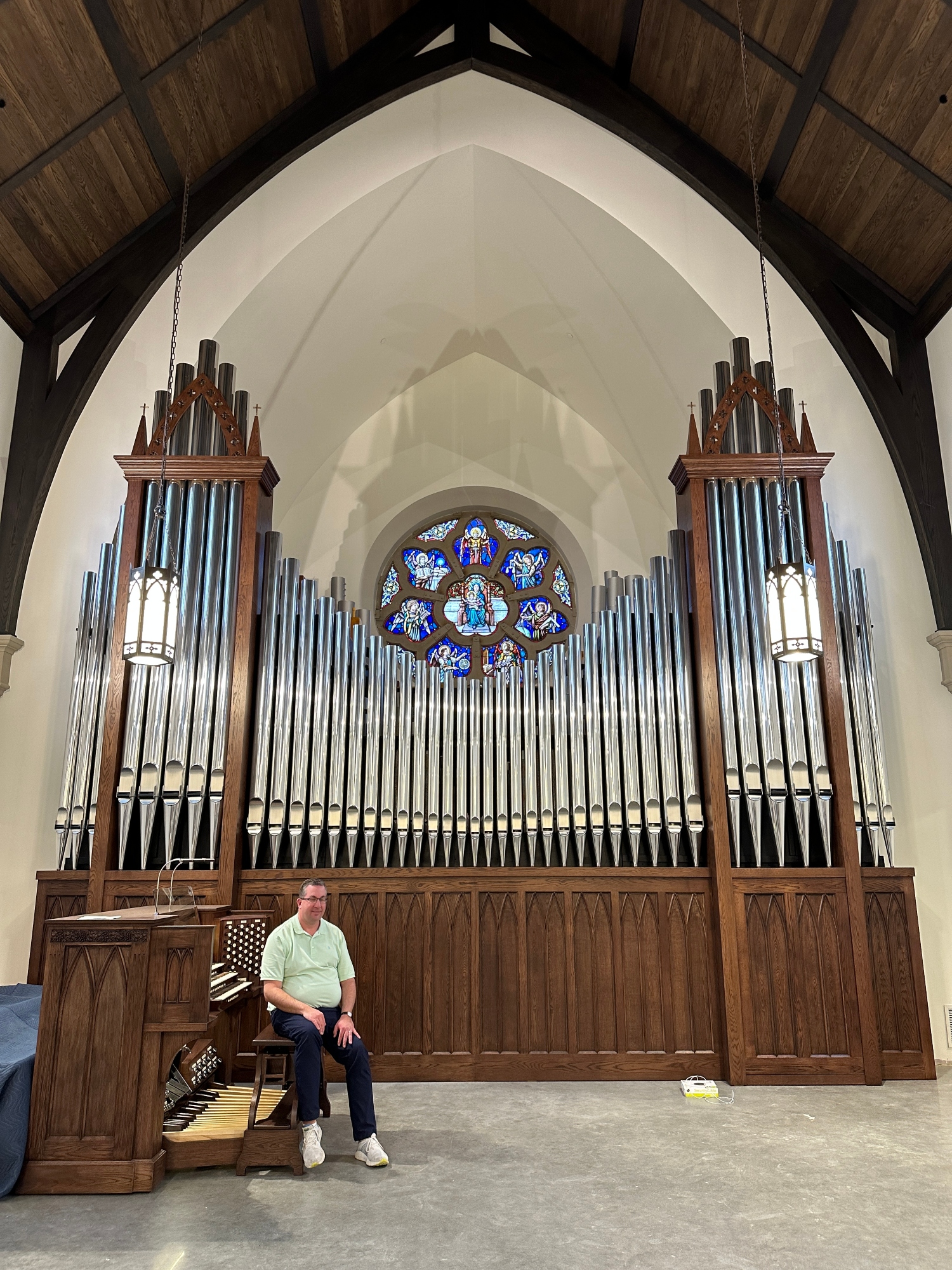

Opus 64, Christendom College, Front Royal, Virginia

GREAT

16′ Violone 61 pipes

8′ Solo Diapason IV (from Gt Prin, Gt Octave, Pd Prin, Pd C. Bass)

8′ Principal 61 pipes

8′ Violone (ext) 12 pipes

8′ Rohrflute 61 pipes

8′ Harmonic Flute 49 pipes (1–12 from Rohrflute)

4′ Octave 61 pipes

4′ Flute (ext) 12 pipes

2-2⁄3′ Twelfth 61 pipes

2′ Fifteenth 61 pipes

1-1⁄3′ Mixture IV 244 pipes

16′ Tromba 61 pipes

8′ Tuba (Choir)

8′ Tromba (ext) 12 pipes

4′ Tromba Clarion 61 pipes

Tremulant

SWELL

16′ Gedeckt 61 pipes

8′ Diapason 61 pipes

8′ Gedeckt (ext) 12 pipes

8′ Salicional 61 pipes

8′ Voix Celeste 61 pipes

4′ Octave 61 pipes

4′ Salicet (ext) 12 pipes

4′ Spitzflute 61 pipes

2-2⁄3′ Nazard 61 pipes

2′ Flute 61 pipes

1-3⁄5′ Tierce 61 pipes

2′ Mixture IV 244 pipes

16′ Bassoon 61 pipes

8′ French Trumpet 61 pipes

8′ Oboe (ext) 12 pipes

8′ Vox Humana 61 pipes

4′ Clarion (ext) 12 pipes

Tremulant

CHOIR

8′ Geigen Diapason 61 pipes

8′ Voce Humana 61 pipes

8′ Melodia 61 pipes

8′ Flauto Dolce 61 pipes

8′ Flute Celeste TC 49 pipes

4′ Octave 61 pipes

4′ Open Flute 61 pipes

2′ Fifteenth (ext) 12 pipes

8′ Tuba (high pressure) 61 pipes

8′ Clarinet 61 pipes

Tremulant

Chimes

SOLO

8′ Solo Diapason IV (from Gt Prin, Gt Octave, Pd Prin, Pd C. Bass)

8′ Flauto Dolce (Choir)

8′ Flute Celeste (Choir)

8′ Doppelflute 61 pipes

8′ English Horn 61 pipes

Tremulant

8′ Tuba Magna (high pressure) 61 pipes

8′ Tuba (Choir)

8′ French Horn 61 pipes

PEDAL

32′ Bourdon 32 pipes

16′ Open Diapason (wood) 32 pipes

16′ Subbass (ext) 12 pipes

16′ Violone (Great)

16′ Gedeckt (Swell)

8′ Principal 32 pipes

8′ Subbass (ext) 12 pipes

8′ Violone (Great)

8′ Gedeckt (Swell)

4′ Choral Bass 32 pipes

2′ Cantus Flute (Gt Harmonic Flute)

32′ Trombone 32 pipes

32′ Harmonics (derived)

16′ Trombone (ext) 12 pipes

16′ Tromba (Great)

16′ Bassoon (Swell)

8′ Trumpet 32 pipes

4′ Clarion (ext) 12 pipes

4′ Clarinet (Choir)

Pedal Divide

Full complement of couplers

Virtuoso control system

Opus 66, Little Flower Catholic Church, St. Louis, Missouri

GREAT

16′ Gemshorn (ext, Choir) 12 pipes

8′ Solo Diapason III (from Gt Prin, Gt Octave, Pd Prin)

8′ Principal 61 pipes

8′ Harmonic Flute (Choir)

8′ Gemshorn (Choir)

4′ Octave 61 pipes

4′ Harmonic Flute (Choir)

2′ Fifteenth (ext) 12 pipes

2′ Mixture IV (cancels 15th) 244 pipes

8′ Tuba 61 pipes (high pressure, separate enclosure)

8′ Trumpet (Swell)

8′ Clarinet (Choir)

Chimes (Deagan, 25 notes)

SWELL

16′ Gedeckt 61 pipes

8′ Geigen Diapason 61 pipes

8′ Gedeckt (ext) 12 pipes

8′ Salicional 61 pipes

8′ Voix Celeste 61 pipes

4′ Principal 61 pipes

4′ Salicet (ext) 12 pipes

4′ Open Flute 61 pipes

2-2⁄3′ Nazard 61 pipes

2′ Octave (ext) 12 pipes

2′ Piccolo (ext) 12 pipes

1-3⁄5′ Tierce TC 37 pipes

1-1⁄3′ Larigot (Nazard)

16′ Trumpet 61 pipes

8′ Trumpet (ext) 12 pipes

8′ Oboe 61 pipes

4′ Clarion (ext) 12 pipes

Tremulant

CHOIR

8′ Gemshorn 61 pipes

8′ Harmonic Flute 61 pipes

8′ Dulciana 61 pipes

8′ Unda Maris TC 49 pipes

4′ Principal 61 pipes

4′ Flute (ext) 12 pipes

2′ Octave (ext) 12 pipes

V Cornet (Swell)

8′ Oboe (Swell)

8′ Tuba (Great)

8′ Clarinet 61 pipes

Tremulant

PEDAL

32′ Resultant (derived)

16′ Open Diapason (wood) 32 pipes

16′ Bourdon 32 pipes

16′ Gemshorn (Choir)

16′ Gedeckt (Swell)

8′ Principal 32 pipes

8′ Bass Flute (ext) 12 pipes

8′ Gemshorn (Choir)

4′ Octave (ext) 12 pipes

4′ Flute (Choir)

32′ Harmonics (derived)

16′ Trumpet (Swell)

8′ Trumpet (Swell)

4′ Clarinet (Choir)

Full complement of couplers

Kegg Pipe Organ Builders, Hartville, Ohio; Little Flower Catholic Church, Saint Louis, Missouri

When we were first approached by music director Chuck Chauvin of Little Flower Catholic Church, the conversation was long and rewarding. I immediately felt we were kindred spirits, so close were our thoughts and goals for the organ project. These boiled down to a new organ that would best address the musical needs of the parish, using what pipes were appropriate from the existing organ, and moving the organ pipe location into the room as much as possible.

As with many of our projects, this vibrant church has an active music program, and the existing pipe organ was deficient. The use of the organ in the Catholic Church has changed dramatically in the last seventy years. Also, the location of the musicians at Little Flower was changed some number of years ago. When the church was new, the musicians were in the small gallery and the ambulatory behind the arches. The organ pipes were placed in chambers behind the ambulatory—thus, the organ was quite removed from the room. When the choir and console were moved to the main floor, the distance from the organ pipes became even more of a problem. Several additional organ revisions were made to help, but none were completely successful.

With input from Dr. Horst Buchholz, then music director of the Cathedral Basilica of Saint Louis, Chuck and I devised a plan for the organ. The existing Wicks organ from circa 1950 had several stops that would work well in a new Kegg design. Upon close inspection we realized that some of the stops we would use predated the 1950 organ and building, and were not built by Wicks. But all were well built and voiced, and were in keeping with the Kegg Romantic way of doing things. The overriding goal was to bring the organ forward into the room as much as possible. The structure of the gallery would not support the weight of the entire instrument, so the Great chorus and Pedal Octave were placed in a case on the gallery, with the balance of the organ immediately behind, speaking through the arched openings. The original chambers were made shallower and only contain the largest pipes of the Pedal and the new Tuba. The space behind the organ that was created by moving things forward now contains the blowers, bringing this important element up out of its basement dungeon.

One cannot speak of almost any pipe organ without discussing the room in which it is placed. This is particularly true of Little Flower Church. The building was built with a large budget, just after World War II. It is built of cut stone and round, with a curved dome ceiling containing a stained glass oculus. The dome is covered in acoustic plaster, and there is carpet on most of the floor and aisles. And yet, there is between two and four seconds of reverberation, depending on occupancy. Being a round room, sound produced is rewarding, bass-friendly, but inconsistent. As one walks the space, the acoustic image of the organ (the apparent origin of the sound) moves. It is frequently not where the organ pipes live. While disconcerting at times, the organ sound is always full and rich.

Space available dictated the size of the organ. As it is a modest three-manual organ of twenty-six ranks, we took full advantage of the Kegg philosophy of best use of resources. The Great and Choir divisions share many stops, and the large Swell has some extensions and borrows to add to the versatility, all while retaining the backbone of the instrument with required independent stops. There is a luxurious number of 16′ Pedal stops for an organ of this size, including a Gemshorn and open wood Diapason. The Tuba on ten inches pressure is in the style of E. M. Skinner and is located in its own expression box. The smooth tonality with independent expression makes this stop extremely flexible. It can easily solo out over the instrument or subtly add to it for additional tutti grandeur. With the box closed, it makes a lovely mezzo-forte lyric solo voice. The Great includes our Solo Diapason, which has found favor with many. This stop draws the Great Principal, the Pedal Octave, and the Great Octave, all playing at 8′ pitch. The effect of these three 8′ stops in unison is similar to a First Open Diapason, but with the clarity of a single fine principal. The tenor range is particularly compelling. The Trumpet stop is large and dark in the bass and becomes brighter in the treble, adding the needed fire to the ensemble. The balance of the organ is typical Kegg with a firm bass, rich mid-range, and clean treble.

The organ case is curved to echo the line of the gallery. It is concave in the center and curves forward into two corner towers before returning to the building wall on the sides. The panels of the lower case have the wood grain set at an angle, creating a pleasant visual effect behind the rail. To help with sound to the choir, the Choir division has expression shades on the side as well as the front, to send sound from this division directly to the choir area.

The console is movable and resides with the choir on the main floor. The case has custom carved panels with arches that echo the stone arches seen in the walls all around. The console is fitted with all the expected features, including, of course, the Kegg pencil drawer and cup holder, as seen in Facebook memes. Wine bottle is not included.

I thank Father Lawrence Herzog, pastor, and Chuck Chauvin for their constant support and drive that made this project happen. As with any major church project, a new pipe organ requires vision and determination. These two gentlemen represent a gold standard in this regard. Despite delays due to Covid and a myriad of related issues, their constant work made the project a success.

Kegg Pipe Organ Builders

Charles Kegg, President and Artistic Director

Philip Brown

Erika Burns

Michael Carden

Joyce Harper

Philip Laakso

Nickolas Meyers

Bruce Schutrum

Christopher Soer

Paul Watkins

Builder’s website: www.keggorgan.com/

Church’s website: www.littleflowerstl.org/

GREAT (Manual II)

16′ Gemshorn (fr #14) 12 pipes

8′ Solo Diapason III (fr #1, 2, 23)

(1.) 8′ Principal 61 pipes

8′ Harmonic Flute (fr #15)

8′ Gemshorn (fr #14)

(2.) 4′ Octave 73 pipes

4′ Harmonic Flute (fr #15)

2′ Fifteenth (fr #2)

(3.) 2′ Mixture IV 244 pipes

8′ Tuba (fr #19)

8′ Swell Trumpet (fr #12)

8′ Choir Clarinet (fr #20)

Chimes (Deagan) 25 notes

Great 16

Great Unison Off

Great 4

SWELL (Manual III, enclosed)

(4.) 16′ Gedeckt 73 pipes

(5.) 8′ Geigen Diapason 61 pipes

8′ Gedeckt (fr #4)

(6.) 8′ Salicional 73 pipes

(7.) 8′ Voix Celeste 61 pipes

(8.) 4′ Principal 73 pipes

4′ Salicet (fr #6)

(9.) 4′ Open Flute 73 pipes

(10.) 2-2⁄3′ Nazard 61 pipes

2′ Octave (fr #8)

2′ Piccolo (fr #9)

(11.) 13⁄5′ Tierce (TC) 37 pipes

1-1⁄3′ Larigot (fr #10)

(12.) 16′ Trumpet 85 pipes

8′ Trumpet (fr #12)

(13.) 8′ Oboe 61 pipes

4′ Clarion (fr #12)

Tremulant

Swell 16

Swell Unison Off

Swell 4

CHOIR (Manual I, enclosed)

(14.) 8′ Gemshorn 61 pipes

(15.) 8′ Harmonic Flute 73 pipes

(16.) 8′ Dulciana 61 pipes

(17.) 8′ Unda Maris (TC) 49 pipes

(18.) 4′ Principal 73 pipes

4′  Flute (fr #15)

2′ Octave (fr #18)

8′ Swell Cornet V (fr #4, 9, 10, 11)

8′ Swell Oboe (fr #13)

(19.) 8′ Tuba (high pressure, 61 pipes, separate expression)

(20.) 8′ Clarinet 61 pipes

Tremulant

Choir 16

Choir Unison Off

Choir 4

PEDAL

32′ Resultant (derived)

(21.) 16′ Open Diapason (wood) 32 pipes

(22.) 16′ Bourdon 44 pipes

16′ Gemshorn (fr #14)

16′ Gedeckt (fr #4)

(23.) 8′ Principal 44 pipes

8′ Bass Flute (fr #22)

8′ Gemshorn (fr #14)

4′ Octave (fr #23)

4′ Flute (fr #15)

32′ Harmonics (derived)

16′ Trumpet (fr #12)

8′ Trumpet (fr #12)

4′ Clarinet (fr #20)

INTER-MANUAL COUPLERS

Great to Pedal 8

Great to Pedal 4

Swell to Pedal 8

Swell to Pedal 4

Choir to Pedal 8

Choir to Pedal 4

Swell to Great 16

Swell to Great 8

Swell to Great 4

Choir to Great 16

Choir to Great 8

Choir to Great 4

Swell to Choir 16

Swell to Choir 8

Swell to Choir 4

Great/Choir Transfer

All Swells to Swell

ADJUSTABLE COMBINATIONS

40 memories per User

Unlimited Users

Great 1-2-3-4-5-6 (thumb)

Swell 1-2-3-4-5-6-7-8 (thumb)

Choir 1-2-3-4-5-6 (thumb)

Pedal 1-2-3-4 (toe)

General 1-2-3-4-5-6-7-8-9-10 (thumb/toe)

General 11-12-13-14 (thumb)

General Cancel (thumb)

Set (thumb)

Range (thumb)

Undo (thumb)

Clear (thumb)

Next (General piston sequencer, 4 thumb, 1 toe)

Previous (2 thumb, 1 toe)

Bluetooth Page turn (2 thumb, 1 toe)

REVERSIBLES

Great to Pedal (thumb and toe)

Full Organ (thumb and toe)

32′ Harmonics (toe)

ACCESSORIES

Swell expression pedal

Choir expression pedal

Tuba expression pedal

2-memory adjustable Crescendo pedal

Concave and radiating pedal clavier

Adjustable bench

Full Organ indicator

Transposer

Pencil drawer

Cup holder

TONAL RESOURCES

26 ranks, 23 stops, 1,595 pipes

Jack Bethards

Schoenstein & Co., Benicia, California; Basilica of the National Shrine of Mary, Queen of the Universe,  Orlando, Florida

This modern basilica is based on the size and shape of the fourth-century Saint Peter’s Basilica in Rome. It seats 2,000 and is a place of pilgrimage for the millions of international tourists who visit Orlando each year. The extensive music program with professional choir is directed by William F. Picher. The shrine has a busy calendar of Masses, numerous special celebrations, and regular concerts. Dr. Picher envisioned an instrument of extremely broad tonal flexibility, something like the one we built for the Conference Center in Salt Lake City.

The organ had to be large enough to match the acoustic of this huge building. Its size is illustrated by the 32′ pipes in display. Behind the pipes on the left are the Great, Swell, and Choir divisions. On the right are Solo and Pedal. The console and singers are to the left of the sanctuary along with a small Positive division to provide an intimate sense of pitch and rhythm. The Gallery division is at the west end. Casework was designed in cooperation with Cameron Bird of Jackson & Ryan Architects and built by New Holland Church Furniture.

The acoustic of the Basilica maintains clarity throughout the space and is especially sensitive to subtle tonal color differences among the stops. This, along with five divisions under expression plus double expression in the Swell allows a kaleidoscopic color and dynamic range. Among the special features is a string division in the Gallery, which is designed to create a celestial atmosphere as worshippers enter for Mass. There are two powerful solo reeds, both under expression—Tuba Magna in the main organ and Grand Harmonic Trumpet in the Gallery. The Solo includes six genuine Wurlitzer stops. As in our Salt Lake City organ, these were selected to broaden the tonal palette. Each of these six stops is used in the ensemble the same way any other attractive tone would be.

This grand organ is the largest we have built for a Roman Catholic church in our 143-year history. It has very special meaning for our firm and our founding family. Surely our founder, Felix F. Schoenstein, a devout Catholic who dedicated two children and two grandchildren to Catholic religious orders and built his very first organ for a Marian church, would be pleased. Having emigrated from Germany, he would be especially honored to know the organ will be serving an international assembly from among the 75 million who visit Orlando yearly.

Four manuals, 70 voices, 86 ranks

Electric-pneumatic action

GREAT (II) 5′′ wind

32′ Lieblich Gedeckt (TC – Sw)

16′ Double Open Diapason 61 pipes

8′ Phonon Diapason (Solo)

8′ Open Diapason 61 pipes

8′ Small Open Diapason (ext) 12 pipes

8′ Gallery Diapasons (II)

8′ Harmonic Flute 61 pipes

8′ Gallery Strings (VIII)

8′ Aeoline (Choir)

8′ Bourdon 61 pipes

4′ Principal 61 pipes

4′ Spire Flute 61 pipes

2′ Fifteenth 61 pipes

2′ Mixture mf (III) 167 pipes

2′ Mixture f (IV) 201 pipes

8′ Trumpet 61 pipes

8′ Tuba Magna (Solo)

8′ Tuba Chorus †

8′ Grand Harmonic Trumpet (Gallery)

Gallery on Great

Positive on Great

† Tuba Magna at 16′, 8′, 4′

SWELL (III–enclosed) 5½′′ wind

16′ Lieblich Bourdon 12 pipes (ext Stopped Diapason)

8′ Open Diapason 61 pipes

8′ Stopped Diapason 61 pipes

8′ Viole de gambe 61 pipes

8′ Voix céleste 61 pipes

8′ Gallery Strings (VIII)

4′ Principal 61 pipes

4′ Harmonic Flute 61 pipes

2′ Harmonic Piccolo 61 pipes

2-2⁄3′ Cornet (III) 176 pipes

8′ Oboe 61 pipes

Tremulant

Stops under double expression, 10′′ wind

8′ Erzähler 61 pipes

8′ Erzähler Celeste (TC) 49 pipes

2′ Mixture ff (IV) 215 pipes

16′ Posaune 61 pipes

8′ Cornopean 61 pipes

4′ Clarion 61 pipes

8′ Vox Humana (Solo)

Swell 16′

Swell Unison Off

Swell 4′

Gallery on Swell

Positive on Swell

CHOIR (I – enclosed) 5½′′ wind

16′ Aeoline (ext) 12 pipes

8′ Open Diapason 61 pipes

8′ Chimney Flute 61 pipes

8′ Gallery Strings (VIII)

8′ Aeoline 61 pipes

8′ Unda Maris (TC) 49 pipes

4′ Fugara 61 pipes

4′ Silver Flute 61 pipes

2-2⁄3′ Nazard 61 pipes

2′ Blockflöte 61 pipes

1-3⁄5′ Tierce 54 pipes

2′ Mixture mf (IV–V) 285 pipes

16′ Bass Horn (ext Fl Horn) 12 pipes

8′ Trumpet 61 pipes

8′ Flügel Horn 61 pipes

8′ English Horn 61 pipes

8′ Clarinet 61 pipes

Tremulant

Choir 16′

Choir Unison Off

Choir 4′

8′ Tuba Magna (Solo)

Gallery on Choir

Positive on Choir

SOLO (IV–enclosed) 10′′ wind

16′ Tibia Clausa 85 pipes (1–12 Pedal Bourdon)

8′ Phonon Diapason 73 pipes

8′ Symphonic Flute 61 pipes

8′ Tibia Clausa (ext)

8′ Concert Flute 73 pipes

8′ Gamba 85 pipes

8′ Gamba Celeste 61 pipes

8′ Viol d’Orchestre 73 pipes

8′ Viol Celeste 73 pipes

8′ Gallery Strings (VIII)

4′ Octave (ext 8′ Phonon Diapason)

4′ Piccolo (ext Tibia)

4′ Flute (ext Concert Flute)

4′ Gambette (ext Gamba)

4′ Viol Celeste (II – Violes)

2-2⁄3′ Twelfth (ext Tibia)

2′ Fifteenth (ext Gamba)

2′ Piccolo (ext Tibia)

1-3⁄5′ Tierce (ext Tibia)

16′ Corno di Bassetto 73 pipes

8′ Tuba Horn 61 pipes

8′ French Horn 61 pipes

8′ Corno di Bassetto (ext)

8′ Vox Humana † 61 pipes

8′ Tuben (III – Swell)

Tremulant

Variable Tremulant

Solo 16′

Solo Unison Off

Solo 4′

8′ Tuba Magna (15′′ wind) 61 pipes

8′ Grand Harmonic Trumpet (Gallery)

Gallery on Solo

Positive on Solo

† Separate Tremulant – slow p/fast f

POSITIVE (unenclosed–floating) 4′′ wind

8′ Salicional 61 pipes

8′ Lieblich Gedeckt 61 pipes

4′ Salicet (ext) 12 pipes

4′ Lieblich Flute (ext) 12 pipes

2′ Fifteenth (ext) 12 pipes

GALLERY (floating) 5′′ wind

Unenclosed Stops

16′ Double Diapason 12 pipes (ext Diapason No.2)

8′ Open Diapason No.1 61 pipes

8′ Open Diapason No.2 61 pipes

4′ Octave (ext Diap No.2) 12 pipes

Enclosed Stops

16′ Bass Viol (ext Viola Pomp) 12 pipes

8′ Viola Pomposa 73 pipes

8′ Viola Celeste 73 pipes

8′ Gamba Celeste (II) † 129 pipes

8′ Violin 73 pipes

8′ Violin Celeste 68 pipes

8′ Voix Serénissime (II) † 129 pipes

4′ Violina (ext Viola Pomposa)

8′ Grand Harmonic Trumpet †† 61 pipes

  † Unison 73, Celeste (TC) 56

†† 10′′ wind

PEDAL (enclosed) 5′′–15′′ wind

32′ Open Metal (unenclosed) 32 pipes

32′ Resultant

16′ Open Wood 32 pipes

16′ Open Metal (ext 32′) 12 pipes

16′ Double Open Diapason (Great)

16′ Diaphone (Solo) 12 pipes (ext Phonon Diapason)

16′ Diapason (Gallery)

16′ Violone 32 pipes

16′ Bourdon 32 pipes

16′ Aeoline (Choir)

16′ Bass Viol (Gallery)

16′ Lieblich Bourdon (Sw)

8′ Principal 32 pipes

8′ Bourdon (ext 16′) 12 pipes

8′ Tibia Clausa (Solo)

8′ Violone (ext 16′) 12 pipes

8′ Flute (Great)

8′ Stopped Diapason (Swell)

4′ Fifteenth 32 pipes

4′ Flute (Great)

2′ Mixture mf (IV–V Choir)

32′ Cornet (derived)

32′ Contra Trombone (ext) 12 pipes

16′ Trombone 32 pipes

16′ Posaune (Swell)

16′ Bass Horn (Choir)

8′ Tuba Magna (Solo)

8′ Tromba (ext 16′) 12 pipes

8′ Posaune (Swell)

4′ Octave Tromba (ext 16′) 12 pipes

4′ Corno di Bassetto (Solo)

8′ Pizzicato Bass

Gallery on Pedal

Positive on Pedal

Stephen Schnurr

Stephen Schnurr is editorial director and publisher of The Diapason, director of music for Saint Paul Catholic Church, Valparaiso, Indiana, and adjunct instructor in organ for Valparaiso University.

As one travels the John F. Kennedy Expressway on the north side of downtown Chicago, one can count the towers of five impressive church edifices that comprise the principal history of Chicago’s Polish Catholics. The heart of Chicago’s “Polonia,” the neighborhoods nearby, has been home to a large number of immigrants who came to the United States from Poland or are of Polish descent. In 1950, Chicago had the largest Polish population outside the city of Warsaw. Today, Polish is the third most frequently heard language in this city, behind English and Spanish.

This is a tale of a church founded for success with large numbers of faithful, only two generations later experiencing alarming decline. Scheduled to close, the parish managed to turn itself around and is now thriving once again, a jewel box of sacred art and architecture, a model of traditional liturgy, and a home for the performing arts, sacred and secular. While many churches have removed their organs or cannot afford to maintain them, here is a parish with no fewer than four pipe organs, all in regular use, for ritual or for concert, or both! Indeed, one could have an “organ crawl” at one address.

Saint John Cantius Catholic Church was founded in 1893 to relieve the overcrowded parish of Saint Stanislaus Kostka and other Polish parishes in this area of the city. Saint Stanislaus had become the largest parish in the world in 1892, and, thus, a division of the parish of 8,000 families had become necessary.  The mother parish was located approximately one mile away in its Patrick C. Keely-designed edifice constructed between 1877 and 1881 and housing Johnson & Son opus 553, a two-manual, thirty-three-rank organ.

The Reverend John Kasprzycki, C.R. (Congregation of the Resurrection), was appointed first pastor of Saint John Cantius, a congregation with an immediate roster of 2,000 families. In acquiring the present property on North Carpenter Street between West Fry and Chicago Avenues, some twenty residences were demolished for the new parish campus. The cornerstone of the church was laid by Archbishop Patrick A. Feehan on September 4, 1893. A crowd of an estimated 25,000 attended the event, with music provided by twenty-seven Polish singing societies. By November, the parish school was opened in the basement section of the building. The rectory, located at the corner of Carpenter and Fry, was blessed on December 20. The lower church was blessed by Feehan on Christmas Eve, and the first Mass was celebrated the following day, the traditional founding date of the parish. The upper church was completed and blessed by Archbishop Feehan on December 11, 1898. Construction cost was $130,000. The Romanesque edifice was designed by Adolphus Druiding. A German native then living in Chicago, Druiding designed Saint George and Saint Hedwig Catholic Churches in Chicago, as well. Seating 2,000 persons, Saint John Cantius Church measured 230 feet long, 107 feet wide.

Father Eugene Sedlaczek, C.R., was named second pastor of Saint John Cantius in 1899. Within two years, he oversaw the interior decoration of the church.

The Reverend Stanislaus Rogalski, C.R., was named fourth pastor in 1902. The following year, construction for the present school building commenced, completed in November. The school and the rectory were designed by Henry Schlacks of Chicago. A clock and bells were installed in the 130-foot tower and the church interior painted. Father John Kosinski, C.R., became fifth pastor in 1909. Under his leadership, magnificent stained-glass windows were installed in the church. The Reverend Stanislaus Siatka, C.R., became pastor in 1915. New concrete stairs of monumental proportions were created in front of the church, the basement was remodeled to become an auditorium, and a convent constructed. (At one point, the convent housed forty-seven School Sisters of Notre Dame.) By the parish silver jubilee on December 25, 1918, membership climbed to 23,000 persons, with 2,000 children enrolled in the school.

In the 1950s, numerous neighborhood homes were demolished to make way for what would become known as the Kennedy Expressway, a project that drastically changed the parish environs. Parish membership, which had been in decline, would drop even more drastically. The school closed in 1967. At one point, the parish itself was to be shuttered.

The decline of the parish was reversed in the late 1980s with the appointment of the Reverend C. Frank Phillips, C. R., as pastor, and the parish was soon vibrant and growing, with membership coming from great distances. The Canons Regular of Saint John Cantius, a religious community of men, was founded in the parish in 1998, and this organization now administers the parish. The church interior has been thoroughly restored and enhanced, complemented with countless religious artworks now on display throughout the entire parish campus.

The first organ of record in Saint John Cantius Church was A. B. Felgemaker & Son Opus 723, installed in the choir gallery (the upper of two balconies) in the rear of the nave in 1900.

1900 A. B. Felgemaker & Son Opus 723

GREAT (Manual I)

16′ Double Open Diapason 61 pipes (metal)

8′ Open Diapason (metal) 61 pipes

8′ Doppel Floete (wood) 61 pipes

8′ Viola da Gamba (metal) 61 pipes

8′ Dulciana (metal) 61 pipes

4′ Octave (metal) 61 pipes

4′ Flute d’Amour 61 pipes (wood & metal)

3′ Octave Quinte (metal) 61 pipes

2′ Super Octave (metal) 61 pipes

III Mixture (metal) 183 pipes

8′ Trumpet (metal) 61 pipes

SWELL (Manual II, enclosed)

16′ Bourdon 61 pipes (treble and bass, wood)

8′ Open Diapason 61 pipes (wood & metal)

8′ Stopped Diapason (wood) 61 pipes

8′ Salicional (metal) 61 pipes

8′ Aeolina (metal) 61 pipes

4′ Gemshorn (metal) 61 pipes

4′ Flute Harmonique 61 pipes (metal)

2′ Flageolet (metal) 61 pipes

III Dolce Cornet (metal) 183 pipes

8′ Oboe & Bassoon (metal) 61 pipes

PEDAL

16′ Double Open Diapason 30 pipes (wood)

16′ Bourdon (wood) 30 pipes

8′ Violoncello (metal) 30 pipes

8′ Floete (wood) 30 pipes

Couplers

Great to Pedal

Swell to Pedal

Swell to Great in Sub-Octave

Swell to Great

Swell to Great in Super Octave

Accessories

Forte Combination Great and Pedal Stops

Piano Combination Great and Pedal Stops

Forte Combination Swell and Pedal Stops

Piano Combination Swell and Pedal Stops

Tremolo

Great to Pedal Reversible

Balanced Swell Pedal

Balanced Crescendo Pedal

Bellows Signal

Wind Indicator

The January 1, 1919, issue of The Diapason noted that a W. W. Kimball Company organ was dedicated at Saint John Cantius in December of 1918. Further information on this instrument has not come to light, and it may not have been installed in the church. It is possible that it was placed in the lower church-auditorium or elsewhere.

In 1922, Geo. Kilgen & Son of Saint Louis, Missouri, installed a new three-manual organ in the upper balcony of the church, Opus 3118. In 1927, the builder added an Echo division, placed behind the main altar, as their Opus 3932.

1922/1927 Geo. Kilgen & Son Opus 3118/3932

GREAT (Manual II, enclosed?)

8′ First Open Diapason

8′ Second Open Diapason

8′ Gross Flute

8′ Doppel Flute

8′ Gamba

4′ Octave

4′ Harmonic Flute

2′ Octave

8′ Tuba

Great to Great 16

Great Unison Off

Great to Great 4

Swell to Great 16

Swell to Great 8

Swell to Great 4

Choir to Great 16

Choir to Great 8

Choir to Great 4

Echo to Great 8

SWELL (Manual III, enclosed)

16′ Lieblich Gedeckt

8′ Open Diapason

8′ Stopped Flute (ext 16′ Lieb Ged)

8′ Salicional

8′ Voix Celeste

8′ Muted Viole

4′ Violina

4′ Flute

16′ Fagotto

8′ Cornopean

8′ Fagotto (ext 16′ Fagotto)

8′ Vox Humana

Tremolo

Swell to Swell 16

Swell Unison Off

Swell to Swell 4

Echo to Swell 8

CHOIR (Manual I, enclosed)

16′ Quintadena

8′ Violin Diapason

8′ Melodia

8′ Quintadena (ext 16′ Quintadena)

8′ Dulciana

4′ Flute d’Amore

2′ Piccolo

8′ Clarinet

Tremolo

Choir to Choir 16

Choir Unison Off

Choir to Choir 4

Swell to Choir 16

Swell to Choir 8

Swell to Choir 4

Echo to Choir 8

ECHO (Manual IV, enclosed)

16′ Bourdon

8′ Open Diapason

8′ Bourdon (ext 16′ Bourdon)

8′ String

8′ Celeste (TC)

4′ Flute

2′ Zart Flute (ext 4′ Flute)

8′ Vox Humana

Tremolo

Chimes

PEDAL

32′ Resultant

16′ Open Diapason (wood)

16′ Open Diapason (metal)

16′ Bourdon

16′ Lieblich Gedeckt (Sw 16′ Lieb Ged)

8′ Gamba (Gt 8′ Gamba)

8′ Bass Flute (ext 16′ Bourdon)

8′ Dolce Flute (Sw 16′ Lieb Ged)

16′ Trombone

16′ Fagotto (Sw 16′ Fagotto)

8′ Fagotto (Sw 16′ Fagotto)

Great to Pedal 8

Great to Pedal 4

Swell to Pedal 8

Swell to Pedal 4

Choir to Pedal 8

Choir to Pedal 4

Echo to Pedal 8

By the early 1990s, a one-manual, mechanical-action organ was relocated to the left balcony of the nave. The builder of this instrument was never ascertained, though interior evidence leads one to believe it was likely built around 1881 and perhaps in the New York City area. The organ has since been removed from the church and is now in storage at the retreat facility of the Canons Regular of Saint John Cantius in Lawton, Michigan. It has a 55-note compass (C–G, no high F#) and a Pedal compass of 27 notes (C–D).

MANUAL

8′ Principal

8′ Gamba

8′ Melodia

4′ Flute

2′ Open

PEDAL

16′ Subbass

Manual to Pedal Coupler

About 1996, the Kilgen organ in the rear gallery of the nave was rebuilt by Daniel Bogue and Associates of Downers Grove, Illinois, which closed in 1989. Some pipework was incorporated from an organ formerly in Alvernia High School of Chicago. This organ was removed in late 2011.

1996 Daniel Bogue and Associates organ

GREAT (Manual II, enclosed with Choir, south side)

8′ Principal

8′ Flute (stopped)

4′ Octave (5 basses in façade)

4′ Flute (harmonic from middle C)

2′ Principal (ext 4′ Octave)

IV Fourniture (1′)

8′ Trompette (harmonic from B3)

4′ Clarion (ext 8′ Trompette)

2 blank tabs

Great to Great 16

Great Unison Off

Great to Great 4

Swell to Great 16

Swell to Great 8

Swell to Great 4

Choir to Great 16

Choir to Great 8

Choir to Great 4

Echo to Great 8

SWELL (Manual III, enclosed, north side)

16′ Bourdon (wood)

8′ Principal

8′ Bourdon (ext 16′ Bourdon)

8′ Gamba

8′ Gamba Celeste (TC)

4′ Principal (ext 8′ Principal)

4′ Flute (open wood, harmonic from middle C)

2-2⁄3′ Nazard

2′ Principal

1-3⁄5′ Tierce

IV Plein Jeu

16′ Fagotto (1–12 half-length)

8′ Trumpet

8′ Fagotto (ext 16′ Fagotto)

4′ Clarion (ext 8′ Trumpet)

Tremolo

Swell to Swell 16

Swell Unison Off

Swell to Swell 4

Echo to Swell 8

CHOIR (Manual I, enclosed with Great, south side)

16′ Gemshorn (12 Quintaton basses)

8′ Violin Diapason

8′ Hohl Flute (wood, 12 stopped basses, remainder open)

8′ Gemshorn (ext 16′ Gemshorn)

8′ Gemshorn Celeste (TC)

4′ Principal (ext 8′ Violin Diapason)

4′ Gedeckt (wood)

2′ Flute (harmonic from tenor C)

1-1⁄3′ Larigot (ext 4′ Gedeckt)

III Cymbel

8′ Cromorne

Tremolo

1 blank tab

Choir to Choir 16

Choir Unison Off

Choir to Choir 4

Swell to Choir 16

Swell to Choir 8

Swell to Choir 4

Echo to Choir 8

ECHO (Enclosed, floating)

8′ Bourdon

8′ String

8′ Celeste (TC)

4′ Flute (ext 8′ Bourdon)

2′ Flute (ext 8′ Bourdon)

8′ Vox Humana

1 blank tablet

Tremolo

Chimes

PEDAL

32′ Resultant (fr 16′ Bourdon)

16′ Double Open Diapason (wood, north side)

16′ Contra Bass (E1–E4 in façade, south side)

16′ Bourdon (north side)

16′ Lieblich Gedeckt (Sw 16′ Bourdon)

8′ Octave (ext 16′ Contra Bass)

8′ Bass Flute (ext 16′ Bourdon)

8′ Gedeckt (Sw 16′ Bourdon)

4′ Choral Bass (ext 16′ Contra Bass)

4′ Flute (Sw 16′ Bourdon)

2′ Octavin (ext 16′ Contra Bass)

16′ Contra Trumpet (ext Great 8′ Trompette, full-length)

16′ Contra Fagotto (Sw 16′ Fagotto)

8′ Trumpet (Gt 8′ Trompette)

4′ Clarion (Gt 8′ Trompette)

Great to Pedal 8

Swell to Pedal 8

Choir to Pedal 8

Echo to Pedal 8

ECHO PEDAL (enclosed with Echo)

16′ Bourdon (ext Echo 8′ Bourdon)

8′ Bourdon (fr Echo 8′ Bourdon)

Accessories

10 General Pistons (thumb)

6 Great Pistons and Cancel (thumb)

6 Swell Pistons and Cancel (thumb)

6 Choir Pistons and Cancel (thumb)

6 Echo Pistons and Cancel (thumb)

6 Pedal Pistons and Cancel (thumb)

General Cancel (thumb)

Great to Pedal reversible (thumb and toe)

Swell to Pedal reversible (thumb and toe)

Choir to Pedal reversible (thumb and toe)

Balanced Swell expression shoe

Balanced Great/Choir expression shoe

Balanced Crescendo shoe (with indicator light)

Combination Lock (key)

Sforzando Reversible (thumb and toe, with indicator light)

Wind Indicator

In 2005, Saint John Cantius Church commissioned one of the last organs built by Oberlinger Orgelbau of Windesheim, Germany. The one-manual, mechanical-action instrument resides on the main floor of the nave. Manual compass is 51 notes (C–D). A lever transposes the organ one half-step down (A=415 Hz). The instrument was blessed on May 14, 2005, by the Most Reverend Basil Meeking, Bishop Emeritus of Christchurch, New Zealand.

2005 Oberlinger organ

MANUAL

8′ Traversflöte (tenor B, wood)

8′ Copula (stopped wood)

4′ Gedackt (30 basses stopped wood, remainder open metal)

2′ Principalflöte (18 capped metal basses, remainder open metal)

1-1⁄3′ Quinte (24 capped metal basses, remainder open metal)

1–2f Cymbel (1⁄2′)

Accessory

H–C (transposer)

In August 2008, a two-manual, mechanical-action organ built in 1991 by Alfred Wild of Gottenhouse, France, was installed in the sanctuary of the church. It was on loan to the parish by a nearby resident who was a friend of Father Phillips. The stopknobs are unlabeled. Temperament is Kirnberger. Manual compass is 56 notes (C–G). In October 2015, the organ was moved to the lower balcony at the rear of the church, so that it could be used with the choir or instrumentalists when a small organ is desirable. In 2017 the instrument was returned to its owner.

1991 Alfred Wild organ

MANUAL I

8′ Gedackt (wood)

4′ Chimney Flute

2′ Principal

MANUAL II

8′ Gedackt (fr Manual I 8′ Gedackt)

8′ Regal

Couplers

Manual I to Pedal

Manual II to Pedal

Manual II to Manual I

The lower balcony at the rear of the nave housed an organ installed in January 2007. The instrument was built by Allyn Hoverland for his residence and sold to the church in December 2006. Wind pressure is 21⁄2 inches. The console is recycled from an M. P. Möller organ. The organ was blessed by Auxiliary Bishop Thomas J. Paprocki on Sunday, February 11, 2007. When the upper gallery organ was removed in preparation for the restored Casavant organ described below, this instrument was the primary organ in the church for several years. This instrument was sold to Saint Mary Catholic Church, Iron Mountain, Michigan, and moved there in late 2014 by
J. L. Weiler, Inc., of Chicago.

Specification of the Allyn Hoverland organ

MANUAL I

8′ Principal (B)

8′ Stopped Flute (A, 1–49; E, 50–61)

8′ Chimney Flute (A, 1–12; C, 13–61)

4′ Principal (B)

4′ Block Flute (A, 1–12; E, 13–61)

2-2⁄3′ Quinte (D)

2′ Block Flute (E)

III Mixture (D, F)

II Mixture (F)

MANUAL II

8′ Block Flute (A, 1–24; E, 25–61)

8′ Chimney Flute (A, 1–12; C, 13–61)

4′ Chimney Flute (C)

2′ Principal (B, 1–49; E, 50–61)

1-1⁄3′ Quinte (D)

PEDAL

16′ Bourdon (A, 1–24; C, 25–32)

10-2⁄3′ Quint Flute (A, 1–17; C, 18–32)

8′ Principal (B)

8′ Chimney Flute (A, 1–12; C, 13–32)

5-1⁄3′ Quinte (A, 1–5; C, 6–12; D, 13–32)

4′ Principal (B)

4′ Chimney Flute (C)

2-2⁄3′ Quinte (D)

2′ Block Flute (E)

Mixture III [sic] (F)

Accessories

10 General pistons (1–10, thumb; 1–5, toe)

5 Manual I pistons (thumb and toe)

5 Manual II pistons (thumb)

General Cancel (thumb)

Analysis

A=16′ Bourdon, c. 1890, builder unknown, 61 pipes

B=8′ Principal, 12 basses c. 1980 M. P. Möller, remainder 1978 Casavant, 73 pipes

C=4′ Chimney Flute, c. 1870, builder unknown, 61 pipes

D=2-2⁄3′ Quinte, builder unknown, 61 pipes

E=2′ Block Flute, 1978 Casavant, 61 pipes

F=II Mixture (1′), 1978 Casavant, 122 pipes

The lower auditorium of the church building houses a 1927 Wurlitzer organ that was installed by Century Pipe Organs of Minneapolis, Minnesota. The Wurlitzer was built for the Terrace Theatre of New York City and, in 1935, moved by the builder to the studios of radio station WOR of the Mutual Broadcasting System in New York City. At Saint John Cantius, the two-manual, seven-rank, electro-pneumatic-action organ (Style “E”) was placed in a special chamber built on the stage of the auditorium. Manual compass is 61 notes (C–C); Pedal compass (concave, radiating pedalboard) is 32 notes (C–G). The project was completed in 2013.

The console has stop-tongue control, with the following colors: reeds in red; strings in mottled yellow; flues in white; couplers in black. Originally, the Tibia, Vox Humana, and Trumpet ranks were in a separate expression box, though the entire organ is now in one enclosure. There are today still two expression shoes.

In 2015, J. L. Weiler, Inc., of Chicago carried out work on the console, improving its overall appearance, fine-tuning the key regulation and response, revising atypical nomenclature as it applies to console controls, and tidying the wiring in the console. The existing solid-state control system was upgraded to its latest version.

1927 Wurlitzer Opus 1818

Analysis

8′ Tibia Clausa 85 pipes

16′ Bourdon/Concert Flute 97 pipes

16′ Diaphone/Diaphonic Diapason 85 pipes

8′ Trumpet 61 pipes

8′ Violin 73 pipes

8′ Violin Celeste 73 pipes

8′ Vox Humana 61 pipes

ACCOMPANIMENT (Manual I)

8′ Trumpet

8′ Diaphonic Diapason

8′ Tibia Clausa

8′ Violin (Violin and Celeste)

8′ Concert Flute

8′ Vox Humana

4′ Octave

4′ Piccolo (Tibia Clausa)

4′ Viol (Violin and Celeste)

4′ Flute

4′ Vox Humana

2-2⁄3′ Twelfth (Bourdon)

2′ Piccolo (Bourdon)

Accompaniment Octave

Chrysoglott (G1–G5)

Snare Drum (reiterates)

Tambourine (reiterates)

Castanets (reiterates)

Chinese Block

Tom Tom

Jazz Cymbal

Triangle

Sleigh Bells

Accompaniment Second Touch

8′ Trumpet

8′ Open Diapason

8′ Tibia Clausa

4′ Piccolo (Tibia)

Chrysoglott

Glockenspiel

Cathedral Chimes

Accomp Traps

SOLO (Manual II)

16′ Trumpet (TC)

16′ Diaphone

16′ Tibia Clausa (TC)

16′ Violone (TC, two ranks)

16′ Bourdon

16′ Vox Humana (TC)

8′ Trumpet

8′ Diaphonic Diapason

8′ Tibia Clausa

8′ Violin (Violin and Celeste)

8′ Concert Flute

8′ Vox Humana

5-1⁄3′ Fifth (Tibia Clausa)

4′ Octave

4′ Piccolo (Tibia Clausa)

4′ Viol (Violin and Celeste)

4′ Flute

2-2⁄3′ Twelfth (Tibia Clausa)

2′ Piccolo (Tibia Clausa)

2′ Fifteenth (Violin)

2′ Piccolo (Bourdon)

1-3⁄5′ Tierce (Tibia Clausa)

1′ Fife (Bourdon)

Solo Sub Octave

Solo Octave

Xylophone (C2–C5)

Glockenspiel (G2–C5)

Chrysoglott (G1–G5)

Sleigh Bells (C2–C4, tuned, reiterates)

Chimes (G2–C4) 18 tubes

PEDAL

16′ Diaphone

16′ Bourdon

8′ Trumpet

8′ Diaphonic Diapason

8′ Tibia Clausa

8′ Cello

8′ Flute

Accomp to Pedal

Bass Drum

Kettle Drum (reiterates)

Tap Cymbal

Crash Cymbal

Tremulants

Tibia Clausa Trem

Solo Tremulant

Main Tremulant

Vox Humana Trem

Accessories

5 Accompaniment pistons (thumb), usable as divisionals or generals

5 Solo pistons (thumb), usable as divisionals or generals

Celestes Off

Accomp Perc/Pedal

Bell (right Accompaniment keycheeck)

Balanced Main expression shoe

Balanced Solo expression shoe

Balanced Crescendo shoe

Range

Set

Unlabeled toe studs for effects: Bird, Auto Horn, Train Whistle, Horses Hooves, Fire Gong

The former convent, now known as the Canonry, has a chapel named for Saint Joseph housing a two-manual, three-rank, electro-pneumatic-action Casavant organ, built for the chapel of the Servantes de Jesus Marie, Rimouski, Québec, Canada. This instrument was installed at Saint John Cantius in Autumn 2010 by Jeff Weiler and Associates of Chicago. The console of the organ is located in a balcony, while the pipework is in a free-standing case on the floor. Manual compass is 61 notes (C–C); Pedal compass (concave, radiating pedalboard) is 32 notes (C–G). The entire organ is enclosed.

1957 Casavant Opus 2403

GRAND ORGUE (Manual I)

16′ Bourdon 85 pipes

8′ Principal (TC, 12 basses 61 pipes from 8′ Flute at 8′ and 4′ pitches)

8′ Bourdon (ext 16′ Bourdon)

8′ Dulciane (TC, 12 basses 73 pipes from 8′ Flute)

4′ Violina (ext 8′ Principal)

4′ Dulcet (ext 8′ Dulciane)

4′ Flute d’Amour (ext 16′ Bourdon)

2-2⁄3′ Nazard (ext 8′ Dulciane)

2′ Doublette (ext 8′ Dulciane)

Recit au Grand Orgue

RECIT (Manual II)

8′ Principal (G.O. 8′ Principal)

8′ Bourdon (G.O. 16′ Bourdon)

8′ Quintaton (synthetic, Flute at 8′, Dulciane at 2-2⁄3′)

8′ Dulciane (G.O. 8′ Dulciane)

4′ Violina (G.O. 8′ Principal)

4′ Flute (G.O. 16′ Bourdon)

4′ Dulcet (G.O. 8′ Dulciane)

8′ Hautbois (synthetic, Principal at 8′, Flute at 2-2⁄3′, 12 basses from Flute at 8′ and 4′)

Tremolo

PEDALE

16′ Bourdon (G.O. 16′ Bourdon)

8′ Bourdon (G.O. 16′ Bourdon)

4′ Principal (G.O. 8′ Principal)

4′ Flute (G.O. 16′ Bourdon)

4′ Dulcet (G.O. 8′ Dulciane)

Gr. Orgue a la Pedale

Recit a la Pedale

Accessories

3 Grand Orgue and Pedale pistons (thumb)

3 Recit pistons (thumb)

Balanced expression shoe

Balanced Crescendo shoe (with rotating indicator dial)

On Sunday, October 20, 2013, a historic pipe organ that has been part of Chicago’s history for more than three-quarters of a century was dedicated in its new home, Saint John Cantius Church. The afternoon and evening activities commenced with a blessing of the organ by His Eminence, the late Francis Cardinal George, OMI, Archbishop of Chicago, followed by a Pontifical Latin High Mass, celebrated by the Most Reverend Joseph N. Perry, Auxiliary Bishop of Chicago. Choral and organ works by Louis Vierne, Healey Willan, Charles-Marie Widor, and Marcel Dupré filled the nave with sound. An over-capacity crowd filled the church, including its side balconies, with additional faithful standing in the aisles. Following a dinner catered in the church’s lower level, the evening was capped with a dedicatory recital.

The event was the conclusion of a three-year restoration and relocation project for Casavant Frères opus 1130, built for Saint James Methodist Episcopal Church of the Kenwood neighborhood on the South Side of Chicago. Saint James, founded in 1896, was once attended by several of Chicago’s great commerce giants, including the Swift and Harris families of meatpacking and banking fame. In 1915, Gustavus F. Swift donated a four-manual Casavant organ built in the company’s South Haven, Michigan, plant. The Victorian Gothic church and its organ burned in 1924. The congregation commissioned Chicago’s Tallmadge & Watson to design an expansive new building, again in the Gothic style, completed in 1926. For this edifice, Tina Mae Haines, arguably Chicago’s finest female organist, lobbied the church’s leaders for a new, four-manual Casavant organ, despite pressure to purchase a Skinner organ, like many other wealthy churches. Miss Haines won her argument, and Opus 1130 was built to her specification, the funds again donated by the Swift family, $28,890. (M. P. Möller installed its Opus 4605, a two-manual, ten-rank organ costing $5,100 in the chapel.) The Casavant would be one of the South Side’s finest church and concert organs. Marcel Dupré gave a memorable program at Saint James in 1937 to a capacity crowd.

Sadly, Saint James United Methodist Church closed Sunday, December 26, 2010. The author was honored to be the last person to play the Casavant organ publicly in its original home, for an impromptu hymn festival at the conclusion of the church’s final service. Andrew Szymanski, a friend who had informed me of the church’s impending closure, joined church members as we all sang, concluding with “Abide with Me” and George Frederick Handel’s “Hallelujah Chorus.” It was the first time the organ had been used in many years. Several congregants present at Saint James’s closing were present for the rededication of their organ at Saint John Cantius.

That fateful phone call from my friend informing me the church was closing made the relocation of the organ possible. If not for that, the church would have silently ended its existence; instead, I was able to make phone calls that made the connections happen for the organ to be removed.

Then followed a restoration project for Opus 1130, carried out by J. L. Weiler, Inc., of Chicago, and the organ’s builder, Casavant, in Saint-Hyacinthe, Québec, Canada. The console of the organ is located in the lower west balcony, while the remainder of the main organ is in the upper west balcony with the Echo division in the north balcony (in a transept). Nearly ninety years after its initial installation, the organ began a new era of promise. It is fondly known as “Tina Mae.”

1926 Casavant FrПres, Limitée, Opus 1130

GREAT (Manual II, 4-inch wind pressure)

16′ Double Open (metal) 73 pipes

8′ I Open Diapason (metal) 73 pipes

8′ II Open Diapason (metal) 73 pipes

8′ Doppelflöte 73 pipes (wood and metal)

8′ Gemshorn (metal) 73 pipes

4′ Octave (metal) 73 pipes

4′ Harmonic Flute (metal) 73 pipes

Mixture IV (metal) 244 pipes

8′ Trumpet (metal) 73 pipes

Chimes (from Echo)

SWELL (Manual III, enclosed, 41Џ2-inch and 7-inch wind
pressures)

16′ Bourdon (wood) 73 pipes

8′ Open Diapason (metal)* 73 pipes

8′ Violin Diapason (metal) 73 pipes

8′ Stopped Diapason 73 pipes (wood and metal)

8′ Salicional (metal) 73 pipes

8′ Viola di Gamba (metal) 73 pipes

8′ Aeoline (metal) 73 pipes

8′ II Voix Celeste (metal) 134 pipes

4′ Violina (metal) 73 pipes

4′ Flauto Trav. 73 pipes (wood and metal)*

2′ Piccolo (metal) 61 pipes

Dolce Cornet III (metal) 183 pipes

16′ Double Trumpet (metal)* 73 pipes

8′ Cornopean (metal)* 73 pipes

8′ Oboe (metal) 73 pipes

8′ Vox Humana (metal) 73 pipes

4′ Clarion (metal)* 73 pipes

Tremulant

Chimes (from Echo)

* 7-inch wind pressure

CHOIR (Manual I, enclosed, 6-inch wind pressure)

16′ Gamba (metal) 73 pipes

8′ Open Diapason (metal) 73 pipes

8′ Concert Flute 73 pipes (wood and metal)

8′ Dulciana (metal) 73 pipes

8′ Unda Maris (metal) 73 pipes

4′ Flute d’Amour 73 pipes (wood and metal)

2-2⁄3′ Nazard (metal) 73 pipes

2′ Flageolet (metal) 61 pipes

8′ Clarinet (metal) 73 pipes

8′ Cor Anglais (metal) 73 pipes

Tremulant

Celesta 61 bars

Celesta Sub (from Celesta)

SOLO (Manual IV, enclosed, 12-inch wind pressure)

8′ Stentorphone (metal) 73 pipes

8′ Gross Flute 73 pipes (wood and metal)

8′ Viole d’Orchestre (metal) 73 pipes

8′ Viole Celeste (metal) 73 pipes

8′ Tuba (metal) 73 pipes

Tremulant

ECHO (Floating, enclosed, 3-1/2-inch wind pressure)

8′ Echo Diapason (metal) 73 pipes

8′ Cor de Nuit 73 pipes (wood and metal)

4′ Fern Flöte (metal) 73 pipes

8′ Musette (metal) 73 pipes

Tremulant

Chimes (from tenor G) 25 tubes

PEDAL

32′ Double Open 12 pipes (resultant, 16′ Open Diapason, with independent quints)

16′ Open Diapason (wood) 44 pipes

16′ Bourdon (wood) 44 pipes

16′ Contra Gamba (Ch 16′ Con Gamba)

16′ Lieblich Gedeckt (Sw 16′ Bourdon)

8′ Flute (ext 16′ Open Diapason)

8′ Stopped Flute (ext 16′ Bourdon)

8′ Cello (metal) 32 pipes

16′ Trombone (metal) 32 pipes

Chimes (from Echo)

Couplers

Great to Pedal 8

Swell to Pedal 8

Swell to Pedal 4

Choir to Pedal 8

Solo to Pedal 8

Solo to Pedal 4

Echo to Pedal 8

Great to Great 4

Swell to Great 16

Swell to Great 8

Swell to Great 4

Choir to Great 16

Choir to Great 8

Choir to Great 4

Solo to Great 16

Solo to Great 8

Solo to Great 4

Echo to Great 16

Echo to Great 8

Echo to Great 4

Echo On/Great Off

Choir to Choir 16

Choir to Choir 4

Swell to Choir 16

Swell to Choir 8

Swell to Choir 4

Solo to Choir 16

Solo to Choir 8

Solo to Choir 4

Swell to Swell 16

Swell to Swell 4

Solo to Swell 8

Solo to Solo 16

Solo to Solo 4

Great to Solo 8

Swell to Solo 8

Echo to Solo 16

Echo to Solo 8

Echo to Solo 4

Echo On/Solo Off

All Swells to Swell Pedal

Accessories

10 General pistons (thumb and toe, originally 5, toe)

5 Great pistons (thumb)

7 Swell pistons (thumb)

5 Choir pistons (thumb)

3 Solo pistons (thumb)

3 Echo pistons (thumb)

5 Pedal pistons (thumb)

Sequencer Up (4 thumb, 1 toe)/Down (1 thumb)

300 memory levels

Memory + Up/ - Down (thumb, under Manual IV)

Great to Pedal reversible (thumb and toe)

Swell to Pedal reversible (toe)

Choir to Pedal reversible (thumb)

Solo to Pedal reversible (thumb)

Echo to Pedal reversible (thumb)

Swell to Great reversible (thumb)

Choir to Great reversible (thumb)

Solo to Great reversible (thumb)

Swell to Choir reversible (thumb)

Manual 16′ On/Off (thumb, with indicator)

Manual 2′ On/Off (thumb, with indicator)

General Cancellor (thumb)

Combination Adjustor (thumb)

Balanced Swell Expression Shoe

Balanced Choir Expression Shoe

Balanced Solo and Echo Expression Shoe

Balanced Crescendo Shoe (with indicator dial)

Full Organ Reversible (toe, with indicator)

Generator Indicator

Wind Indicator

The Casavant organ can be heard on a compact disc recorded by Andrew Schaeffer, St. John Cantius Presents The Nutcracker, available from Amazon and other resources. The disc includes movements from Tchaikovsky’s The Nutcracker Suite, along with selections of music appropriate for Christmas. Also available is St. John Cantius Presents Jonathan Rudy: Epic Music for Organ, similarly available from Amazon and other resources.

This year, a 32′ Contra Trombone extension of twelve full-length pipes will be added to the Pedal 16′ Trombone. A 16′ Bourdon of thirty-two pipes will be added to the Echo division to function as a pedal stop. The Bourdon pipes come from the Casavant organ that was built for Saint Paul of the Cross Catholic Church in Park Ridge, Illinois. Casavant will build the new components, and J. L. Weiler, Inc., will install everything onsite. Work is expected to be completed by August.

§

Saint John Cantius Catholic Church is once again the spiritual home to many Catholic families, most of whom drive a considerable distance on the same expressway that enticed so many parishioners to leave the parish a generation ago. The regenerated parish’s investment in music is exemplary, with multiple choirs presenting an auspicious schedule of selections. A full calendar of concert performances provides quality music to the community. Concert and theater organ programs are frequently presented. With over a century of record, the parish is poised for many more years serving the spiritual and cultural needs of the Chicago metropolitan community.

Sources

Koenig, Rev. Msgr. Harry C., STD, ed. A History of the Parishes of the Archdiocese of Chicago, Chicago, Illinois, Archdiocese of Chicago, 1980, volume 1, pp. 487–491.

Lindberg, William Edward. The Pipe Organs of A. B. Felgemaker, Late Nineteenth Century American Organ Builder, dissertation, University of Pittsburgh, Pittsburgh, Pennsylvania, 1976, p. 262.

McNamara, Denis R. Heavenly City: The Architectural Tradition of Catholic Chicago, Chicago, Illinois, Liturgical Training Publications, 2005, pp. 50–52.

Saint John Cantius: 1893–1993, Chicago, Illinois, Saint John Cantius Catholic Church, 1993.

Schnurr, Stephen J., and Dennis E. Northway. Pipe Organs of Chicago, Oak Park, Illinois, Chauncey Park Press, 2005, volume 1, pp. 116–118.

For further information: cantius.org/sacredmusic

Quimby Pipe Organs, Warrensburg, Missouri

Dunwoody United Methodist Church, Dunwoody, Georgia

Quimby Pipe Organs Opus 76, recently installed at Dunwoody United Methodist Church, comprises 100 ranks distributed over five manual divisions, playable from a four-manual and pedal console. The completion of this instrument represents the culmination of an idea and process that began in 2007. After many attempts to make an organ project “go,” either as a stand-alone project, or paired with other proposed major capital work on campus, it wasn’t until the need for a major renovation of the sanctuary occurred that a new organ, installed in a different location, became a necessity and, eventually, a reality.

This was a particularly challenging and yet ultimately rewarding sanctuary and chancel renovation project, the genesis of which was to adapt the space so that the church’s contemporary worship service could relocate from a social hall to meet in the sanctuary, where a traditional service and music program were making good use of the traditionally styled space and generous acoustics. The emergent projects goals were many, among which: 1) to relocate the choir and organ from the rear gallery to the chancel; 2) to somehow create organ chambers in a space where they didn’t exist and where there didn’t appear to be room for them; 3) to acoustically deaden and otherwise transform the room for the successful accommodation of the contemporary worship service; 4) but to do this without permanently changing the acoustics of the space for traditional worship.

The spacious sanctuary, which had been constructed new in the year 2000, had excellent acoustics, and even though the former organ, which had been relocated from a much smaller sanctuary, was undersized for the room, the acoustics of the space enabled the organ to remain in use for nearly twenty years following its temporary location. It was well constructed and a good example of its type; it simply didn’t go far enough in its scope to support the music program.  As director of music Sonny Walden and organist Mary Ruth Solem will immediately tell you, it not only wasn’t loud enough, it also wasn’t soft enough, and there were too few opportunities for smoothly graded dynamic levels in between the two.

The renovation solution was costly, but effective. Space for organ chambers was created, encroaching on unused above-ceiling space outside the existing chancel, the footprint of the original chancel, and a mechanical mezzanine behind the chancel. A choir loft with built-in risers was constructed in front of the new organ chambers. For contemporary worship, retractable acoustical banners lower down from the attic, covering the choir loft, Chancel organ, Antiphonal organ, and all windows at the push of the button. The result is a space acoustically and visually suitable for amplified music, electronic projection, and colored LED lighting effects; it has had a net-zero impact on the intrinsic acoustical quality of the space.

From an early point in the dialogue, the church voiced an interest in exploring the possible use of high-quality vintage American pipework for incorporation into a new instrument. Given our experience in working with vintage pipework for new organ projects that are not restoration-focused, we enthusiastically agreed, and began the search for an instrument that would fit the bill—something that would allow artistic latitude and freedom in the creation of a new, unified identity, but which would also contribute a unique tonal provenance and material advantage to the project.

What we eventually found, in fact, were two organs, which the church ultimately bought and placed into storage until the project could be realized. The first, Ernest M. Skinner Co. Opus 195 (four manuals, 66 ranks), dating from 1913, was originally installed in Grace Chapin Hall at Williams College, Williamstown, Massachusetts, where it was used until it was vandalized in 1959. As the story goes, which is now almost as apocryphal as it is difficult to document, an organ student, following his end of semester juries, entered the organ chamber, and destroyed nearly everything he could access. From that time until the organ was removed in 2011, the organ was mothballed at Williams College and never played again. A careful cataloguing of the surviving pipes following the organ’s removal from the college revealed a surprising picture: perhaps a third of the organ’s ranks either missing or damaged beyond any cost effective repair; another third showing some damage but imminently repairable under skilled hands; and a final third, perhaps, completely untouched and as good as the day the organ was installed.

Surviving examples of pipes from the Great Diapason chorus, which was nearly entirely destroyed, exist from all pitch levels of that ensemble—from a 16′ Double Open Diapason through a three-rank chorus mixture—and provide an interesting insight into Skinner’s tonal work for a large organ in the early 1910s. These are scaled and voiced to be heroic while also harmonically developed and bright—not at all dull. The ensemble has much more in common with highly developed diapason chorus work at the culmination of the nineteenth-century American building tradition—before organ ensembles devolved into a tonal center around the unison pitch, with little-to-no upperwork—than it does the Skinner sound we have come to know and appreciate from the 1920s. It stands in complete contrast to his work from later periods, and it is a shame that this chorus work was destroyed.

In addition to the usual very fine diapasons, flutes, strings, and reeds, Opus 195 is the first Skinner organ to have one of the now-famous Skinner French Horns, and also is where the Skinner Corno di Bassetto first made its appearance. A review of the tonal specification for the new organ demonstrates that this defunct organ, constructed by one of the foremost early twentieth-century American organbuilders, has made a significant contribution to the new organ at Dunwoody, including the very fine Pedal 32′ Contra Bourdon, which produces some of the deepest tones in the instrument, and the Solo 8′ Tuba, which is the loudest stop in the organ.

The second organ procured for use in the new instrument was constructed in 1939 by Casavant Frères, Ltd. (three manuals, 42 ranks) for the now defunct Chapel of the Immaculate Conception Seminary in Darlington, New Jersey. Like most Casavant organs dating from the 1930s, this organ was constructed and voiced according to English Romantic ideals, brought to Casavant by tonal director Stephen Stoot, and included diapason chorus work of remarkably heavy construction, superbly constructed wood flutes, and English-style reeds. Our own assessment is that the flues were never voiced up to scale, and, as we found them, were rather lackluster and dull as individual voices. The reeds seem to have suffered an unfortunate fate following a haphazard revoicing prior to the closing of the seminary. After the seminary was closed in the early 1980s, the organ was repeatedly flooded due to serious roof leaks over the organ cases. Nevertheless, in terms of substantial, beautifully constructed pipework, suitable for revoicing, Casavant Opus 1600 presented a wealth of material. Most of the water damage was sustained by the 32′ Contra Posaune, which because of its miters, held the water in the miter knuckles, where, completely undetectable from the outside, the zinc corroded from the inside out. These pipes have been substantially reconstructed and revoiced and form the bass of the Pedal 32′ Contra Trombone at Dunwoody.

It may seem strange to conceptualize the combination of pipework from two very different instruments, constructed nearly thirty years apart, and with widely divergent tonal ideals in mind, in an attempt to create any kind of instrument that has a cohesive tonal identity. And it’s true that this is probably not a good idea, at least if it is approached with a restoration-conservation mindset, where the ranks from each respective organ are to retain their original voices, balance, and relationship to one another. That approach is on its own extremely valid, and certainly equally satisfying, and should certainly have been undertaken if, say, this were a project where the Skinner pipework (were it all intact) and mechanics were to be restored as an entity and installed in an environment that demanded a 1913 organ sound. However, because of the vandalism the 1913 Skinner all but disappeared in the 1950s, and the 1939 Casavant, with beautifully and substantially constructed pipes, was, as we found it, unevenly and under voiced, possessing a disappointing ensemble. Neither organ, as we encountered them, was playable or usable, and neither organ stood much prospect of restoration and reuse elsewhere. More importantly, we were not tasked with a restoration project by the church, but rather, to create something new using to advantage the accumulated material at hand.

Looking beyond this, however, it’s helpful to place the 1913 Skinner and 1939 Casavant organs, while different, both as a part of an organbuilding continuum that continued uninterrupted in development and refinement from its fifteenth-century origins right up until the middle twentieth century. Organs from later in this continuum are markedly different from earlier instruments, but each builder in this centuries-long procession built upon what had been given by the previous generation, at least until this succession was interrupted by the Organ Reform Movement. For the first time in organbuilding history, the work of the immediate past was swept away, intentionally and deliberately, in an effort to recapture ideals—sometimes real, and sometimes supposed—that marked organbuilding in an earlier age.

While it’s certainly true that the Organ Reform Movement has left a mostly-positive legacy (and some noteworthy landmarks of twentieth-century organbuilding) on the contemporary American organbuilding landscape—even though most contemporary organbuilders have moved beyond the strictures of its dictums—at QPO, we like to regard our own work as very much a return to the continuum and succession that existed prior to World War II. What would it be like, we ask ourselves, if organbuilding had continued uninterrupted, and the work of each new generation an expansion of what had gone before, rather than a violent reaction against it? We like to think that Opus 76 at Dunwoody United Methodist, along with a number of other recent projects, has given us a chance to explore this in detail.

As to the ensemble, Opus 76 has the hallmark of any QPO ensemble from the past twenty-five years or so: highly characteristic, individually beautiful colors or voices that are simultaneously extremely effective and flexible ensemble players. These individualist voices are each strong, characteristic examples of their class and type, and are the sort of voice you want to hear played alone—full of intrinsic beauty and interest. However, beautiful, characteristic voices alone are not enough, for we’ve all heard and played organs where the colors individually are beautiful, but combine intractably into loose ensembles, mixing like oil and water, where the ear can pick apart all the constituent parts. On the other hand, we’ve all heard and played organs where decent or even very good ensembles are given, but a review, one by one, of the individual voices reveals bland, uninteresting color and voicing. One of the measures of any great organ—whatever the period, style, or timbre—is that the individual voices pass this litmus test: to be highly characteristic, colorful, and intrinsically beautiful, and yet nevertheless combine with others to form a wide array of flexible and dynamic ensembles of all types.

In Opus 76, there are, in fact, individual voices that may be recognizable as early “Skinner,” pre-WWII “Casavant,” or even modern “Quimby,” but in each and every case, the emphasis in terms of voicing has not been to maintain the original voice, but to expand upon it, changing it as required so that a new identity is revealed: an organ that speaks with one voice, a cohesive ensemble, and a truly musical instrument.

A review of the accompanying tonal specification will reveal where Skinner or Casavant ranks were used in the new disposition, but the basic concept is as follows. The choruswork for Great, Swell, and Choir-Positive is all Casavant, which has been revoiced and in some cases rescaled to achieve the bold, colorful, heroic-yet-transparent, and clear organ ensemble we strive for. Skinner diapasons from the Swell of 195 were repurposed in the Antiphonal organ chorus. Throughout the organ, colorful flutes and strings were used from both organs. The Casavant Swell reed chorus has been revoiced and resides in the Great. The Skinner reed chorus, at least in part, after substantial reconstruction and revoicing, is in the Swell. The Casavant 32′ Contra Posaune, 16′ Trombone, and 8′ Tromba have been combined to provide a reed that plays at 32′, 16′, 8′, and 4′ in the Pedal and at 8′ in the Solo. One rank of the pipes from the church’s former instrument, along with the Zimbelstern and Chimes, was reused in the new organ: a very fine 8′ Trompette-en-Chamade, now installed vertically, in the Antiphonal organ, and called “8′ Harmonic Trumpet.”

Because of its favorable placement and lack of enclosure, the Antiphonal diapason chorus functions more like a Grand Choeur, rather than a secondary, lesser Great. It is a spectacular effect, at once foundational, colorful, and heroic that must be experienced to be fully appreciated.

Most all of the mechanics and internal structure of the organ, including the windchests, façade pipes, console, and winding system, are completely new. Manual windchests for all straight manual ranks are electro-pneumatic slider windchests, constructed according to the Quimby-Blackinton design, with square drop pallets that allow for copious winding of heroically voiced pipes on a common channel. Also importantly, the chests are constructed without slider seals, which means that the organ won’t have to be de-piped and disassembled to replace the slider seals in a few decades, when they are bound to fail.

Our standard electro-pneumatic unit-action windchests have been used for most pedal ranks and manual unit ranks; the exception here exists in a few instances, where 1913 Skinner unit action windchests were restored for reuse with original ranks, such as the Solo 8′ Tuba and the Pedal 32′ Contra Bourdon and 4′ Solo Flute.

The winding system includes a 10-H.P. vintage Spencer blower, which provides 6-inch wind pressure for most manual and pedal flues, and 10-inch wind pressure for all reeds and Solo flues. The Solo 8′ Tuba is on 20-inch wind pressure, with its own step-up blower. New cone-valve reservoirs, according to our custom design, which is an adaptation of the Skinner reservoir, have been constructed for regulation of wind in the Chancel organ. The Antiphonal organ makes use of a blower and static wind system that was retained from the previous organ.

All manual divisions, except the Antiphonal, are individually enclosed by 2-inch-thick expression shutters and solid wood walls, which enable the heroically voiced ensembles to be brought down to a surprising diminuendo, and the soft voices to fade to nearly a whisper. A new four-manual and pedal console was constructed to a custom design and finished to match the renovated interior of the church, with solid oak exterior cabinetry and solid walnut interior.

During the first choral rehearsal with the new organ, director of music Sonny Walden told Mary Ruth Solem, “I know I’ve never said this before in this room, but the organ is too soft. Isn’t it wonderful to be able to say that?!” And he burst out into joyful laughter. Later, as she has continued to rehearse and perform with Opus 76, Mary Ruth said, “I am starting a long friendship with this instrument!  It’s beautiful, and I am immensely grateful . . . . This is a rare gem.”

We hope that the assessment will over time continue to be as equally enthusiastic and kind, as Opus 76 finds its place in the heart of traditional worship at Dunwoody United Methodist Church, and also in the greater organ world beyond. For our own part, at QPO we have found that working with the vintage fabric, as represented by the many ranks of pipes, originally constructed and voiced by some of the most reputable of our organbuilding forebears, has taught us many lessons, and will continue to yield an impact on the development of our organs into the future.

Because the organ is substantially new mechanically, and because the sound of the new organ is completely unlike a 1910s Skinner or a 1930s Casavant, we have given this instrument an opus number in our body of work. To be sure, the completed instrument does, in certain instances, reveal its parentage, but the overall ensemble has as much in common with all-new organs constructed by Quimby Pipe Organs as it does either Casavant or Skinner. This is no mere restoration of an artifact or the assemblage of collected parts; rather, this organ has been conceptualized to be musically communicative, inspiring, and above all, to support the music ministry and worship cycles of Dunwoody United Methodist Church in the broadest, most flexible way possible; an instrument that offers options, rather than limitations. In this regard, Opus 76 is an original creation—a testimony of our own time; one that we hope will remain timelessly relevant for generations to come.

—T. Daniel Hancock, A.I.A., President

Quimby Pipe Organs, Inc.

GREAT (Manual II, enclosed, 17 ranks, flues 6″ w. p., reeds 10″ w. p.)

16′ Violone (a & b) 73 pipes

16′ Bourdon (Ped)

8′ Open Diapason (b) 61 pipes

8′ Harmonic Flute (a) 49 pipes, 1–12 fr 8′ Stopped Diapason

8′ Stopped Diapason 61 pipes

8′ Violoncello (ext 16′)

51⁄3′ Quint (MC) (b) 37 pipes

4′ Octave (b) 61 pipes

4′ Wald Flute (a) 61 pipes

2-2⁄3′ Twelfth (b) 61 pipes

2′ Fifteenth (b) 61 pipes

1-3⁄5′ Seventeenth (b) 61 pipes

1-1⁄3′ Mixture IV (b) 244 pipes

16′ Double Trumpet (b) 61 pipes

8′ Trumpet (b) 61 pipes

4′ Clarion (b) 61 pipes

8′ Tuba (Solo)

8′ Harmonic Trumpet (Ant)

Chimes (d) 25 tubes

Tremolo

Great to Great 16

Great Unison Off

Great to Great 4

SWELL (Manual III, enclosed, 24 ranks, flues 6″ w. p., reeds 10″ w. p.)

16′ Spitz Flute (b) 73 pipes

8′ Open Diapason (b) 61 pipes

8′ Chimney Flute 61 pipes

8′ Spitz Flute (ext 16′)

8′ Gamba (b) 61 pipes

8′ Voix Celeste (b) 61 pipes

8′ Flauto Dolce (b) 61 pipes

8′ Flute Celeste (TC) (b) 49 pipes

4′ Octave (b) 61 pipes

4′ Night Horn 61 pipes

4′ Salicet 61 pipes

2-2⁄3′ Nazard 61 pipes

2′ Fifteenth 61 pipes

2′ Flautina 61 pipes

1-3⁄5′ Tierce 61 pipes

2-2⁄3′ Mixture IV–V 281 pipes

16′ Contra Trumpet 61 pipes

16′ Contra Oboe (a & b) 73 pipes

8′ Trumpet (a) 61 pipes

8′ Oboe (ext 16′)

8′ Vox Humana (a) 61 pipes

4′ Clarion (a) 61 pipes

Tremolo

Swell to Swell 16

Swell Unison Off

Swell to Swell 4

CHOIR-POSITIVE (Manual I, enclosed, 20 ranks, 6″ w. p.)

16′ Contra Dulciana (a & c) 73 pipes

8′ Geigen Diapason 61 pipes

8′ Claribel Flute (b) 61 pipes

8′ Gedeckt (c)  61 pipes

8′ Erzähler (b)  61 pipes

8′ Erzähler Celeste (GG) (b) 54 pipes

8′ Dulciana (ext 16′)

8′ Unda Maris (TC) (c) 49 pipes

4′ Geigen Octave (b) 61 pipes

4′ Traverse Flute (b) 61 pipes

2-2⁄3′ Nazard (b) 61 pipes

2′ Harmonic Piccolo (a) 61 pipes

1-3⁄5′ Tierce (a) 61 pipes

1-1⁄7′ Septieme (a) 61 pipes

1-1⁄3′ Larigot 61 pipes

1′ Sifflute 61 pipes

1-1⁄3′ Mixture III–IV 190 pipes

8′ Clarinet (b) 61 pipes Tremolo

8′ Tuba (Solo)

8′ Harmonic Trumpet (Ant)

8′ French Horn (Solo)

8′ English Horn (Solo)

Chimes (Great)

Choir to Choir 16

Choir Unison Off

Choir to Choir 4

SOLO (Manual IV, enclosed, 12 ranks, 6″ w. p., Tuba 20″ w. p.)

8′ Stentorphone 49 pipes, 1–12 fr Pedal 16′ Diapason

8′ Doppel Flute 49 pipes, 1–12 fr Pedal 32′ Bourdon

8′ Gross Gamba (a) 61 pipes

8′ Gross Gamba Celeste (a) 61 pipes

8′ Dulcet II (a) 122 pipes

4′ Orchestral Flute 61 pipes

4′ Violin 61 pipes

8′ French Horn (b) 61 pipes

8′ English Horn (c) 61 pipes

8′ Orchestral Oboe (c) 61 pipes

Tremolo

16′ Ophicleide (ext 8′, 1–12 Ped Tbone)

8′ Tuba (a)   73 pipes

8′ Harmonic Trumpet (Ant)

8′ Tromba (Ped)

4′ Tuba Clarion (ext 8′)

Solo to Solo 16

Solo Unison Off

Solo to Solo 4

PEDAL (unenclosed, 10 ranks, flues 6″ w. p., reeds 10″ w. p.)

32′ Contra Bourdon (a) 73 pipes

16′ Open Metal Diapason 56 pipes

16′ Bourdon (ext 32′)

16′ Violone (Great)

16′ Spitz Flute (Swell)

16′ Contra Dulciana (Ch-Pos)

10-2⁄3′ Gross Quint (ext 16′ Open Diap)

8′ Octave (ext 16′)

8′ Bourdon (ext 32′)

8′ Violoncello (Great)

8′ Spitz Flute (Swell)

6-2⁄5′ Gross Tierce (a) 44 pipes

5-1⁄3′ Quint (ext 16′ Open Diap)

4-4⁄7′ Septieme (b) 32 pipes

4′ Super Octave (ext 16′)

4′ Solo Flute (a) 32 pipes

3-1⁄5′ Tierce (ext 62⁄5′ Gross Tierce)

2-2⁄3′ Mixture IV 124 pipes

32′ Contra Trombone (b) 85 pipes (enclosed with Great)

16′ Trombone (ext 32′)

16′ Double Trumpet (Great)

16′ Contra Trumpet (Swell)

16′ Contra Oboe (Swell)

8′ Tromba (ext 32′)

8′ Trumpet (Swell)

8′ Oboe (Swell)

4′ Tromba Clarion (ext 32′)

4′ Oboe (Swell)

8′ Tuba (Solo)

ANTIPHONAL (Manual IV, unenclosed in rear gallery, 15 ranks, 6″ w. p., Harmonic Trumpet 10″ w. p.)

8′ Open Diapason (a) 49 pipes, 1–12 fr Ant. Pedal 8′ Octave

8′ Concert Flute (a) 49 pipes, 1–12 fr 8′ Bourdon

8′ Bourdon (c) 61 pipes

8′ Gamba 61 pipes

8′ Voix Celeste (TC) 49 pipes

4′ Octave (a)   61 pipes

4′ Harmonic Flute (c)   61 pipes

2′ Fifteenth (a) 61 pipes

2′ Mixture III–V 244 pipes

8′ Trumpet     73 pipes

8′ Harmonic Trumpet (d) 61 pipes

Zimbelstern (d)

Antiphonal to Antiphonal 16

Antiphonal Unison Off

Antiphonal to Antiphonal 4

ANTIPHONAL PEDAL (unenclosed in gallery, 2 ranks, 6″ w. p.)

16′ Bourdon 44 pipes

8′ Octave (c) 44 pipes

8′ Bourdon (ext 16′)

4′ Super Octave (ext 8′)

16′ Posaune (ext Ant 8′ Trumpet)

8′ Trumpet (Ant)

8′ Harmonic Trumpet (Ant)

ORIGIN KEY

(a) ranks from 1913 Ernest M. Skinner Company Opus 195, formerly in Grace Chapin Hall, Williams College, Williamstown, Massachusetts.

(b) ranks from 1939 Casavant Frères Opus 1600, formerly in Immaculate Conception Seminary Chapel, Darlington, New Jersey.

(c) vintage Skinner ranks from QPO inventory.

(d) ranks and tuned percussions from 1972 Schantz Opus 1125, formerly in Dunwoody United Methodist Church, Dunwoody, Georgia.

All other ranks are either new by Quimby Pipe Organs, Inc., or from QPO inventory.

CONSOLE ACCESSORIES

INTER-MANUAL COUPLERS

Great to Pedal 8′, 4′

Swell to Pedal 8′, 4′

Choir-Positive to Pedal 8′, 4′

Solo to Pedal 8′, 4′

Antiphonal on Pedal 8′, 4′

Swell to Great16′, 8′, 4′

Choir-Positive to Great 16′, 8′, 4′

Solo on Great

Antiphonal on Great

Swell to Choir-Positive 16′, 8′, 4′

Solo on Choir-Positive

Great to Choir-Positive 8′

Pedal to Choir-Positive 8′

Manual Transfer

COMBINATION ACTION

General pistons 1–20 (thumb) and 1–10 (toe)

Great divisional pistons 1–8

Swell divisional pistons 1–8

Choir-Positive divisional pistons 1–8

Solo divisional pistons 1–8

Antiphonal divisional pistons 1–5

Pedal divisional pistons 1–5 (thumb), 1–8 (toe)

General Cancel Piston

Set Piston

Memory Level Up and Down pistons

Previous and Next pistons (5 each, thumb) and toe studs (1 each)

Transposer Up and Down pistons

General Crescendo pedal 60 positions, three adjustable and one standard

REVERSIBLES

Great to Pedal piston & toe paddle

Swell to Pedal piston & toe paddle

Choir-Positive to Pedal piston & toe paddle

Solo to Pedal piston & toe paddle

Swell to Great piston

Choir-Positive to Great piston

Swell to Choir piston

Antiphonal on Great piston

Antiphonal on Swell piston

Antiphonal on Choir piston

Antiphonal on Solo piston

Antiphonal on Pedal toe paddle

Pedal on Divisionals piston

32′ Contra Bourdon piston & toe paddle

32′ Contra Trombone piston & toe paddle

Sforzando I and II pistons & toe studs

Manual Transfer—piston & indicator light

Crescendo on Solo Expression piston & indicator light

EXPRESSION & CRESCENDO

Great Expression Pedal

Swell Expression Pedal

Choir-Positive & Solo Expression Pedal

Solo Expression & Crescendo Pedal

SUMMARY

Great 17

Swell 24

Choir-Positive 20

Solo 12

Antiphonal 15

Antiphonal Pedal   2

Pedal 10

Total 100 ranks

Photo credits, including cover (except where noted): Sandra Jausch, Vitamamans-Pictures

Quimby Pipe Organs, Inc., Warrensburg, Missouri; First United Methodist Church, Athens, Georgia

First United Methodist Church of Athens, Georgia, is home to the newest instrument by Quimby Pipe Organs, Inc., of Warrensburg, Missouri. The four-manual, 68-rank pipe organ, Opus 77, was created through the collaboration of Michael Quimby, president and tonal director, and T. Daniel Hancock, former president and designer, Quimby Pipe Organs; James F. Mellichamp, president and professor of music, Piedmont College, Athens, Georgia, consultant; Stephen Mitchell, director of music; and Janis Maxwell, organist.

The instrument is designed primarily to fulfill its first job of leading worship and then to serve a variety of musical functions. The tonal design is not intended to copy any one particular school or period of organbuilding; however, Michael Quimby does draw his inspiration from the great builders of the past, such as Aristide Cavaillé-Coll, Father Willis, Ernest M. Skinner, and the Aeolian-Skinner Organ Company, as well as renowned English organbuilder T. C. Lewis, among many others. His goal is to build an instrument with its own identity and character that will embrace the needs of the client and to provide an instrument that not only serves as a recital instrument but can also be used in the wide variety of musical genres found in the worship practices of the twenty-first century.

The tonal concept of this instrument was carefully conceived and notably avoids the redundancies that are often found in large organs. Each stop is designed and voiced to provide sounds that not only work well within the ensemble but are also intriguing and beautiful on their own, making the organ tonally diverse, while at the same time cohesive and easy to register.

The instrument is unusual in a number of ways. First, it has four enclosed divisions. Second, the 32′ and 16′ Pedal reed stops and all other manual 16′ reeds are full length. Third, the instrument contains certain features of the symphonic style of organ that were sought after in the late nineteenth and early twentieth centuries. Michael Quimby and his team have striven to play a leading role in reviving and developing this style of building over the last two decades. Fourth, departing from the symphonic tradition, each division of the instrument, excluding the Solo, contains a completely developed Diapason chorus. This has proven to increase the versatility of the instrument in classical, romantic, and symphonic styles of music. One thing that sets these Diapason chorus ranks apart is the unusual use of substantial metal thicknesses incorporating antimony and trace elements for stability. Over the last twenty-five years Quimby Pipe Organs has discovered that using thicker metal allows the pipework to be voiced to its full potential—for stability in pipe speech and achieving the optimum in harmonic development.

Another feature is the chorus of trumpets and orchestral reeds, including the Tuba, French Horn, Oboe, English Horn, and Corno di Bassetto, all voiced by head reed voicer, Eric Johnson. Of particular interest are two contrasting solo reeds, the Tuba in the Solo division and the Hooded Trumpet in the Antiphonal division, voiced on twenty inches wind pressure and ten inches wind pressure, respectively. Over his many years of study Eric has developed a technique and sound that sets him apart as one of the premier reed voicers in the world today.

Mechanically, Quimby instruments feature the use of our version of the Blackinton slider windchest, distinguished by a pneumatic pallet design and absence of slider seals, allowing for the flue pipes in each division to speak without the “explosive attack” experienced by individual valves since each note shares a common note channel with the other ranks. The reed ranks, Solo, Pedal, and offset pipes are on electro-pneumatic, pouch-style windchests.

As with most instruments, the console is seen as the crown jewel of the installation. Made of solid mahogany, in the Aeolian-Skinner style, with walnut drawknob jambs, coupler rails, and accents, the console incorporates the Virtuoso control system, provided by Integrated Organ Technologies of Alpharetta, Georgia. The solid mahogany case, designed by T. Daniel Hancock, and built by Southern Elegance Custom Cabinetry of Crawford, Georgia, incorporates design features from both the existing grillwork and the sanctuary, achieving an aesthetically elegant display. Located in the twin chancel façades are notes 1–21 of the Great 16′ Double Open Diapason and notes 1–12 of the Pedal 8′ Octave.

It is with great gratitude that Quimby Pipe Organs wishes to thank all of those at First Methodist who made their stay in Athens an enjoyable one: Chuck Hodges, senior pastor; Dave Walton, business administrator; Bob Winstead, executive director of administration and project manager; Steven Mitchell, director of music; Janis Maxwell, director of youth music; Ron Young, facilities manager; and all those in the congregation who showed the love of Christ by supplying treats and meals throughout the installation.

On Sunday, August 1, Joe Russell, a student of both Alan Morrison of the Curtis Institute of Music and Ken Cowan of Rice University, began his tenure as associate director of music ministries and organist. Bradley Welch played the inaugural recital on Sunday, August 29, after a one-year delay due to Covid restrictions. The recital was live-streamed and is available on the church’s website: athensfirstumc.org/.

Current associates of Quimby Pipe Organs, Inc., who took part in the construction and installation of this instrument include Michael Quimby, Eric Johnson, Chris Emerson, Dan Sliger, Brian Seever, Chuck Ford, Chirt Touch, Anthony Soun, Bailey Tucker, Mahoney Soun, Joseph Nielsen, Kevin Kissinger, Ruth Anne Parrott, Dwight Parrott, Joe Lambarena, and Jim Schmidt.

—Chris Emerson, Administrative Assistant, and Daniel Sliger, Project Lead



Builder’s website: quimbypipeorgans.com/

Church’s website: athensfirstumc.org/



Cover photo: Chris Emerson

Other photos: Chris Emerson and Daniel Sliger



Quimby Pipe Organs, Inc.

208 Marshall Street, P. O. Box 434

Warrensburg, MO 64093

GREAT–Manual II, unenclosed

16′ Double Open Diapason 61 pipes

8′ Open Diapason 61 pipes

8′ Hohl Flute 61 pipes

8′ Violoncello 61 pipes

4′ Octave 61 pipes

4′ Stopped Flute 61 pipes

2-2⁄3′ Twelfth 61 pipes

2′ Fifteenth 61 pipes

1-3⁄5′ Seventeenth 61 pipes

1-1⁄3′ Mixture IV 244 pipes

16′ Double Trumpet (Swell)

8′ Trumpet 61 pipes

8′ Tuba (Solo)

8′ Tromba (Pedal)

8′ Hooded Trumpet (Antiphonal)

Chimes 25 tubes

Great to Great 16-UO-4

SWELL–Manual III, enclosed

16′ Contra Gamba 73 pipes

8′ Open Diapason 61 pipes

8′ Stopped Diapason 61 pipes

8′ Viola da Gamba (ext 16′ Contra Gamba)

8′ Voix Celeste (CC) 61 pipes

4′ Octave 61 pipes

4′ Harmonic Flute 61 pipes

2′ Super Octave (from Mixture IV–V)

2′ Mixture IV–V 252 pipes

16′ Double Trumpet 61 pipes

8′ Trumpet 61 pipes

8′ Oboe 61 pipes

4′ Clarion 61 pipes

Tremolo

Swell to Swell 16-UO-4

CHOIR–Manual I, enclosed

16′ Gedeckt 73 pipes

8′ Geigen Diapason 61 pipes

8′ Chimney Flute (ext 16′ Gedeckt)

8′ Erzähler 61 pipes

8′ Erzähler Celeste (TC) 49 pipes

4′ Principal 61 pipes

4′ Night Horn 61 pipes

2-2⁄3′ Nazard 61 pipes

2′ Flageolet 61 pipes

1-3⁄5′ Tierce 61 pipes

1′ Mixture III–IV 191 pipes

16′ Contra Fagotto 73 pipes

8′ Fagotto (ext 16′ Contra Fagotto)

Tremolo

8′ Corno di Bassetto (Solo)

8′ Tuba (Solo)

8′ Hooded Trumpet (Antiphonal)

Choir to Choir 16-UO-4

SOLO–Manual IV, enclosed

8′ Harmonic Flute 61 pipes

8′ Gamba 61 pipes

8′ Gamba Celeste 61 pipes

8′ Corno di Bassetto 61 pipes

8′ English Horn (GG) 56 pipes

8′ French Horn 61 pipes

Tremolo

16′ Double Trumpet (Swell)

16′ Contra Fagotto (Choir)

8′ Fagotto (Choir)

8′ Tuba 61 pipes

8′ Tromba (Pedal)

8′ Hooded Trumpet (Antiphonal)

Solo to Solo 16-UO-4

Chimes (Great)

ANTIPHONAL–Manual IV, enclosed

8′ Open Diapason 61 pipes

8′ Lieblich Gedeckt 61 pipes

8′ Flauto Dolce 61 pipes

8′ Flute Celeste (TC) 49 pipes

4′ Octave 61 pipes

2′ Fifteenth 61 pipes

Tremolo

8′ Hooded Trumpet 61 pipes

8′ Tuba (Solo)

Antiphonal to Antiphonal 16-UO-4

PEDAL–10 ranks, unenclosed

32′ Double Open Wood Diapason (Resultant, 10-2⁄3′ stopped pipes and 16′ Open Wood) 12 pipes

32′ Contra Bourdon 56 pipes

16′ Open Wood Diapason 44 pipes

16′ Open Metal Diapason (Great)

16′ Bourdon (ext 32′ Contra Bourdon)

16′ Violone 44 pipes

16′ Gedeckt (Choir)

16′ Contra Gamba (Swell)

8′ Open Bass (ext 16′ Open Wood)

8′ Octave 44 pipes

8′ Bourdon (ext 32′ Contra Bourdon)

8′ Violone (ext 16′ Violone)

8′ Erzähler (Choir)

8′ Gedeckt (Choir)

4′ Super Octave (ext 8′ Octave)

4′ Solo Flute 32 pipes

2-2⁄3′ Grave Mixture II 64 pipes

1-1⁄3′ Sharp Mixture II 64 pipes

32′ Contra Trombone 85 pipes

32′ Harmonics VII (derived)

16′ Trombone (ext 32′ Contra Trombone)

16′ Double Trumpet (Swell)

16′ Contra Fagotto (Choir)

8′ Trombone (ext 32′ Contra Trombone)

8′ Trumpet (Swell)

8′ Fagotto (Choir)

8′ Oboe (Swell)

8′ Clarion (ext 32′ Contra Trombone)

8′ Fagotto (Choir)

8′ Tuba (Solo)

ANTIPHONAL PEDAL–1 rank, enclosed

16′ Bourdon 44 pipes

8′ Octave (Antiphonal 8′ Open Diap)

8′ Bourdon (ext 16′ Bourdon)



Couplers

Great to Pedal 8

Great to Pedal 4

Swell to Pedal 8

Swell to Pedal 4

Choir to Pedal 8

Choir to Pedal 4

Solo to Pedal 8

Solo to Pedal 4

Antiphonal on Pedal 8

Swell to Great 16

Swell to Great 8

Swell to Great 4

Choir to Great 16

Choir to Great 8

Choir to Great 4

Solo to Great 16

Solo to Great 8

Solo to Great 4

Antiphonal on Great 8

Swell to Choir 16

Swell to Choir 8

Swell to Choir 4

Solo to Choir 16

Solo to Choir 8

Solo to Choir 4

Great to Choir 8

Pedal to Choir 8

Antiphonal on Choir 8

Solo to Swell 16

Solo to Swell 8

Solo to Swell 4

All Swells to Swell

Combination Action

Great Organ divisional pistons 1–8

Swell Organ divisional pistons 1–8

Choir Organ divisional pistons 1–8

Solo Organ divisional pistons 1–8

Antiphonal Organ divisional pistons 1–8

Pedal Organ divisional pistons 1–8 and 1–8 toe studs

General Pistons 1–12 (duplicated on toe studs) and 13–18 pistons only

Next Piston Sequencer: 3 pistons and 1 toe stud

Previous Piston Sequencer: 3 pistons and 1 toe stud

Set Piston

General Cancel Piston

Crescendo & Expression

General Crescendo pedal, 60 positions, three adjustable and one standard

Swell expression pedal

Choir expression pedal

Solo expression pedal

Antiphonal expression pedal

Reversibles

Great to Pedal - thumb and toe paddle

Swell to Pedal - thumb and toe paddle

Choir to Pedal - thumb and toe paddle

Solo to Pedal - thumb and toe paddle

Swell to Great - thumb and toe paddle

Choir to Great - thumb

Swell to Choir - thumb

32′ Contra Bourdon - thumb and toe paddle

32′ Contra Trombone - thumb and toe paddle

Sforzando - thumb and toe paddle

Manual Transfer - thumb and indicator light

Summary

Great Organ 14 ranks

Swell Organ 15

Choir Organ 14

Solo Organ 7

Antiphonal Organ 7

Pedal Organ 10

Antiphonal Pedal Organ 1



Total number of ranks 68

Total stops 97

Total pipes 3,867
